| Prod Model: |
MPO |
| Attenuation: |
1~20dB |
| Mode: |
Female-Male |
| Housing Material: |
Plastic |
| DB: |
Customized |
| Size: |
80*11.3*8.1(mm) |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MPO |
| Brand: |
Koc |
Product Description
Product Description
Description

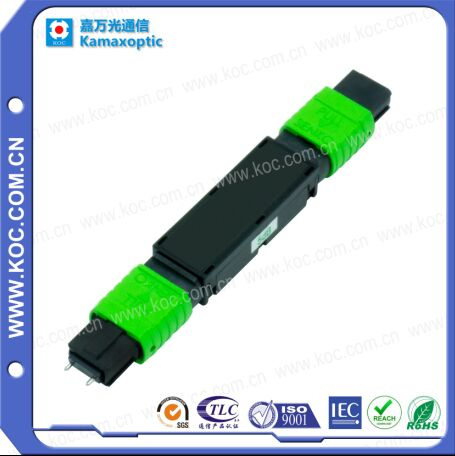

MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network's composition more concise than those of conservative way which is the connection method of attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS
Features
High Stability and High Durability
Compact Housing Dimension
QSFP Available (Option of female/mate type of MPO connector)
RoHS Compliant
Applications
Data Center Infrastructure
Storage Area Network and Fiber Channel
Various 40G and 100Gbps Protocols
Specifications
| Parameter | Conditions |
| Operation Wavelength | 1310/1550nm |
| Attenuation Tolerance | ±1dB( at 2-10dB), ±10%( at 11-20dB) |
| Return Loss | 60dB(8°Polishing, SM) |
| Operating Temperature | -25ºC~75ºC |
| Attenuation | 1~20dB |
| Housing Dimension | Height 8.1 mm/Length 80.0mm/Width 11.3mm |
Optical Attenuator
Plug Type Fixed attenuator
Brief Introduction
Plug-in type fixed attenuator is attached to a connector at one end and connects an adapter at the other end lts attenuation is fixed, unadjustable.
This fixed attenuator is mainly used to reduce optical power to target value in optical links lt comes in different types including SC,LC,FC,ST and MU Based on the shape of ferrule shape it can also be classified as PC and APC with 8 degrees type The products attenuation is in range of 0 to 30dB,which are all applicable for optical signal with wavelength ranging from 1,250nm to1,600nm.
Feature
1.High quality ceramic ferrule
2.Excellent IL and high return loss
3.Good exchangeability and durability
4.High temperature stability
5.All parts compliant with ROHS
6.Aompliant with Telcordia-GR-910-CORE.
Applications
1.Active device termination
2.Test equipment
3.Passive optical fiber network
4.Data processing network
5.Telecommunication network
6.CATV, LAN, WAN
Advantages:
Bellcore compliant
Wavelenght Independent
Durability(well over 100nw)
Simplex and reliable structure
Environmentally stable
SPECIFICATIONS
| ITEM | Parameter |
| Single-mode | Multi-mode |
| Test wavelength | 1310nm, 1550nm | 850nm |
| Return Loss | UPC≥50.0dB,APC≥60.0dB | ≥35.0dB |
| Bandwidth | 1250~1650nm |
| Insertion Loss range | 0~30dB |
| Attenuation tolerance value | 0~5dB,±0.5dB |
| 5~30dB,±10% |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB typical change,1000 mating |
| Optical power endurance | ≤200mW |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
