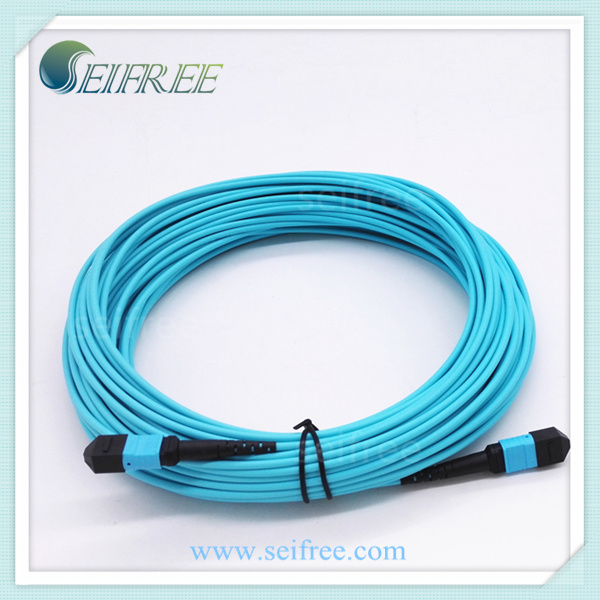

MPO MTP Fiber Optic Patch Cord Cable

Name: MPO MTP Fiber Optic Patch Cord Cable
Brand: all-electronics-online.com
SKU: 820684625
Availability: InStock
Rating: 4.3 (24 reviews)

Price:	US $ 20-100/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO Cable
Cable:	12 Fiber
Fiber Type:	Om3
Pigtail Diameter:	3.0mm
Jacket Type:	LSZH
Connector Type:	Female MPO to Male MPO
Polarity:	Straight (Key-up to Key-Down)
Ceramic Ferrule:	Upc or APC
Fan-out:	None
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	MPO
Sheath Material:	LSZH

Product Description

Description
1. Space-saving 12 fibers in a single connector
2. High density connections between network equipment in telecommunication rooms
3. Easy installation and removal with push-pull latching
4. Compact design for high fiber-count applications with space limitations
5. With 12-fiber and 24-fiber MPO/MTP connector standard
6. Available in OS1/2, OM2, OM3 and OM4
7. Available in FC,LC, SC, ST, MU, and MTP/MPO
8. Interface polished type has PC, UPC and APC
9. Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
10.100% factory tested
11. Discrete connectors are heat-cured and use ceramic ferrules and sleeves
12. Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
13. Customized for length, staggering, connector type, breakout type, fiber count, and labeling fiber

Polarity
Type A - Straight (key-up to key-down): Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.
Type B - Rollover (key-up to key-up): Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.
Type C - Flipped: Pair-Flipped polarity is the most commonly used polarity type for this cable, and typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. This is the default polarity option, but you can select your desired polarity from our drop-down menu above.

Specification

Parameter

Unit

Value

Connector

MTP/MPO

FC ST … SC LC

Ferrule

APC

UPC

APC(Step)

APC(Conical)

Fiber Type

Insertion Loss

<0.7

<0.5

<0.25

<0.20

<0.25

<0.20

<0.30

Repeatability

Time

>500

>1000

Interchangeability

<0.10

Return Loss

>36

>20

>45

>36

>50

>36

>60
