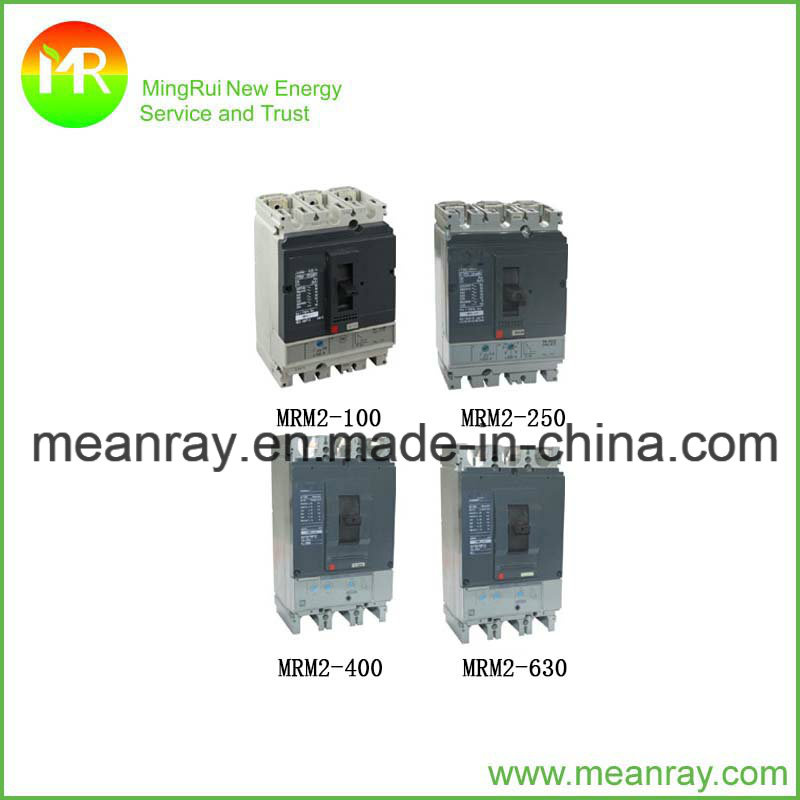

Mrm2 Series Moulded Case Circuit Breaker MCCB
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MRM2 |
| Product Name: |
Mrm2 Series Moulded Case Circuit Breaker |
| Insulation Voltag: |
up to 750V |
| Rated Voltage: |
690V or Below |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Certification: |
CE |
| Poles Number: |
3,4 |
Product Description
MRM2 Series Moulded Case Circuit Breaker MRM2 Series Moulded Case Circuit Breaker General:MRM2 series moulded case circuit breaker is one of breaker which adopts international advanced design,manufacture technology to develop.The rated insulating voltage is 750V,suitable for AC50Hz(60Hz),rated working voltage 690V or below,rated working current is 12.5A to 630A of circuit and used in distributing electric energy,and non-frequent breaking in the normal conditions,protecting the current & equipment from overload & under voltage,circuit breaker with rated frame current 400A or below,can be used in mousecage motor`s non-frequent start, breaking during working, protecting motor from voerload, short circuit & undervoltage, the product conforms to IEC 60947-2 standard.
MRM2 Series Moulded Case Circuit Breaker Specifications:| Type | Pole
number | Rated
insulating
voltage
(V) | Rated
opreating
voltage
(V) | | Servies
short circuit
breaking
capacity(KA) |
| Ultimate |
| short circuit |
| breaking |
| capacity(KA) |
| MRM2-100N | 3,4Pole | 750 | 690
and below | 25 | 25 |
| MRM2-100H | 70 | 70 |
| MRM2-100L | 150 | 150 |
| MRM2-160N | 36 | 36 |
| MRM2-160H | 70 | 70 |
| MRM2-160L | 150 | 150 |
| MRM2-250N | 36 | 36 |
| MRM2-250H | 70 | 70 |
| MRM2-250L | 150 | 150 |
| MRM2-400N | 45 | 45 |
| MRM2-400H | 70 | 70 |
| MRM2-400L | 150 | 150 |
| MRM2-630N | 45 | 45 |
| MRM2-630H | 70 | 70 |
| MRM2-630L | 150 | 150 |
Note:1. The N-pole breaker has no protection which closing and opening with the other three poles.
2. The type of thermal magneric for MRM2-400/630 has no four poles.Trip units main technical parameter
| Type | Rated current(A) | Note |
| MRM2-100 | 12.5,16,20,25,32,40,50,63,80,100 | T adjustable(0.8~1In)
M adjustable(5~10In) |
| MRM2-160 | 16,20,25,32,40,50,63,80,100,125,160 |
| MRM2-250 | 160,180,200,225,250 |
| MRM2-400 | 315,350,400 |
| MRM2-630 | 400,500,630 |
| MRM2-1250 | 800,1000,1250 | T adjustable(0.8~1In)
M fixed |
| MRM2-1600 | 1000,1250,1600 |
MRM2 Series Moulded Case Circuit Breaker Shipping:
