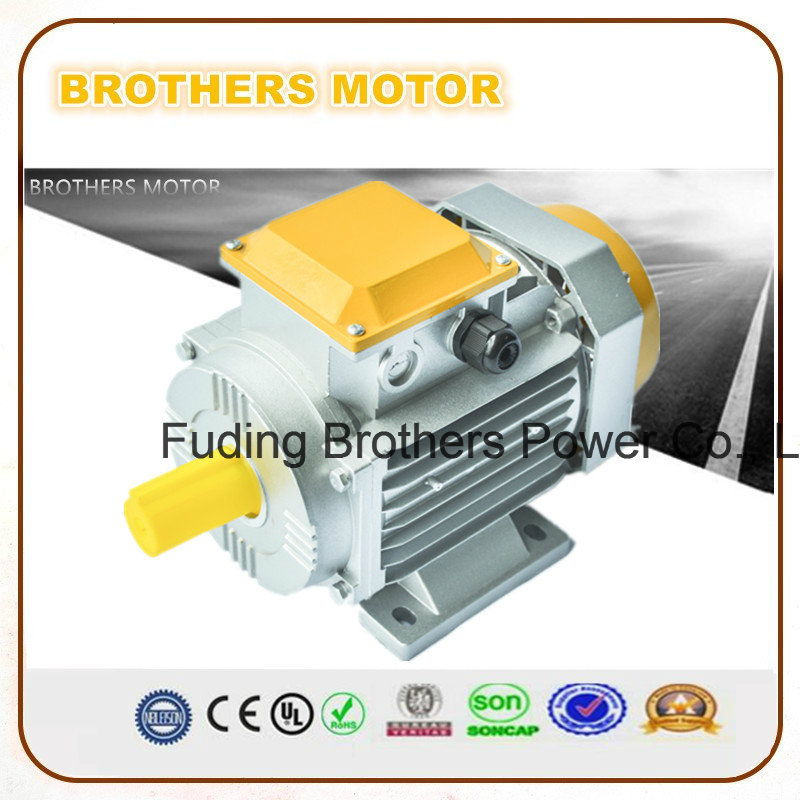

Ms Series Three Phase Induction AC Motor

Name: Ms Series Three Phase Induction AC Motor
Brand: all-electronics-online.com
SKU: 733719762
Availability: InStock
Rating: 4.7 (42 reviews)

Price:	US $ 11-1000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Type	Output		Current (A)	Power factor	Eff (%)	Speed (r/min)	Tstart/Tn	Ist/In	Tmax/Tn
Type	kW	HP	Current (A)	Power factor	Eff (%)	Speed (r/min)	Tstart/Tn	Ist/In	Tmax/Tn
MS561-2	0.09	0.12	0.3	0.76	60	2750	2.3	6	2.4
MS562-2	0.12	0.16	0.37	0.78	63	2750	2.3	6	2.4
MS631-2	0.18	0.24	0.53	0.8	65	2780	2.3	6	2.4
MS632-2	0.25	0.33	0.69	0.81	68	2780	2.3	6	2.4
MS711-2	0.37	0.5	0.99	0.81	70	2800	2.3	6	2.4
MS712-2	0.55	0.75	1.4	0.82	73	2800	2.3	6	2.4
MS801-2	0.75	1	1.83	0.83	75	2825	2.3	6	2.4
MS802-2	1.1	1.5	2.58	0.84	77	2825	2.3	6.5	2.4
MS90S-2	1.5	2	3.43	0.84	79	2840	2.3	6.5	2.4
MS90L-2	2.2	3	4.85	0.85	81	2840	2.3	6.5	2.4
MS100L-2	3	4	6.31	0.87	83	2880	2.3	7	2.4
MS112M-2	4	5.5	8.12	0.88	85	2890	2.3	7	2.4
MS132S1-2	5.5	7.5	11	0.88	86	2900	2.3	7	2.4
MS132S2-2	7.5	10	14.9	0.88	87	2900	2.3	7	2.4
MS160M1-2	11	15	21.3	0.89	88	2930	2.3	7	2.4
MS160M2-2	15	20	28.8	0.89	89	2930	2.3	7	2.4
MS160L-2	18.5	25	34.7	0.9	90	2930	2.3	7	2.4
MS561-4	0.06	0.08	0.27	0.68	50	1300	2.2	5.5	2.3
MS562-4	0.09	0.12	0.36	0.7	54	1300	2.2	5.5	2.3

Three phase, MS series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
- Superior finish - Externally Ventilated - Light weight construction
- Top mounted terminal box - IP55 Protection
- Interchangeable foot mounting and flange mounting - Motor frame Size form 56-160 - 2,4 and 6 pole

OPERATING CONDITIONS

Ambient temperature: -15°c~40°c
Above sea level: not exceed 1000m
Rated voltage: ±5%

Prod Model:	MS MOTOR
Application:	Power Tools
Operating Speed:	High Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Brand:	Brothers
Species:	Ms Series
Certification:	GOST

FUDING BROTHERS POWER Co., Ltd. A key enterprise of electric machinery territory, assembling exploitation, manufacture, marketing into one whole was established in 2006. To remain invincible in domestic and international competitions, We have to persist in our own principle. With manpower demand, pioneering innovation, consummate management, mutual benefit as enterprise's conception, with high quality, reasonable price, honesty and credit as our terminal goal.

With the development of business trade and great effort on research and improvement, we have formed the foundation-stone for the today's product range including three core product lines. They are specialized in producing A. C. Alternators, Diesel Generator sets, Electric Motors and spare part Carburetor. All of them adopted the topmost quality materials, updated designs and met the IEC standard.

The marketing target of reasonable price made us owning the comprehensive recognition and reliability from the wordwide customers. Our marketing shares are covering all over the world, such as South-East Asian, European Union, Poncho, Canada, America and Hong Kong.

Since the founding of FUDING BROTHERS POWER Co., Ltd, we have spared no effort to promote the common development and progress of business relationship for our sincere trade companions both at home and abroad.

Therefore, my esteemed Guests and Friends, we would always at your services and try our best for your esteemed order.
