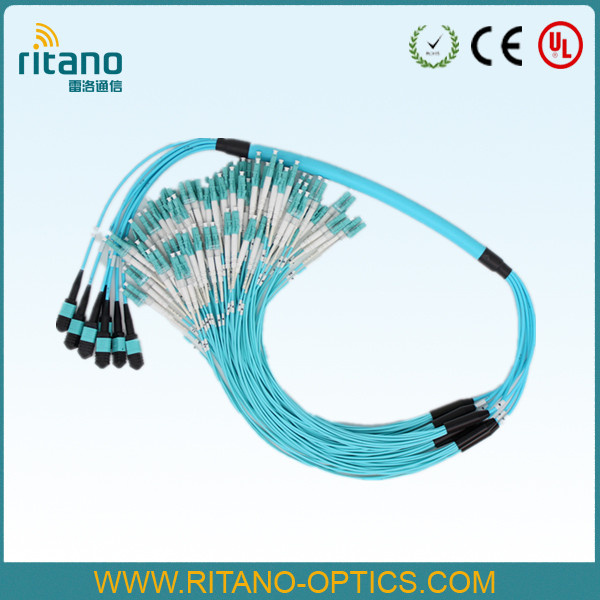

MTP/MPO-FC/St/LC/Sc/Mu/MTRJ/MPO/MTP Fiber Optic Fanout/Breakout Patch Cables for Density

MTP/MPO-FC/ST/LC/SC/MU/MTRJ/MPO/MTP Fiber Optic Fanout/Breakout Patch Cables for Density

Application:
* Local area network,including FTTH,FTTX and FTTD;
* CATV system;
* Telecommunication networks;
* Active device termination;
* Local Area Networks (LANs);
* Data processing networks;
* Test equipment;
* Premise installations;
* Wide Area Networks (WANs).
Features:
* Low insertion loss,high return loss;
* Good compatibility;
* High precision of mechanical dimensions;
* High reliability & stability;
* PC,SPC,UPC,APC optional,cable length optional;
* Single-mode cable:yellow, multi-mode cable:orange; optional available for other color.
Specifications:
* Insertion loss:≤0.2dB;
* Return loss:≥50dB(PC);
* Repeatable:0.1dB(1000);
* Temperature range:-40°~80ºC;
* Simplex/Duplex patch-cord available;
* Fan-out available;
* Pigtail available;
* Various boot (cable) sizes available.

	Single mode	Multimode
Insertion Loss(dB)	≤0.20dB	≤0.30dB
Return Loss(dB)	≥50 dB (PC), ≥60dB (APC)	≥40dB
Repeatability	≤0.1dB
Durability	≤0.2 dB typical change,1000 matings
Interchangeability	≤0.2dB
Tensile strength	>10kg
Operating Temperature	-40 to + 80°C	-40 to + 80°C

Connector type:FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4,SMA;
Ferrule End-face:PC,SPC,UPC,APC;
Core type:Single-mode(SM:9/125um),multi-mode(MM:50/125um or 62.5/125um);
Cable quantity:"1C"means one cores=simplex(SX);
Cable Diameter:3.0mm,2.4mm,2.0mm,1.8mm,1.6mm,0.9mm or customized;
Cable length:1,2,3meter or customized;
Cable type:PVC,LSZH,OM3,OFNR,OFNP.

What Ritano can offer:
* Quality always comes first;
* Standard quality tests check of all types of products before shipment;
* Responsible for after-sales service;
* Aiming to get repeat orders from 90% customer after the trial orders;
* Making progress with customers together.

Specifications subject to update without notice.


Our advantages:








FAQ:
1.What is our Promise?
RITANO is committed to providing the world's high quality Fiber Optic Communications Products at a competitive price while maintaining world-class service to all our customers.
2.What is our Service?
Every RITANO employee is dedicated to providing service that goes beyond the norm.
From doing special searches of hard to find items to the everyday tasks like answering the phones;we do it better,nicer,faster,all for your convenience and confidence in RITANO.

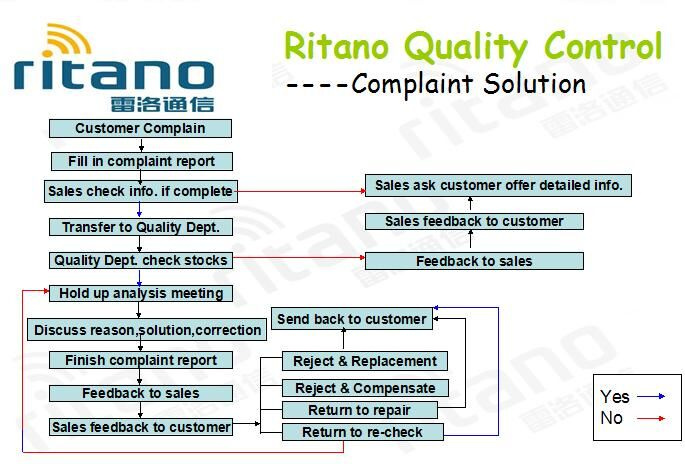

3.What is Ritano's Quality Control?
At RITANO,our standards are high,and this is reflected in the products material we carry from the most respected manufacturers in the world.

Marks: 1.APC with green boot; RITANO OPTICS's standard as follows(we can also make by customer's requests).

Connector  Type	SM/MM	Diameter	Simplex	Duplex	Marks
FC connector	SM	0.9mm	Blue boot	\	N/A
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Black boot	\
		2.0mm	Black boot	Red & Black boot
		3.0mm	Black boot	Red & Black boot
SC connector	SM	0.9mm	Blue boot	\	Duplex with clips
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Beige boot	\
		2.0mm	Beige boot	Red & Black boot
		3.0mm	Beige boot	Red & Black boot
LC connector	SM	0.9mm	White boot	\	Duplex with clips
		2.0mm	White boot	White boot
		3.0mm	White boot	White boot
	MM	0.9mm	Beige boot	\
		2.0mm	Beige boot	Beige boot
		3.0mm	Beige boot	Beige boot
ST connector	SM	0.9mm	Blue boot	\	N/A
		2.0mm	Blue boot	Blue & Yellow boot
		3.0mm	Blue boot	Blue & Yellow boot
	MM	0.9mm	Black boot	\
		2.0mm	Black boot	Red & Black boot
		3.0mm	Black boot	Red & Black boot

4.What is Ritano's Package & Shipping,Trade Terms?
Shipping:
1. FedEx/DHL/UPS/TNT/EMS express Door-Door service;
2. By Air or by Sea for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time:within1~2 days for samples;within3~5 days for Official order.
Payment Terms:
We require prepaid authorization to PayPal,Western Union(For Small Amount) L/C or T/T.To expedite your initial order you may wish to send payment by T/T or use a Paypal,after done,send us the bank copy for finance.
Package Information:
With Customized Neutral Stable Carton
(Size:54*39*34cm,42*37*42cm,51*15*15cm,39*20*26cm,34*23*17cm for Choose)
5.What is the Ritano's Returns and Repairs?
Any discrepancy or claims for damage must be made within 7 days after you received the goods.If shipment was via FedEx agent or a common carrier,properly note the damage on the shipping receipt,and immediately request an inspection. If your parcel appears to be lost,call and we will trace the shipment or re-ship as soon as possible.
All returns must be pre-authorized and clearly marked "returned goods" and returned within 10 days (customer is responsible for all return shipping costs).
All repairs or returns must be pre-arranged through RITANO's Customer Service Manager. Please do not return any goods without prior authorization,thanks in advance.
6.Can we get support if we have our own market position?
Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
7.What is Ritano can offer?
Quality always comes first;
Standard quality tests check of all types of products before shipment;
Responsible for after-sales service;
Aiming to get repeat orders from 90% customer after the trial orders;
Making progress with customers together.
Our Vision:
To be dedicated to service customers excellently in response to their needs and expectations.We are passionate about the customers and are working meet to their needs and expectation in providing telecommunication solution effectively and efficiently.
Our Strategy:
We wish to build long-term relationships with our valuable customers.With their support,we aim to maximize the potential of our business,through a combination of enhanced quality of service,creative marketing,innovative pricing and cost efficiency.
8.Why choose Ritano?
1.We are Alibaba Assessed 5 years Gold Supplier;
2.We are a ODM/OEM manufacturer,we can provide better production capability,better quality control,Faster delivery time,Better After-sales Service;
3.R&D Workshop: we are specialized in new products study,engineering drawings make,samples prepared and the small quantities working,there's around 32people,3engineers, working area around 1200square meters;
4.Powerful technical support;
5.100% QC inspection before shipment.
