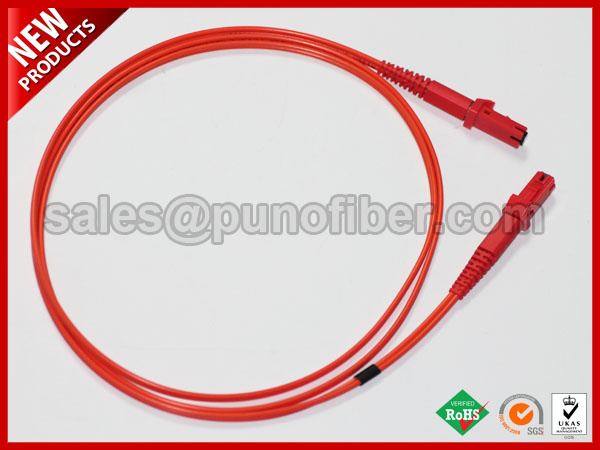

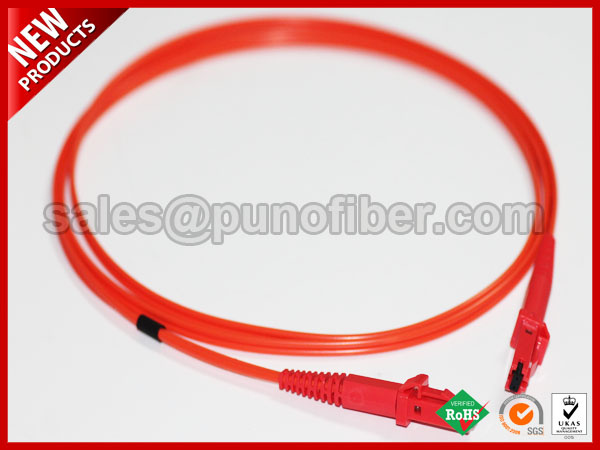

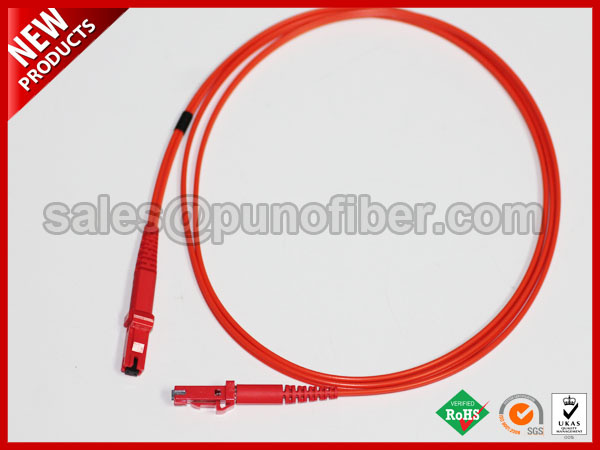

MTRJ to MTRJ Fiber Optic OM2 Multimode Patch Cord Zipcord Cable
| Price: |
US $ 0.3-7/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
MTRJ to MTRJ Fiber Optic OM2 Multimode Patch Cord Zipcord Cable
Technical Information:
PUNO Fiber Optic Patch Cords are used to interconnect networks switches, storage devices and fiber optic networks within a structured cabling system. Patch cords and pigtails feature advanced polishing and termination techniques and are 100% tested to industry leading insertion and return loss specifications. They are available with OM1, OM2, OM3, OM4, and OS2 fiber types, with LC, SC, ST, FC, and hybrid (mixed connectors) versions. LC patch cords are also available as a Uniboot assembly with a tool-less polarity switchable feature. Polarity changes can be made in the field in seconds. Stock and custom lengths are available for quick turnaround.
Application:
√ Telecommunication networks;
√ Data processing networks;
√ Metro applications;
√ Military, medical and industrial.
Features:
√ Strong, flexible and easy to install;
√ Ideal for indoor applications, thanks to the LSZH sheath;
√ Great mechanic resistance;
√ Totally dielectric;
√ Different cores are optional.Technical Polarity:
Specifications of Connector: | Fiber count | Simplex (1-fiber) tight buffered
Duplex (2-fiber) jacketed zipcord |
| Cable jacket ratings | Riser (OFNR)
Low Smoke Zero Halogen (LSZH) per: IEC
60332-1-2, IEC 60332-3-24, IEC 60754-1,
IEC 60754-2, IEC 61034-2 |
| Fiber types | Single-mode: OS2 (G.652.D) 9/125
LWP Bend-Insensitive (G.657.A2/B2) |
| Connector types end 'A' | Simplex or Duplex LC/APC, SC/APC |
| Connector type end 'B' | Simplex or Duplex LC/APC, SC/APC |
| Jacket color | OM3 10G: Aqua |
| Cable outside diameter (OD) | 1.6mm duplex and simplex
3mm duplex and simplex
900 micron tight buffered |
| Connector cable retention | 50N @ 0ºC
19.4N @ 90ºC |
| Connector durability | 500 cycles |
| Bend radius, minimum | 1.6mm: 16mm
3mm: 29mm
900 micron: 9mm |
Optical Properties: | Items | Unit | Specification |
| Cladding Non-Circularity | % | ≤2.0 |
| Coating Diameter | μm | 245±10 |
| Cladding-Coating Concentricity Error | μm | ≤1.0 |
| Core Diameter | μm | 62.5±2.5 |
| Cladding Diameter | μm | 125±1.0 |
| Cable Material |
| Outer sheath | LSZH (Red RAL 6027) |
| Outer sheath of single fiber | LSZH (Red RAL 6027) |
| Secondary sheath of single fiber | Nylon TIGHT |
| Strength member | Aramid Yarns |
| Fiber Type | MM‐62.6/125μm |
| Connector Type | MTRJ - MTRJ |
Certification and Compliance: | RoHS | Directive on Restriction of Hazardous Substances |
| GR-326-CORE | Generic Requirements for Single-mode Optical Connectors and Jumper Assemblies. Optical Fiber Cabling |
| TIA/EIA-568-C.3 | Components Standards |
| EIA/TIA-604 | Fiber Optic Connector Intermateability Standard |
| UL 94 | Our Third Party Tests for Flammability of Plastic Materials for Parts in Devices and appliances |
| Prod Model: |
PN-9857 |
| Color: |
Red |
| Cable Material: |
LSZH |
| Data Transimittion: |
10G |
| Connector: |
MTRJ-MTRJ |
| Polish Type: |
UPC |

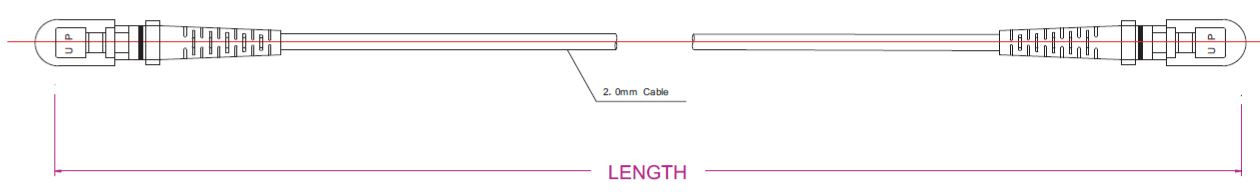

| Length: |
10FT |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
MTRJ |
| Certification: |
ISO9001 |
| Sheath Material: |
LSZH |
