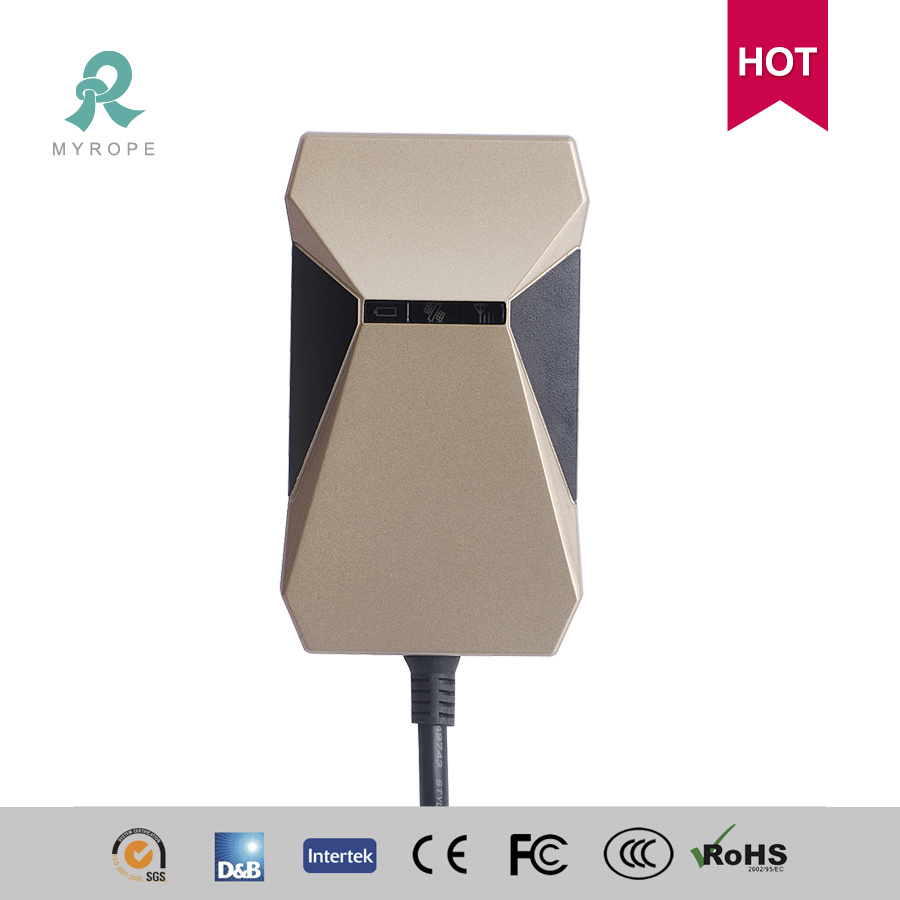

Multi Functional Locator GPS Tracker for Tracking Car Vehicle M588

Multi Functional Locator GPS Tracker for Tracking Car Vehicle M588
Price: Negotiable/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Multi functional Locator GPS Tracker for Tracking Car Vehicle M588


1. Functions
FunctionsReportsAlarms
Realtime gps locatingHistory playback reportSOS alarm
ACC detectionDriving records reportGeo-fence alarm
Cut off engine remotelyVehicle mileage reportOver-speed alarm
Voice  MonitoringAlarm records reportPower-off alarm
Resend data from signal blind areaParking reportfatigue driving alarm

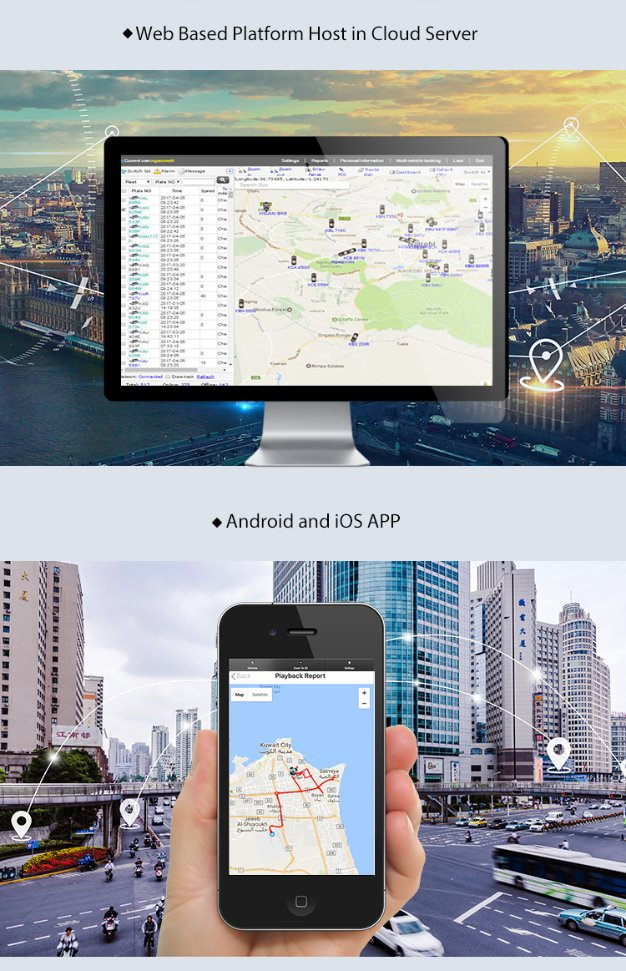

Track on Mobile Phone APPRunnin trip reportMoving alarm
Track via interval Idling Alarm
  Illegal door alarm

2. Specifications
ItemsParameters
GSM ModuleQuectel M35
GSM Frequency850/900/1800/1900 MHZ
LBS Positioning Accuracy100-500m
GSM AntennaBuilt-in
GPS ChipsetU-blox 7020
GPS Sensitivity-159 dBm
GPS FrequencyL1, 1575.42 MHZ
Channels20 channels examine track
GPS Positioning Accuracy5-10m, 2D RMS
GPS AntennaBuilt-in
Speed Accuracy0.1m/s
Time AccuracySynchronize with GPS
GPS DataWGS-84
Hot Start<1s
Warm Start<38s
Max Altitude18000m
Max Speed515m/s
Gravity Acceleration<4g
Working Voltage8VDC~50VDC
Working Current50mA~160mA
Operating Temperature-20ºC-70ºC
Humidity5%-95%
Size96mm × 52mm × 19mm
SimcardNormal simcard
BatteryRechargeable lithium polymer battery 260mAh
Internal battery Standby>2h










Prod Model: M588
Gross Weight: 0.5kg
Warranty: 12 Months
Valid Time: 30 Days
GSM Module: Quectel M35
GSM Frequency: 850/900/1800/1900 MHz
Lbs Positioning Accuracy: 100-500m
GPS/GSM Antenna: Built-in
GPS Sensitivity: -159 dBm
Battery: Rechargeable Lithium Polymer Battery 260mAh
Internal Battery Standby: >2h
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.

Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.

With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.

We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
