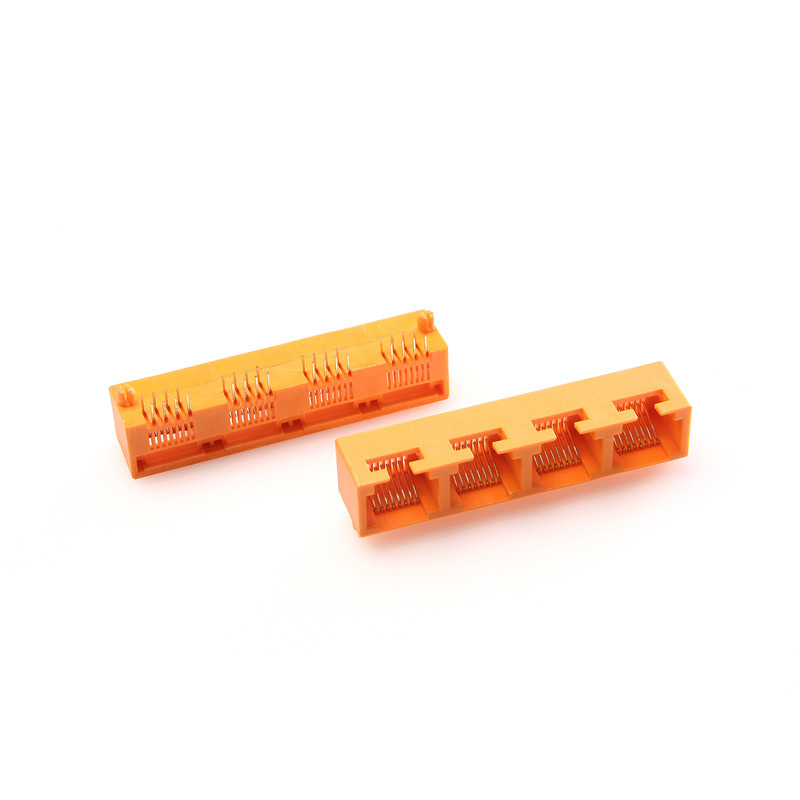

Multi-Ports 1X4 Side Entry Profile File RJ45 PCB Connector

Name: Multi-Ports 1X4 Side Entry Profile File RJ45 PCB Connector
Brand: all-electronics-online.com
SKU: 838608485
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 0.08-0.3/Piece
Min Order:	10000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Description:
Multi-ports Side entry 8P Tab up RJ45 connector ,1X4 port unshield low profile RJ45 Modular PCB Jack.

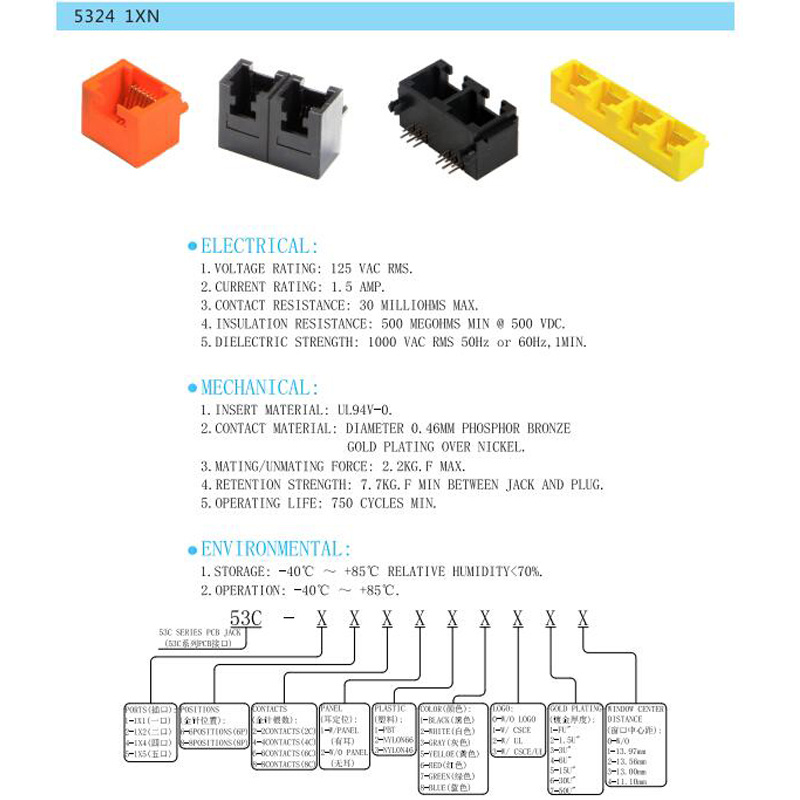

Specification:

RJ45 Connector specifications:
Application - LAN	ETHERNET
Gender	Jack
No. of Ports	1X4
Number of position	8
Number of contacts	2,4, 6,8
Housing	PBT(UL94-V0),PA66(UL94-V0),PA46 (UL94-V0)
Contact Material	0.45mm phosphor bronze gold plating over nickel
Shielding housing	0.20-025mm thickness brass with nickel plated
Shield EMI Tabs
LED	No
Gold Plating	Gold Flash,3u",6u",15u",30u" or 50u" or others
PCB Mount Angle	Side entry
Insertion Force	2.2KG.F max
Retention Strength	7.7KG.F min between jack and plug
Durability	750 mating cycles min
Working Temperature	-40°C~+70°C
Storage Temperature	-10°C~+40°C Relative Humidity
RoHS Compliant	Yes
Electrical:
Current Rating	1.5 Amps
Voltage Rating	125VAC
Insulation Resistance	500 MΩmin
Contact Resistance	30 mΩmax
Withstanding Voltage	AC 1000V RMS 50Hz or 60Hz 1 min
RJ45 connector Application:
Laptop	Telephone
Hub	Router
Printer	Broadband Switche
Server	Fitness Equipment
LCD and TV panel	Point of Sales Terminal
Set Top Box	Vending Machines
Surge protector	Television
Telecom box ATM Machine	Home Security
Security System	Copier
Video DVD product

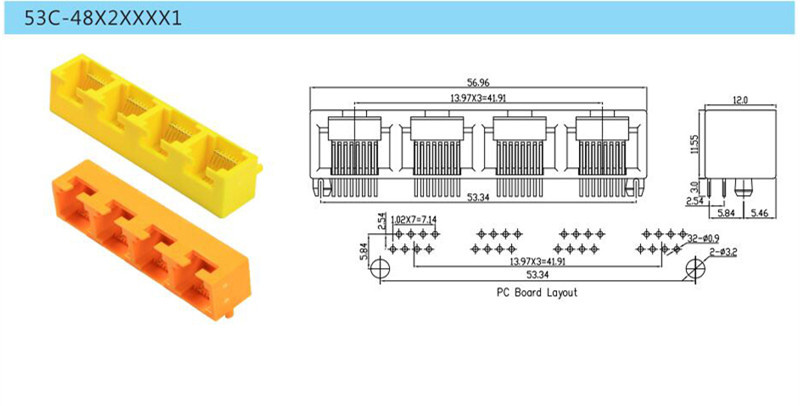

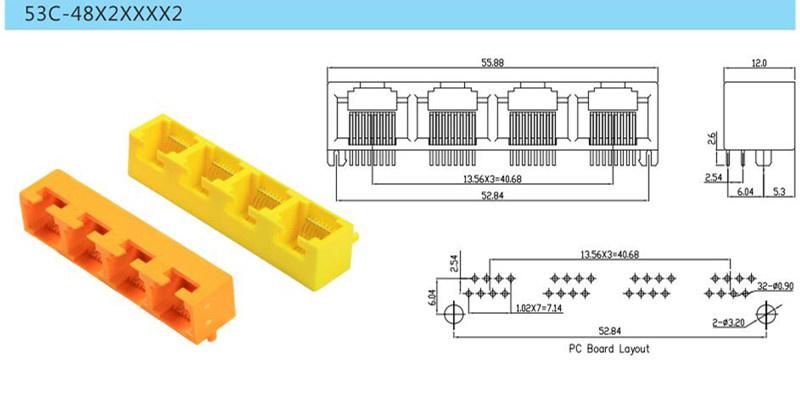

Prod Model:	5324-8P8C-1X4

Established in Mar. 2005, Yueqing Shichuang Electronics Co., Ltd is a high-tech enterprise that specializes in the development, design, production and sale of communication network connectors. The main products include RJ45, RJ11, RJ45+TRANSFORMER, LAN-Transformer, USB, DC, HDMI, SFP, PIN Header, Female Header, SATA etc., The company acquired the ISO9001-2000 quality management system certification, ISO14001 environmental management system and UL certification.

Our company have the factory in YueQing, Shenzheng and JiangXi, with total plant area of 18, 000m2, and has over 500 employees. We have a strong R&D ability for new product, equipment and manufacturing ability for mould. Meanwhile, advanced production equipment and quality testing equipment, to make our products with reliable quality, competitive price, and in time delivery well-selling in both domestic and foreign markets, such as southeast Asia, Europe, America, Middle East etc. With our effort, we built our own famous brand-CSCE and become world famous company's qualified suppliers, such as Hisense, Skyworth, T&W, HGTECH, JEZETEK, CIG, TwoWing, HUAWEI, TCL, FOXCONN, TENDA, Panasonic, NEC, HUMAX and so on...

The company insists on the quality policy of "people-foremost, Customer-oriented, Continuous Improvement, lasting management". And take the business theory of "take the market as the guidance, take the talented person as the cornerstone, take the technology as the core, take the quality as the life". To provide the best service for ourcustomers.
