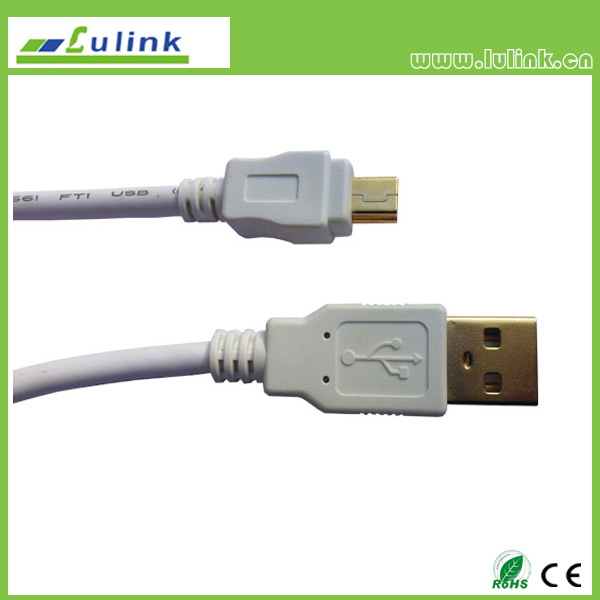

LK-USBCB001
Specifications :
Usb2.0 cable
USB "A" MALE TO MINI USB 5PIN MALE
Connector : Nickel or Gold plated
Conductor: Copper
Color: White
PVC molding
Cable Specification:
UL2725 24AWG*2C+28AWG*1P+AL+1+B(16*2/0.10TCCA) OD:4.5MM

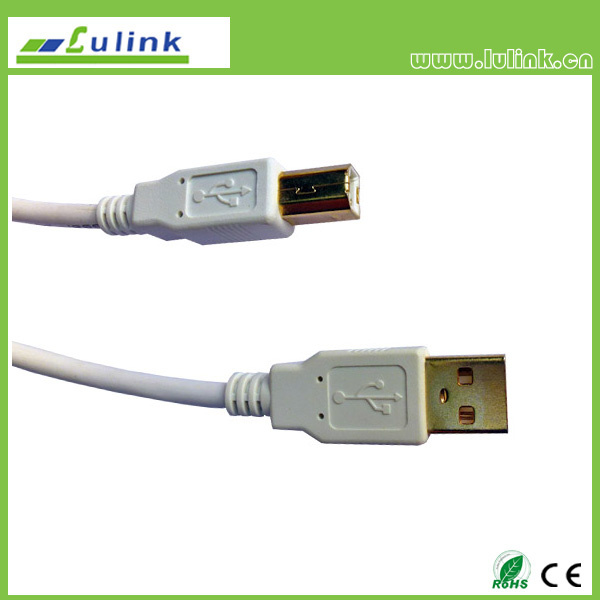

LK-USBCB002
Specifications :
Usb2.0 cable
USB "A" MALE TO USB "B" MALE
Connector : Nickel or Gold plated
Conductor: Copper
Color: White
PVC molding;
Cable Specification:
UL2725 24AWG*2C+28AWG*1P+AL+1+B(16*2/0.10TCCA) OD:4.5MM

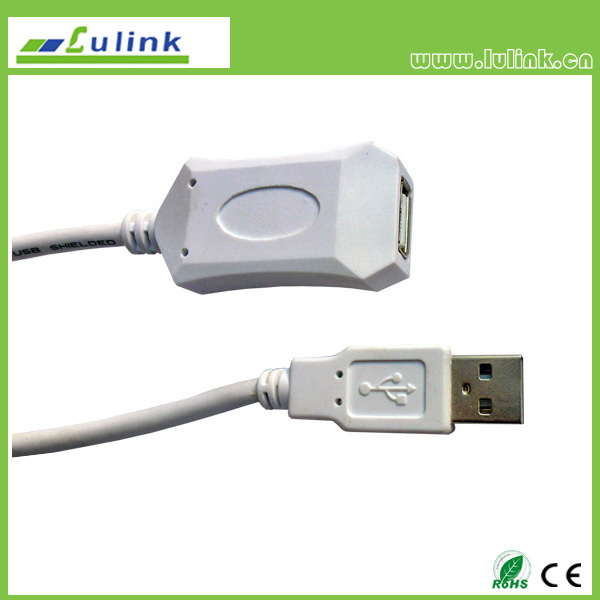

LK-USBCB003
Specifications :
USB 2.0 Extension Cable
USB "A" MALE TO USB FEMALE
Connector : Nickel or Gold plated
Conductor: Tinned Copper
Color: White
PVC molding;
Cable Specification:
UL2725 (20AWGx2C+28AWGx1P)+D+80B+PVC+ GL850 IC; OD: 5.0MM
Length:5M
LK-USBCB004
Specifications :
USB3.0 Cable
USB 3.0 A TYPE MALE
SOLDER TYPE, BLUE INSULATION, GOLD PLATED 15μ"CONTACTS, SHELL NICKEL PLATED
Conductor: Copper
Cable Color: Blue
BLUE(WY-701)PVC JACKET
Shell casing Color : Blue,Red,Gold,Silver for choice
MUST BE MARKED:"USB 3.0"
Cable Specification:
CABLE:UL 2725 USB3.0 CABLE, [28#×1PR(GREEN, WHITE)+24#×2C(RED,BALCK)+ (28#*1P+DRAIN+AL FOIL+MYLAR)*2(YELLOW, BLUE; ORANG, PURPLE)]+AL FOIL+BRAID
OD: 5.5+/-0.15mm

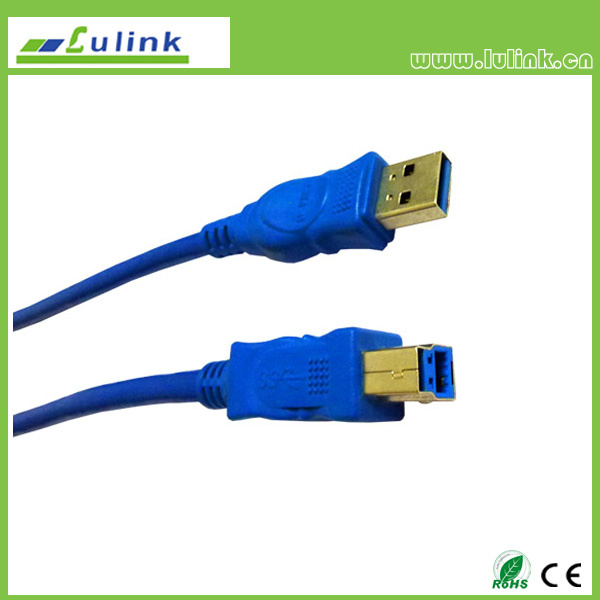

LK-USBCB005
Specifications :
USB3.0 Cable
USB 3.0 AM TO BM
Connector : Nickel or Gold plated
Conductor: Copper
Cable Color: Blue
Blue PVC molding
Cable Specification:
CABLE: UL2725(28#*1P+D+AL+MYLAR)*2+28#*1P+24#*2C+AB
OD: 5.5mm

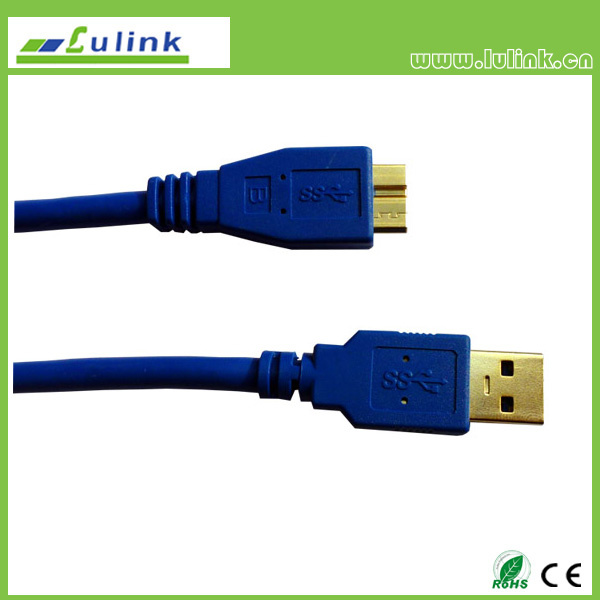

LK-USBCB006
Specifications :
USB3.0 Cable
USB 3.0 AM TO Micro B
Connector : Nickel or Gold plated
Conductor: Copper
Cable Color: Blue
Blue PVC molding
Cable Specification:
CABLE: UL2725(28#*1P+D+AL+MYLAR)*2+28#*1P+24#*2C+AB
OD: 5.5mm

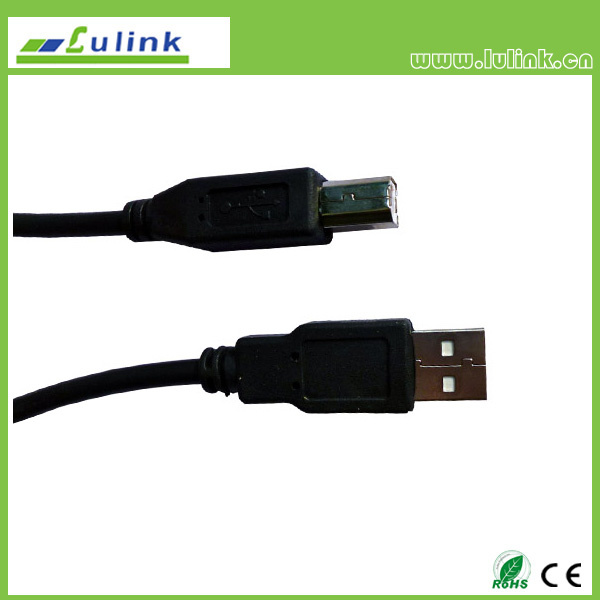

LK-USBCB007
Specifications :
Usb2.0 cable
USB "A" MALE TO USB "B" MALE
Connector : Nickel or Gold plated
Conductor: Copper
Color: Black
PVC molding;
Cable Specification:28#*1P+24#*2C+AEB
OD:4.5MM
LK-USBCB008
Specifications :
USB 2.0 Extension Cable
USB AM TO AF
Connector : Nickel or Gold plated
Conductor: Copper
Color: Black
PVC molding;
Cable Specification:28#*1P+24#*2C+AEB
OD:4.5MM
LK-USBCB009
Specifications :
USB 2.0 Extension Cable
USB AM TO AF
Connector : Nickel or Gold plated
Conductor: Copper
Color: Black
PVC molding,AF All Over Molded Type
Cable Specification:28#*1P+24#*2C+AEB
OD:4.5MM
LK-USBCB010
Specifications :
USB 2.0 Cable
Y type USB cable, USB AM to AM +USB MICRO 5PIN (70cm+20cm)long cable
Connector : Nickel or Gold plated
Conductor: Copper
Color: Black or Begie
PVC molding
Cable Specification:28#*1P+26#*2C+AL+D+96#
OD: :3.8MM ~4.5MM
LK-USBCB011
Specifications :
USB 2.0 Cable
USB AM TO Mini 5 pin
Connector : Nickel or Gold plated
Conductor: Copper
Color: Black
PVC molding
Cable Specification:28#*1P+28#*2C+D+AL+64#
OD:4.5MM
LK-USBCB012
Specifications :
USB 2.0 Cable
USB AM TO Mini 4 pin MALE
Connector : Nickel or Gold plated
Conductor: Copper
Color: Black or Beige
PVC molding
Cable Specification: 28AWG(7/0.12CCS)*1P+26AWG(7/0.16CCS)*2C+ 1+AL OD:3.8 or 4.0MM
LK-USBCB013
Specifications :
USB 2.0 Cable
USB AM TO Micro 5 pin MALE
Connector : Nickel or Gold plated
Conductor: Copper
Color: Black or Beige
PVC molding
Cable Specification: 28AWG(7/0.12CCS)*1P+28AWG(7/0.12CCS)*2C+ 1+AL
OD: 4.5MM
LK-USBCB014
Specifications :
USB 3.0 Extension Cable
USB 3.0 AM TO AF
Connector : Nickel or Gold plated
Conductor: Copper
Cable Color: Blue
Blue PVC molding
Cable Specification:
CABLE: UL2725(28#*1P+D+AL+MYLAR)*2+28#*1P+24#*2C+AB
OD: 5.5mm
LK-USBCB015
Specifications :
USB3.0 Cable
USB 3.0 AM TO AF
Connector : Nickel or Gold plated
Conductor: Copper
Cable Color: Blue
Blue PVC molding
Cable Specification:
CABLE: UL2725(28#*1P+D+AL+MYLAR)*2+28#*1P+24#*2C+AB
OD: 5.5mm

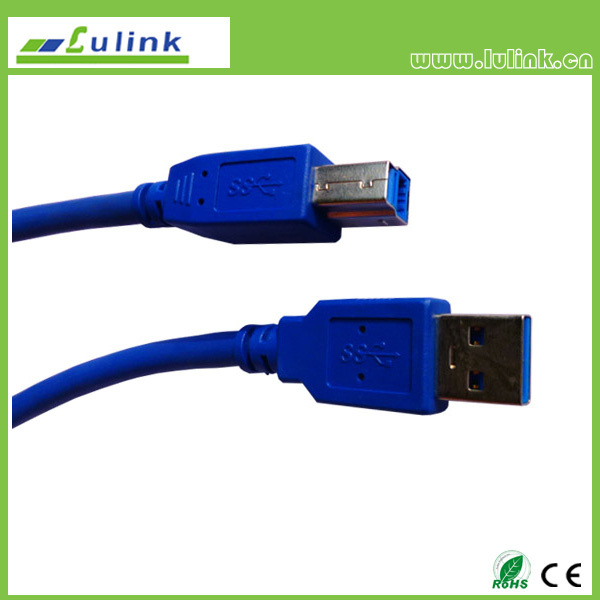

LK-USBCB016
Specifications :
USB3.0 Cable
USB 3.0 AM TO BM
Connector : Nickel or Gold plated
Conductor: Copper
Cable Color: Blue
Blue PVC molding
Cable Specification:
CABLE: UL2725(28#*1P+D+AL+MYLAR)*2+28#*1P+24#*2C+AB
OD: 5.5mm
Package:
Polybag, PE bag, blister
Electrical:
100% open & short test
HI-pot: DC 300v 10ms
Insulation Resistance:10MΩ /300V MIN
Contactivity: Resistance: 0.01Ω MAX
Working temperature: -25oC to +85oC
