Features:
1. High power green laser diode bank 520nm 8w
2. Nichia laser diode bank
3.Anti-Static Package type Multiple Nichia Anti-Static Package 520nm 8W Green Laser Diode Bank
Absolute Maximum Ratings (Tc = 25ºC)
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | If | 2.0 (individual LD) | A |
| Allowable Reverse Current | Ir(LD) | 85 (individual LD) | mA |
| Storage Temperature | Tstg | -40~85 | ºC |
| Operating Case Temperature | Tc | 0~65 | ºC |
Initial Electrical /Optical Characteristics of LD Bank (Tc=25ºC)
| Item | Condition | Symbol | Min | Typ. | Max | Unit |
| Optical Output Power | If=1.6A | Po | T.B.D. | (8.0) | - | W |
| Dominant Wavelength | If=1.6A | λd | 515 | (520) | 525 | nm |
| Beam Pointing Tilt Angle | If=1.6A | Δθ | - | - | 0.7 | deg |
| Operating voltage(8LDs series connection) | If=1.6A | Vop | 32 | (37) | 43 | V |
Initial Electrical /Optical Characteristics of Mounted LD (Tc=25ºC)
| Item | Condition | Symbol | Min | Typ. | Max | Unit |
| Optical Output Power | If=1.6A | Po | - | (1.0) | - | W |
| Dominant Wavelength | If=1.6A | λd | 510 | (520) | T.B.D. | nm |
| Threshold Current | CW | Ith | 150 | - | T.B.D. | mA |
| Slope Efficiency | CW | η | - | (0.7) | - | W/A |
| Operating Voltage | If=1.6A | Vop | 4.0 | - | T.B.D. | V |
| Beam Divergence | Parallel | If=1.6A | Θ// | - | (0.15) | 0.4 | ° |
| Perpendicular | θ⊥ | -0.8 | (0) | 0.8 | ° |
Welcome Your Inquiry
TO: Song Song
Mob: +86 13713250894
Dongguan BU Laser Co.,Ltd

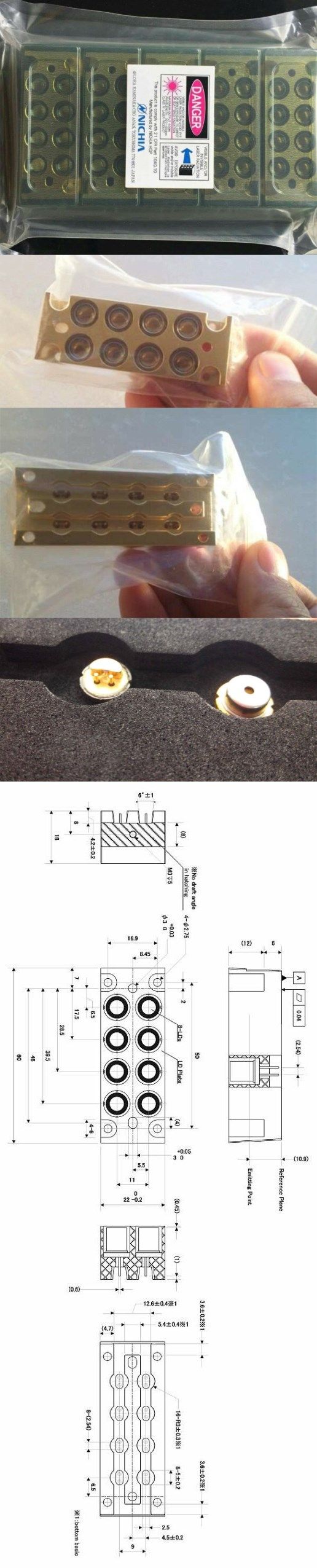

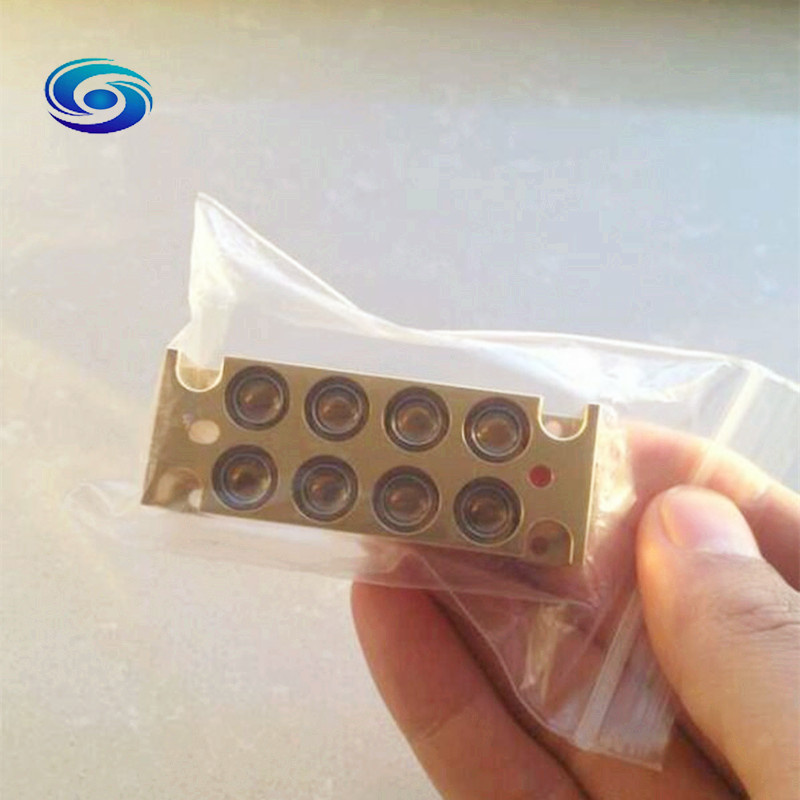

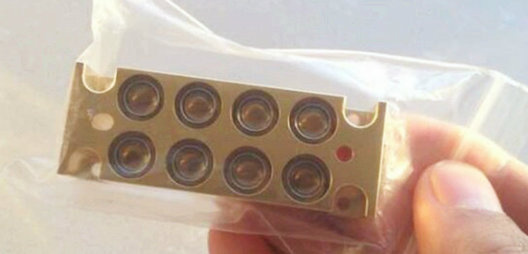

1. Nichia high power multiple laser diode (LD) bank NUGM01T.
2. 8 Collimator beams
3. No outgas
4. High heat dissipation
5. High safety stucture for prevention of removing LDs
