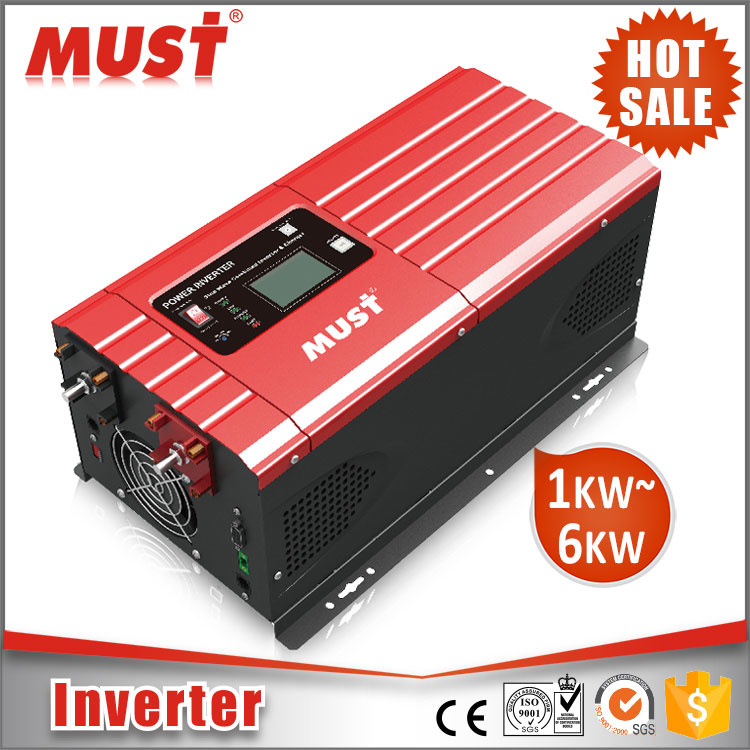

MUST 1-3KW PWM Low Frequency RS232 Port Power Inverter Model:EP3000 1-3KW
Features 1.12/24/48vdc input optional
2.Max.charge current 70A.
3.Pure sine wave inverter with inbuilt pure copper transformer
4.Pure sine wave output inverter
5.Intelligent three-stage batteryCharger
6.Power inverter with LCD status display
7.CE certification available
8.50hz/60hz automatic
9.Rs232 with free CD(optional)
10.Charge current adjustable
11.Battery priority function(optional)
12.1KW to 6KW
Specifications
| EP3000 Series Inverter 1KW-6KW Specification |
| MODEL | EP1012/1024 | EP1512/1524 | EP2012/2024 | EP3012/3024/3048 | EP4024/4048 | EP5024/5048 | EP6024/6048 |
| Rated Output Power (W) | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| LINE MODE SPECIFICATIONS |
| Input Voltage | 230Vac(120VAC selectable) |
| Input Frequency | 50Hz/60Hz (Auto detection) |
| Output Voltage Waveform | Pure sine wave |
| Over-Load Protection(SMPSload) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | >95% |
| Auto Transfer Relay | 30A | 40A |
| Transfer Time | 10ms (typical) |
| Pass through without Battery | Yes |
| Max Bypass Overload Current | 30A |
| INVERT MODE SPECIFICATIONS |
| Output Voltage Waveform | Pure sine wave |
| Power Factor | 1 |
| Output Voltage (V) | 230Vac/120 ±10% | 230Vac±10% |
| Output Frequency (Hz) | 50/60Hz ± 0.3Hz |
| Auto Tracking Main Frequency (Hz) | 50Hz @ 48-54Hz; 60Hz @ 58-64Hz |
| Output Voltage Regulation | ± 10% rms |
| Efficiency | > 80% |
| Over-Load Protection(SMPSload) | (110%150% ±10%; Fault (shutdown output) after 20s |
| Surge Rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000 VA |
| Capable Of Starting Electric Motor | 1 HP | 2 HP | 3 HP |
| Inverter Breaker Size | 10A | 30A | 40A |
| DC Input Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V/48V | 24V/48V | 24V/48V | 24V/48V |
| Min DC Start Voltage | 11V/22V/43V |
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc for 12V battery; 21.0Vdc ± 0.6Vdc for 24V battery; 42.0Vdc ± 0.6Vdc for 48V battery |
| Low DC input Shut-down | 10.0Vdc ± 0.3Vdc for 12V battery; 20.0vdc± 0.6Vdc for 24V battery; 40.0Vdc± 0.6Vdc for 48V battery |
| High DC input Alarm & Fault | 16Vdc ± 0.3Vdc for 12V battery; 32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery |
| High DC input Recovery | 15.5Vdc ± 0.3Vdc for 12V battery; 31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery |
| Power saver | Load ≤25W |
| CHARGE MODE SPECIFICATIONS |
| Input Voltage | 230Vac / 1200Vac |
| Input Voltage Range | 155-265Vac / 96-127Vac |
| Output Voltage | Same as input voltage |
| Multi Stage Smart Charger (Amp) | 35A/20A | 65A | 65A/40A | 65A/45A/25A | 65A/35A | 65A/40A | 65A/50A |
| Charge Current Adjustable Gear | 25%, 50%, 75%, 100% |
| Charger Short Circuit Protection | Circuit breaker |
| Over Charge Protection | Bat. V ≥ 15.7Vdc/31.4Vdc/62.8Vdc, beeps 0.5s every 1s & fault after 60s |
| GENERAL SPECIFICATIONS |
| Safety Certification | CE, Soncap, ISO9001 |
| Operating Temperature Range | 0°C to 40°C |
| Storage temperature | 15°C below zero to 60°C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Net Weight (KG) | 16 | | 21 | 24 | 35 | 44 | 45 |
| Gross Weight (KG) | 19 | | 24 | 28 | 39.2 | 48 | 49 |
| Inverter Size | 1000W/1500W/2000W/3000W: 423X185X160MM 4000W/5000W/6000W: 600X185X155MM |
| Carton Box Size | 1000W/1500W/2000W/3000W: 570*315*300MM 4000W/5000W/6000W: 755*319*288MM |
| Wooden Case Size | 1000W/1500W/2000W/3000W: 614X362X359MM 4000W/5000W/6000W: 799X362X359MM
|
