N Connector Male Crimp Plug for LMR400 Rg8

Name: N Connector Male Crimp Plug for LMR400 Rg8
Brand: all-electronics-online.com
SKU: 774086625
Availability: InStock
Rating: 4.8 (26 reviews)

Price:	US $ 0.01-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

N connector male Crimp Plug for LMR400 RG8

PRODUCT SPECIFICATIO

Impedance	50Ω
Frequency	DC-7.5GHz
Withstand Voltage(at Sea Level)	≤4000Vrms,50 Hz
Working Voltage(at Sea Level)	≤2700Vrms,50 Hz
Insulation Resistance	≥10000MΩ
Contact Resistance	Center Conductor	≤0.4 mΩ
	Outer Conductor	≤1.5 mΩ
Tightening Torque	25 N.m
Center Conductor	Insertion Force	6N (min)
	Drawing Force	18N (max)
Outer Conductor(Notch)	Insertion Force	15N (min)
	Drawing Force	45N (max)
Durability	500cycles
Temp.Range	-55°C - +155°C
Salt Spray	48h spray
Body	Brass
Center Conductor	Plug	Brass
	Jack	Tin Phosphorus Bronze
Crimp Tube	Brass/Red Copper
Other Metal	Brass/Tin Phosphorus Bronze
Insulator	PTFE
Sealing Ring	Silicone Rubber
Body	Silver/Nickel/Ternary Alloys
Center Conductor	Silver
Outer Conductor	Silver/Nickel/Ternary Alloys
Other Metal	Silver/Nickel/Ternary Alloys
Crimp Tube	Nickel/Ternary Alloys

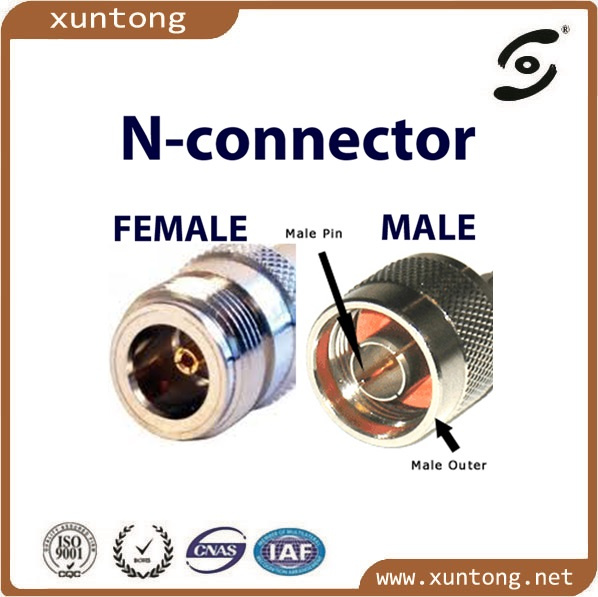

PRODUCT IMAGE
...

PACKAGE SHIPPING

EQUIPMENT PROCESS

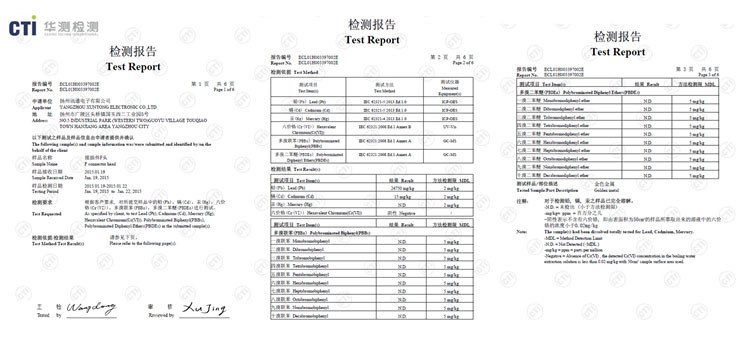

CERTIFICATIONS

OUR SERVICE

1. Your inquiry will be replied within 24 hours.

2. Our delivery time is 15 days, we will contact if there are special circumstances.

3. OEM&ODM.

4. We can do the product from your drawing, sample or indicated details.

FAQ

A:Do you only have these types of products ?

XT: No, We can do other products just need to give us your product samples and data.

B :How about your product quality and piece?

XT: We have different material products, you can choose according to your needs.

C :I dont know if your product is suitable for us.

XT: Dont worry,we can give our samples to you if you need.

Prod Model:	XT-D165
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name:	DIN 7/16 Jack 1/2"F RF Connector
Impedance:	75ohm
Insulating Resistance:	More Than The 1000 Mohm
Withstanding Voltage:	500V RMS
Vswr:	Max 1.3
Frequency Range:	DC-1GHz
Medium Pressure:	170V
Usability:	500 Cycles Min
Temp.Range:	-25~+65
Product Number:	RG6 Rg11

Xuntong Electronics Co., Ltd

Yangzhou Xun Electronics Co., Ltd. Was established in 2003, in the connector field has many years of production experience and superb product technology,

About the RF coaxial connectors, F head series (RG58, RG59, RG6, GR11), PAL (TV), BNC, N, RCA, SMA, SMB, TNC, L9 (1.6 / 5.6). L27, L29 (7/16), L36, L52., UHF (PL259), 1 / 2, 7 / 8, IF45Q type (15 / 8), IF70Q type (15/8), C6X, Q6, NEC (C4.6), MCX, MMCX, CC4 (1.0 / 2.3) and communication network products series of RF coaxial connectors between different series adapter, fiber optic connectors, filling micro-series connectors, coaxial attenuators coaxial tone attenuator, coaxial load, etc., can also be designed according to customer needs and processing of various special requirements of the connectors, copper nuts and other various copper pieces!

OUR PURPOSE

1. Attentive service process.

2. Superb product technology.

3. High-quality products.

OUR CREDIT

1. More than a decade of production experience.

2. More than five years of foreign trade transactions.

3. Long-term supply to Japan, Europe and the United States.

4. World Brand: Xuntong.
