NEMA 17 Brushless DC Motor/BLDC Motor Geared Motor for Printer(24VDC)
| Price: |
US $ 45-50/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
NEMA 17 Brushless DC Motor/BLDC Motor Geared Motor for Printer(24VDC)

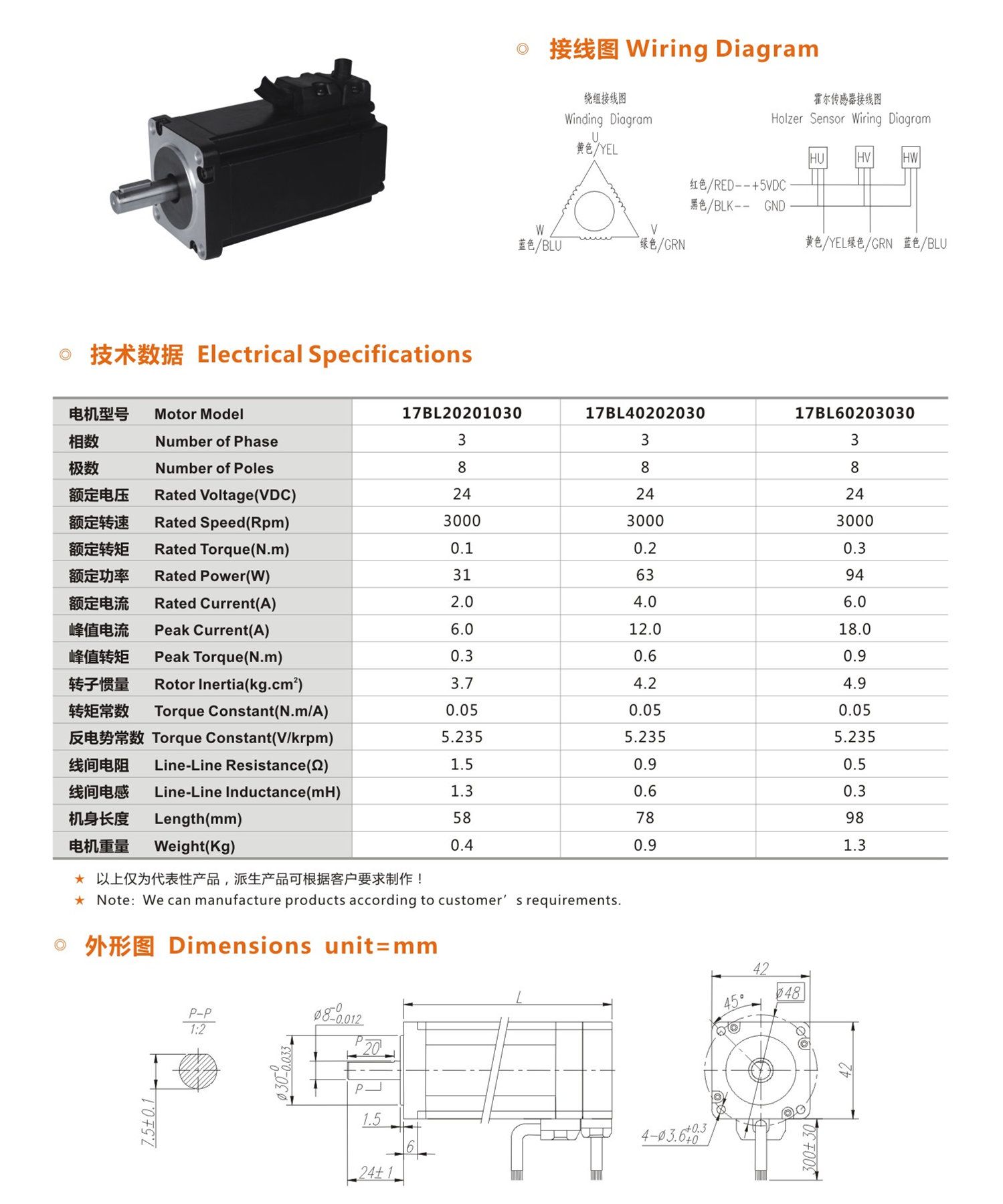

Product Specification| Number of Phase | 3 |
| Number of Poles | 8 |
| Rated Voltage (VAC) | 24 |
| Rated Speed (Rpm) | 3000 |
| Rated Torque (N.m) | 0.1-0.3 |
| Rated Power (W) | 31-94 |
| Rated Current (A) | 2-6 |
| Peak Current (A) | 6-18 |
| Peak Torque (N.m) | 0.3-0.9 |
| Rotor Inertia (kg.cm2) | 3.7-4.9 |
| Torque Constant (N.m/A) | 0.05 |
| Torque Constant (V/krpm) | 5.235 |
| Line-Line Resistance (mΩ) | 0.5-1.5 |
| Line-Line Inductance (mH) | 0.3-1.3 |
| Length (mm) | 58-98 |
| Weight (Kg) | 0.4-1.3 |
Description
We are a lead motor manufacture in China. Our products range over HB stepper motor, BLDC motor, servo motors and driver systems.
1) Our products have good quality and pretty competitive price.
2) We can do custom-made changes as customers' requirements.Application
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.
Payments1) We can accept EXW, FOB
2) Payment must be made before shipment.
3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.Shipping1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
2) Most orders will be shipped out within 3-7 working days upon payment confirmation.
3) Shipping normally takes 7-25 working days. Most of the items will delivery in 2 weeks, while there will be a delay for something we cannot control (such as the bad weather). If it happens, just contact us, we will help you check and resolve any problem.
3) Please check the package upon receipt, if there are some damages, please contact us immediately.Feedback & Refund 1) Feedback is important to us, if you have any problem with our products, please contact us, our technician will give you useful advises.
2) When you have the parcel and not satisfied with the goods or it is other problem, please tell us immediately, and provide us a photo showing the detail.
3) Any reason requiring for all refund. Items must be in original condition and no physical damage. Buyer responsible for all shipping cost.
If you need more information, please contact with us. We will attach great importance to your any problems. Hope we could establish a long-term effective cooperation.CertificationIOS9001,CE,UL,EMC
| Prod Model: |
17BL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Frame: |
NEMA17 |
| Motor Length: |
58-98 mm |
| Rated Volatge: |
24 V |
| Rated Current: |
2-6 A |
| Rated Torque: |
0.1-0.3 N.m |
| Rated Power: |
30-95 W |
| Application: |
Textile Machine |
| Operating Speed: |
High Speed |
| Excitation Mode: |
Shunt |
| Structure And Working Principle: |
Brushless |
| Type: |
Other |
| Casing Protection: |
Other |
| Brand: |
Baolong |
| Certification: |
CE/UL |
Changzhou Baolong Motor Co., Ltd, established in 2004, is a high-tech enterprise, which is engaged in the development, production and selling kinds of micro motor and motion control systems.
Using high-quality materials, sophisticated manufacturing process and strict quality management our product line includes almost all kinds of high-quality motors, such as hybrid stepper motors, close-loop stepper motors, brushless DC motors, servo motors, etc. Our company is one of the leading manufacturers in domestic and international market, and our products are at the same level of international famous-brand ones. Our products are widely used in computer peripheral devices, communications, stage lighting, textiles, packaging, printing, medical equipment, sewing machines, and other industrial automation systems.
Our company is rich in technical experience, we use advanced production process and testing equipment, and obeys advanced quality management requirements in production, such as ISO9001: 2008, 6 Sigma. Besides, our company also has obtained the CE certificate, and all of our products are RoHS compliant.
With the spirit of "product innovation, high quality, excellent service", our company will continuously focus on micro motor industry, and provide more high-quality products and more professional service for our clients. We try our best to win the client' S trust by our high-quality products, excellent service and reasonable prices. We are becoming the leader of the micro motor industry.
