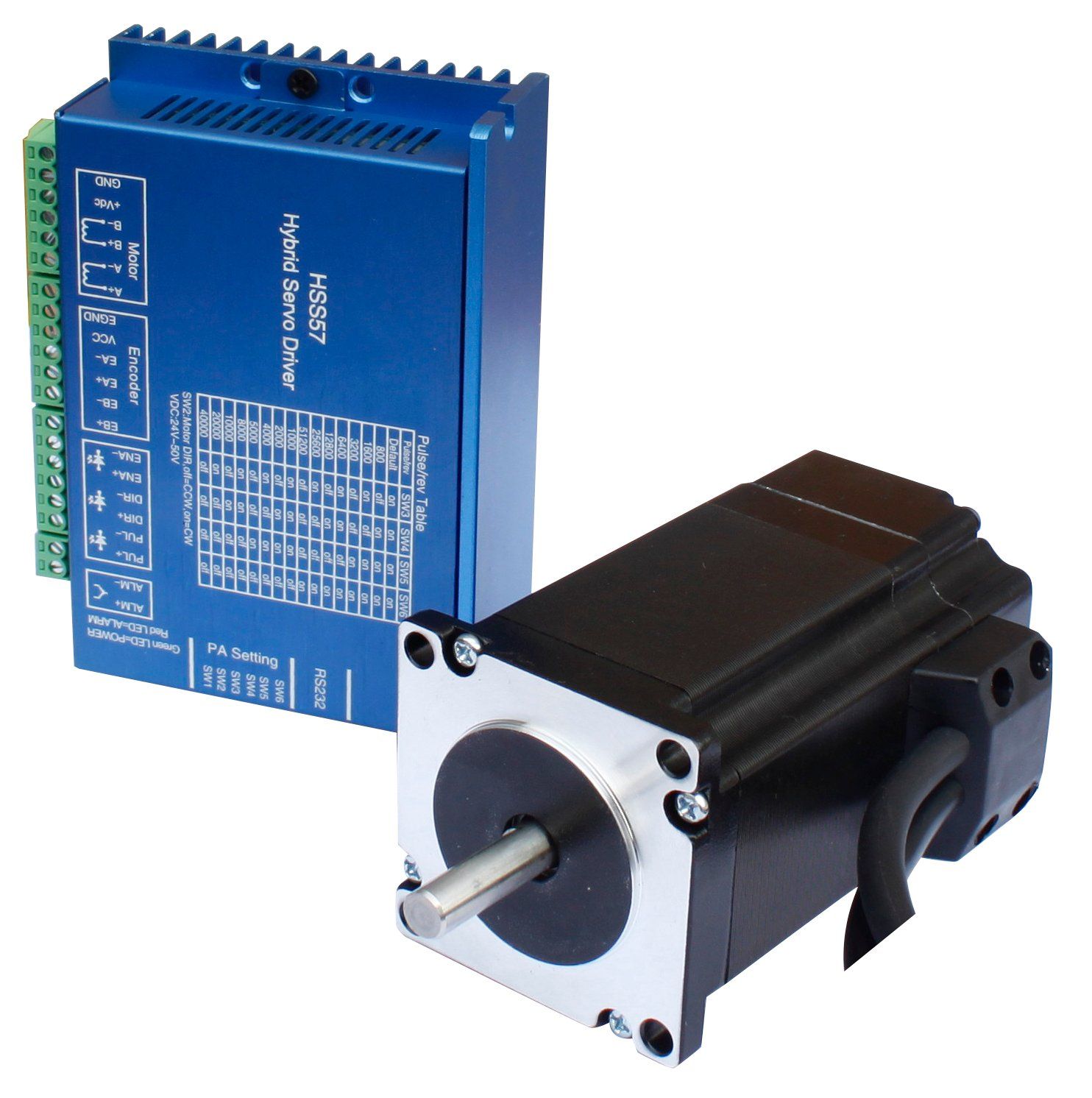

NEMA 23 2.3 Nm IP65 Closed Loop Stepper Motor with Driver Promotion

Name: NEMA 23 2.3 Nm IP65 Closed Loop Stepper Motor with Driver Promotion
Brand: all-electronics-online.com
SKU: 835038155
Availability: InStock
Rating: 4.8 (97 reviews)

Price:	US $ 88-100/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HSM23-E1
Step Angle:	1.8 Degree
Frame Size:	57mm
Temperature Rise:	80 Degree Max
Ambient Temperature:	-20-+50 Degree
Insulation Resistance:	100m Omega Min, 500VDC
Dielectric Strength:	500VAC for 1 Minute
Insulation Class:	B
Weight:	1.2 Kg
Current:	5 a
Inertia Speed:	0.48 Kg Cm2
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Operate Mode:	Two Phase Four-Step
Certification:	Ce
Brand:	Soya

Product Description

Parameters:

Item	Parameter
Step Angel	1.8º
Phase Number	2
Step Angel Accuracy	±5%
Temperature Rise	80ºC Max
Ambient Temperature	-20ºC~+50ºC
Insulation Resistance	100MΩMin.500VDC
Dielectric Strength	500VAC for one minute
Radical Runout	0.02Max.(450g-load)
Axial Runout	0.08Max.(450g-load)
Insulation Class	Class B
Rated Current	5 A
Holding Torque	2.3 Nm
Inertia Speed	0.48 kg. cm2
Body Length	95 mm
Weight	1.2 Kg

Our Stepper motor ranged from Nema 8 to Nema 52, and can be equipped with suitable drivers.

L:95mm

Applications:
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.

Transactions:
60% of our business are conducted on OEM basis.
We have an office in India, can serve India and nearby market immediately.
Looking forward direct consumers or wholesalers. We can manufacture with your specific requiremets.

Shipment:
The motors can be shipped by air or sea.
Express services: Fedex, DHL, UPS, TNT, EMS, etc.

IF THERE ARE ANY PRODUCTS YOU ARE INTERESTED, PLEASE FEEL FREE TO LET ME KNOW. WE'LL QUOTE OUR FAVOURABLE PRICES!

Changzhou Soya Motor control factory specialized in manufacturing stepper motor, servo motor and drive control. Established in 2002, our company has over ten years of R&D and manufacturing experience. We emphasize on the cultivating of employees' mortality and skills. Now that we have skilled technicians, have better R&D and production capacity.

Our main products are 2phase, 3phase and 5phase hybrid stepper motor, with the frame size from 42mm to 130mm. Frame size of servo motor is from 60mm to 180mm. They are widely used in auto equipment, such as CNC machine, printer, medical equipment, textile machinery, engraving machine, etc.

With complete set of automatic production lines and testing equipment, our products have passed ISO9001 quality system certification and got CE certificate. With the technical and management advantage, excellent quality, we build up long term and stable relationship with domestic enterprises. At the same time, we expand our overseas market in Italy, Korea, India and so on. Currently, over half of our business is conducted on OEM.

Adhere to scientific and technological innovation, the spirit of refinement and pragmatism, to provide excellent service; We look forward to build up new business relationships with you.
