Description:
NEMA 23 Stepping Motor(55mm 1.2N.m )
Specifications:
| model | 23NEMA |
| application | nc machine tool |
| medical instruments |
| Textile machinery |
| packaging machinery |
| printing equipment |
| speed | low speed |
| number of stator | two-phase/three-phase |
| excitation mode | hb-hybird |
| function | driving |
| number of poles | 8 |
| operate mode | two phase four-step/three phase six-step/two phase eight-step |
| type | electromechanical |
| certification | RoHS |
| | CE |
| brand | PROSTEPPER |
| trademark | Pearl cotton&cartons |
| specification | 16PCS |
| brand | PROSTEPPER |
| jiangsu changzhou | Jiangsu Changzhou |
57BYG 1.8°| Model | Current | Resistance | Inductance | Holding torque | Inertia | Length | Weight | |
| A | Ω±10% | mH±20% | N·m | OZ·in | g/cm² | mm ±1 | Kg | Lbs |
| 23H(E)445-01S/D | 1.0 | 4.7 | 17.3 | 0.5 | 70.8 | 180 | 45.5 | 0.5 | 1.1 | |
| 23H(E)445-02S/D | 2.0 | 1.3 | 3.5 | 0.5 | 70.8 | 180 | 45.5 | 0.5 | 1.1 | |
| 23H(E)445-03S/D | 3.0 | 0.6 | 1.6 | 0.5 | 70.8 | 180 | 45.5 | 0.5 | 1.1 | |
| 23H(E)455-01S/D | 1.0 | 5.9 | 27.2 | 0.8 | 113.3 | 280 | 55.5 | 0.7 | 1.5 | |
| 23H(E)455-02S/D | 2.0 | 1.6 | 7.8 | 0.8 | 113.3 | 280 | 55.5 | 0.7 | 1.5 | |
| 23H(E)455-03S/D | 3.0 | 0.7 | 3.2 | 0.8 | 113.3 | 280 | 55.5 | 0.7 | 1.5 | |
| 23H(E)476-01S/D | 1.0 | 2.5 | 12.7 | 1.8 | 255.0 | 480 | 76.5 | 1.1 | 2.4 | |
| 23H(E)476-02S/D | 3.0 | 1.1 | 6.0 | 1.8 | 255.0 | 480 | 76.5 | 1.1 | 2.4 | |
| 23H(E)476-03S/D | 4.0 | 0.7 | 3.0 | 1.8 | 255.0 | 480 | 76.5 | 1.1 | 2.4 |

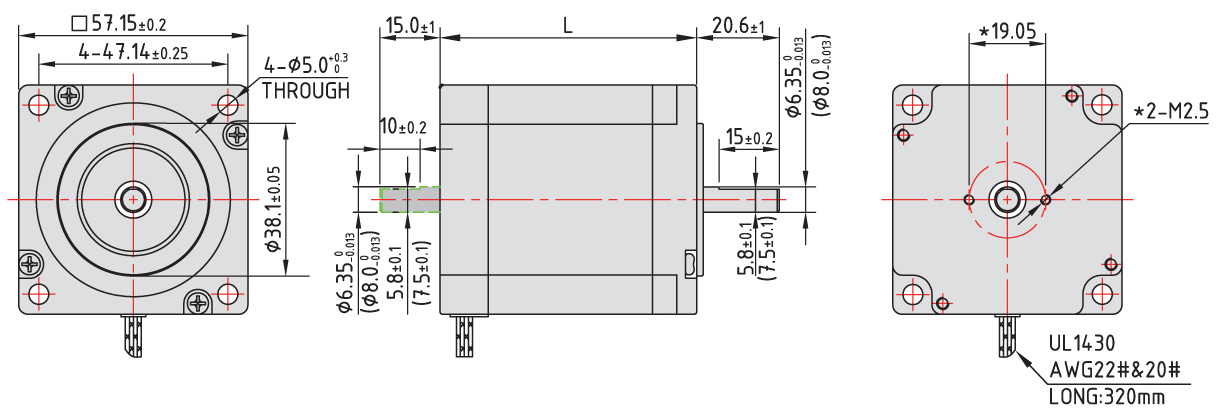

Outline
57BYG 0.9°
| Model | Current | Resistance | Inductance | Holding torque | Inertia | Length | Weight | |
| A | Ω±10% | mH±20% | N·m | OZ·in | g/cm² | mm ±1 | Kg | Lbs |
| 23H(E)445-01S/D | 1.0 | 4.7 | 17.3 | 0.5 | 70.8 | 180 | 45.5 | 0.5 | 1.1 | |
| 23H(E)445-02S/D | 2.0 | 1.3 | 3.5 | 0.5 | 70.8 | 180 | 45.5 | 0.5 | 1.1 | |
| 23H(E)445-03S/D | 3.0 | 0.6 | 1.6 | 0.5 | 70.8 | 180 | 45.5 | 0.5 | 1.1 | |
| 23H(E)455-01S/D | 1.0 | 5.9 | 27.2 | 0.8 | 113.3 | 280 | 55.5 | 0.7 | 1.5 | |
| 23H(E)455-02S/D | 2.0 | 1.6 | 7.8 | 0.8 | 113.3 | 280 | 55.5 | 0.7 | 1.5 | |
| 23H(E)455-03S/D | 3.0 | 0.7 | 3.2 | 0.8 | 113.3 | 280 | 55.5 | 0.7 | 1.5 | |
| 23H(E)476-01S/D | 1.0 | 2.5 | 12.7 | 1.8 | 255.0 | 480 | 76.5 | 1.1 | 2.4 | |
| 23H(E)476-02S/D | 3.0 | 1.1 | 6.0 | 1.8 | 255.0 | 480 | 76.5 | 1.1 | 2.4 | |
| 23H(E)476-03S/D | 4.0 | 0.7 | 3.0 | 1.8 | 255.0 | 480 | 76.5 | 1.1 | 2.4 |
Outline
Three-phase hybrid stepping motor
57BYG 1.2°
| Model | Current | Resistance | Inductance | Holding torque | Inertia | Length | Weight | |
| A | Ω±10% | mH±20% | N·m | OZ·in | g/cm² | mm MAX | Kg | Lbs |
| 23H(E)355-01S/D | 2.5 | 0.9 | 1.5 | 1.0 | 141.6 | 280 | 55.5 | 0.7 | 1.5 | |
| 23H(E)355-02S/D | 3.3 | 0.6 | 0.9 | 1.0 | 141.6 | 280 | 55.5 | 0.7 | 1.5 | |
| 23H(E)380-01S/D | 2.5 | 1.4 | 2.6 | 1.8 | 255.0 | 520 | 80.5 | 1.1 | 2.4 | |
| 23H(E)380-02S/D | 3.3 | 0.9 | 1.6 | 1.8 | 255.0 | 520 | 80.5 | 1.1 | 2.4 |
Outline
Factory Introduction
The company's products are mainly exported to the US, Europe, South Korea and other countries. Widely used in garment machinery, machine tools, textile machinery, packaging machinery, medical equipment, wiring harness processing and other industries, and some well-known domestic and foreign companies, enterprises, custom and production.
ChangZhou Prostepper Co.,Ltd. was established in 2004, is a professional engaged in the development of the stepper motor design and production enterprises, with a number of patents. Enterprise has a comprehensive management and technology system, has a number of outstanding technical staff and employees, now has an annual production stepper motor production capacity of 800,000 units. Companies adhering to the quality first, scientific management, excellence, customer satisfaction for the idea. Committed to providing customers with cost-effective quality products.
ChangZhou Prostepper Co., Ltd. Was founded in 2004, it is a professional stepper motor manufacturer whom engaged in stepper motor R&D, design and production over 18 years, owns a lot of patents of stepper motor. PROSTEPPER BRAND precise hybrid stepper motors, fit with suitable drivers, be widely used in garment machinery, CNC, textile machinery, packaging machinery, medical equipment, wiring harness processing and other industries.
Prostepper has comprehensive company management system, it was awarded ISO9001: 2015 certification in year 2016, has a excellent technical team and a group of skilled employees. Prostepper can manufacture all kinds of hybrid stepper motors, its yearly output capacity is 1.5 million units. Since Prostepper establishment, it keeps the ideals of QUALITY FIRST, CUSTOMER SATISFACTION, and insists on SCIENTIFIC MANAGEMENT, CONSTANT IMPROVEMENT, it committed to providing customers with HIGH QUALITY and COST-EFFECTIVE products. In year 2014, its stepping motor series products passed CE certification, and passed RoHS test in year 2016.
Prostepper's customers are all over the world, and mainly in USA, EU, South Korea and other countries. Prostepper also provide OEM and ODM for a lot of BRAND-NAME companies. We warmly welcome Endusers and Agents to make inquiry to us, Prostepper would like to establish a widely cooperation with our esteemed customers.
Thank you for choosing Prostepper! We have strongly self-confidence to be your reliable and long-term motor provider.
