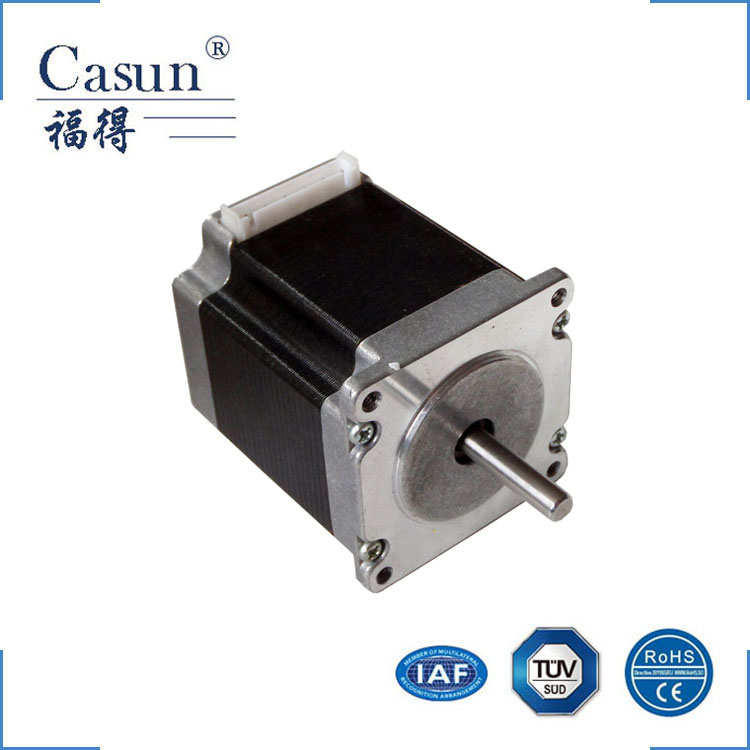

NEMA 23 High Torque Hybrid Stepper Motor (57SHD0008-28M)
| Price: |
US $ 11-12/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

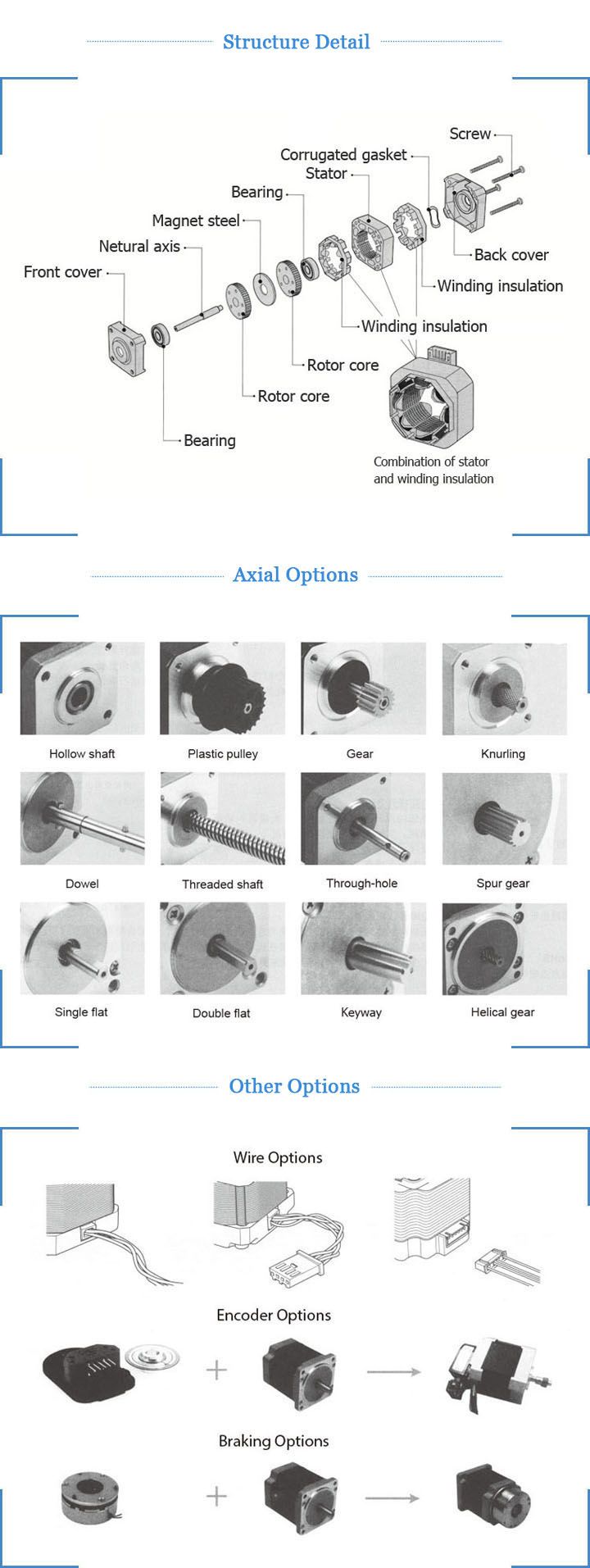

structure and compositionComponents: Front Cover, Bearing, Netural axis, Rotor core, Magnet steel, Winding insulation, Stator, Corrugated gasket, Back cover, Screw.Axial Options: Hollow shaft, Plastic pulley, Gear, Knurling, Dowel, Threaded shaft, Through-hole, Spur gear, Single flat, Double flat, Keyway, Helical gear.Other Options:Wire options, Encoder options and Braking options.
packaging: hard cardboard box with foam inside.shipping:according to customer's choice or ship by the best express company to the destination,normally the delivery time is within 10 days.advantage:1.with over 10 years of manufacturing experience, any type of customizing is available.2.with perfect service system, we can provide you with first class pre and after sale service.3.we have enough storage of each type of products, with first class packaging and shipping, make sure accurate delivery.4.professional sales consultants give you all answers about our proucts.certificate:CE, ISO9001, ROHS TUV is ready, CCC certification is in preparation.
Application:3D printer, CNC machine, engraving machine, medical equipment, packing machine, robot, sewing machine, stage light.
company show:Guangzhou FUDE Electronic Technology Co., Ltd is specialized and engaged in researching development and production of stepper motor and intergrated sale Hi Tech enterprise. With our endless efforts, we regard improving products technological innovation as our first priority and introducing the world advanced automatic driver technology, and becoming one of the most prefessional and technical enterprise. We provide many series of products and technical proposal for the market in the long-term.Casun as our independent brand, with the support of professional technical team and perfect after-sale service, we have become one of the most influential brand in stepper motor field. The main application of our products: automation equipment, medical apparatus and instruments, IT industry, stage light and Textile machinary.Company culture:Our company adhere to the target of "meet customer's needs and exceed customer's expectation continuously", stick to the management idea "solidarity, innovation, integrity, and win-win".

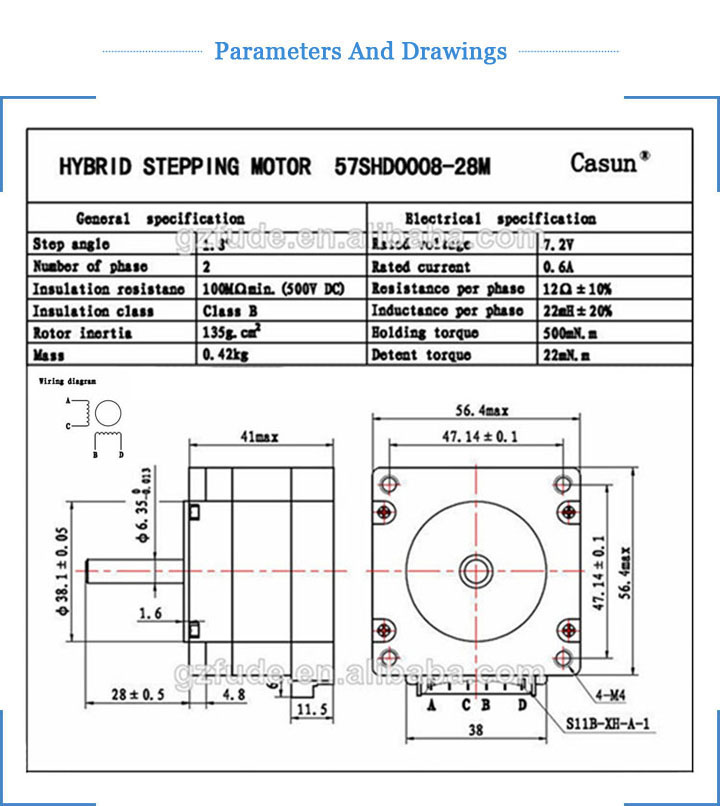

| Prod Model: |
57SHD0008-28M |
| Step Angle: |
1.8 Degree |
| Rotor Inertia: |
135g.Cm2 |
| Mass: |
0.42kg |
| Rated Voltage: |
7.2V |
| Rated Current: |
0.6A |
| Resistance Per Phase: |
12ohm |
| Inductance Per Phase: |
22mh |
| Holding Torque: |
500mn.M |
| Detent Torque: |
22mn.M |
| OEM &ODM: |
Accepted |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Number Of Poles: |
Bi-Polar or Uni-Polar |
| Operate Mode: |
Two Phase Four Beat |
| Certification: |
Ce TUV RoHS |
| Brand: |
Casun |
Guangzhou Fude Electronic Technology Co., Ltd, has over 10 Years Manufacturing Experiences. It is a manufacture of stepper motors with well-equipped testing equipment and strong technical force.
It is located in Baiyun district, Guangzhou city with more than 7000 square meters.
Quality is our culture. Our manufacture gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D Dept., Engineering Dept., Production Dept., Marketing Dept., After-sales services Dept. And Personnel Dept.
To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
Our Core Competencies are Hybrid stepper motor, Reduction Gearbox Stepper Motor, Linear stepper motor, Stepper Motor Driver!
Our value Message is with us your money in safe your business in safe!
Please dont hesitate to contact us to get more details, we are waiting for you!
