NEMA17 Square 40mm Motor Length Stepper Motor with Circuit Board

Name: NEMA17 Square 40mm Motor Length Stepper Motor with Circuit Board
Brand: all-electronics-online.com
SKU: 836261935
Availability: InStock
Rating: 4.6 (94 reviews)

Price:	US $ 4-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Products photos:

Product Description:

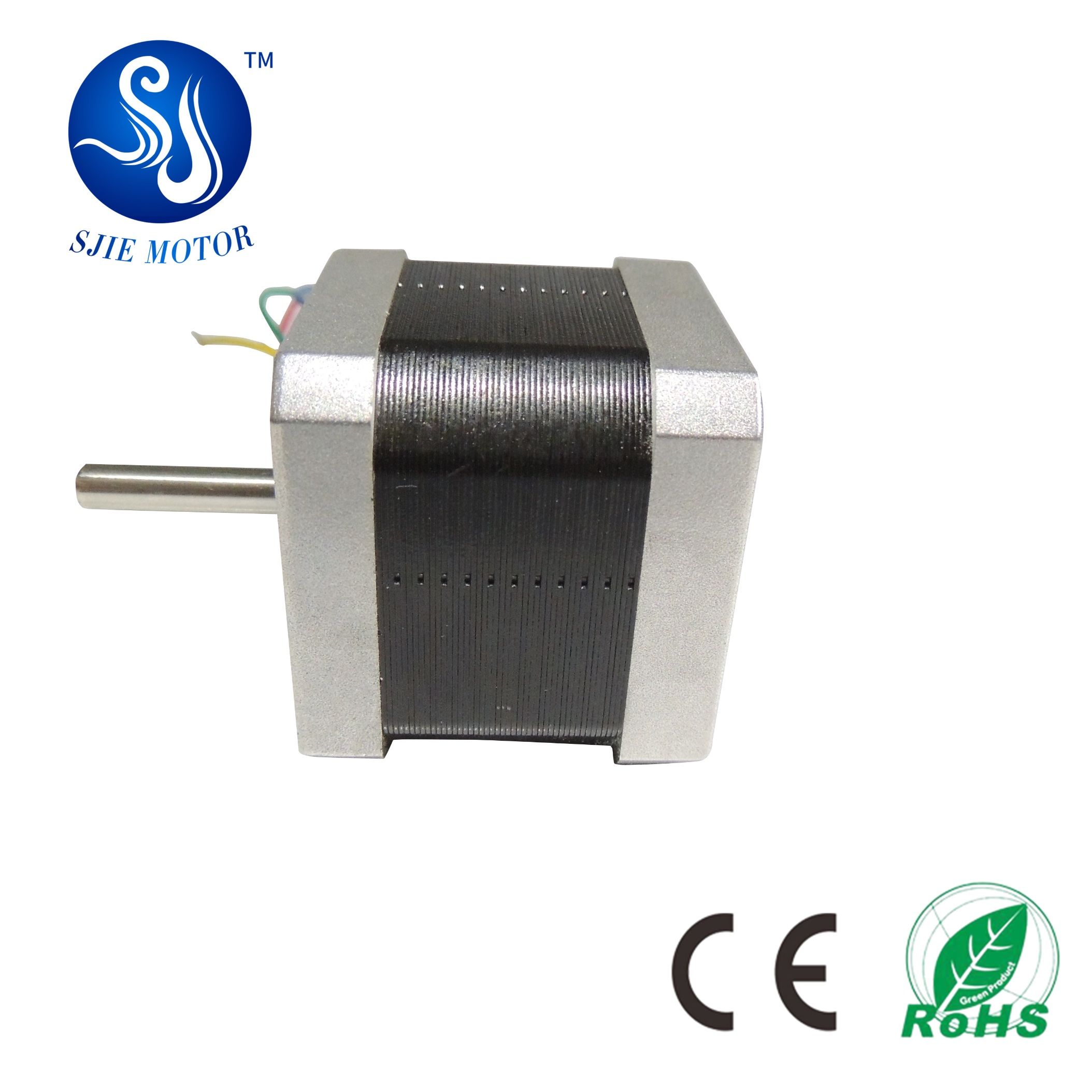

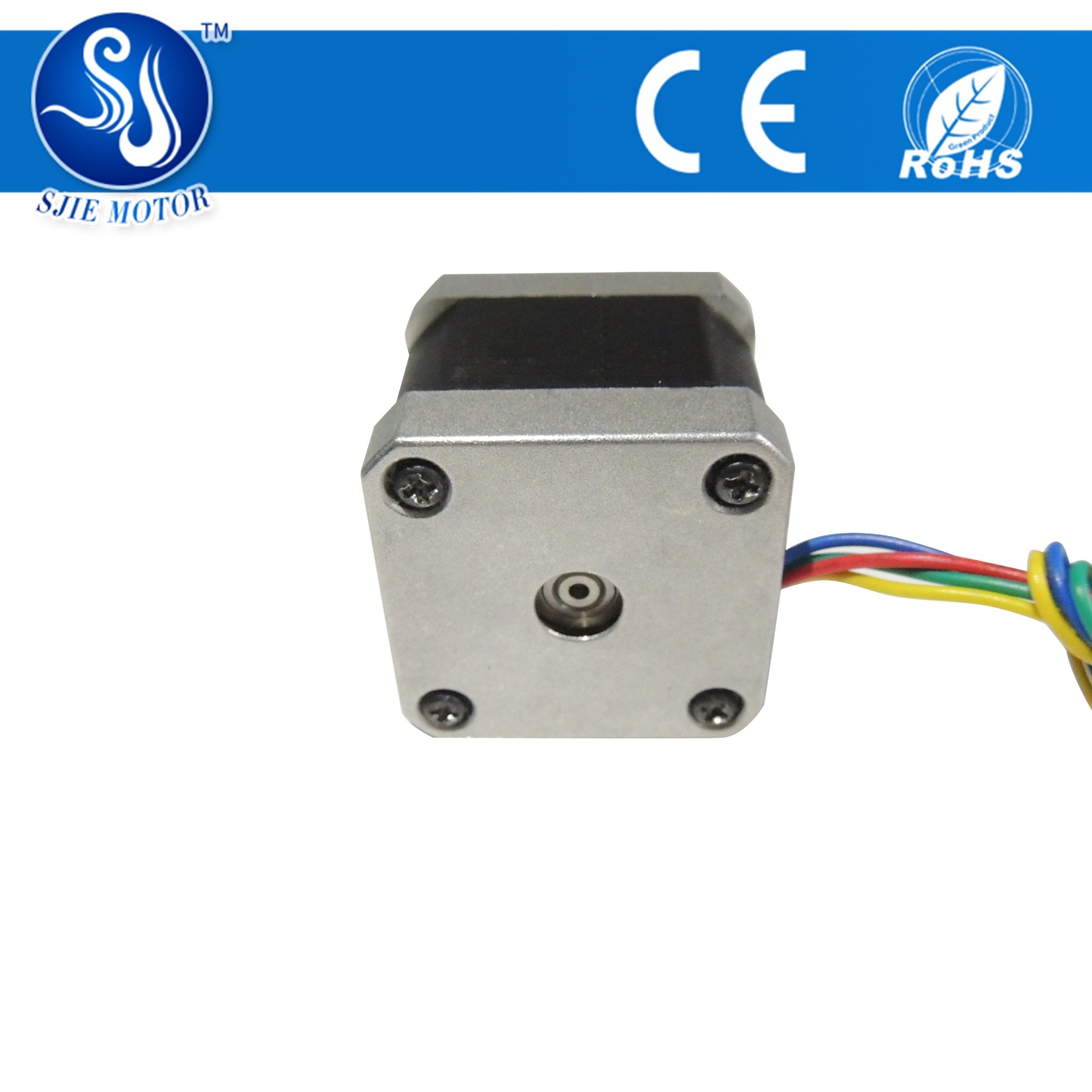

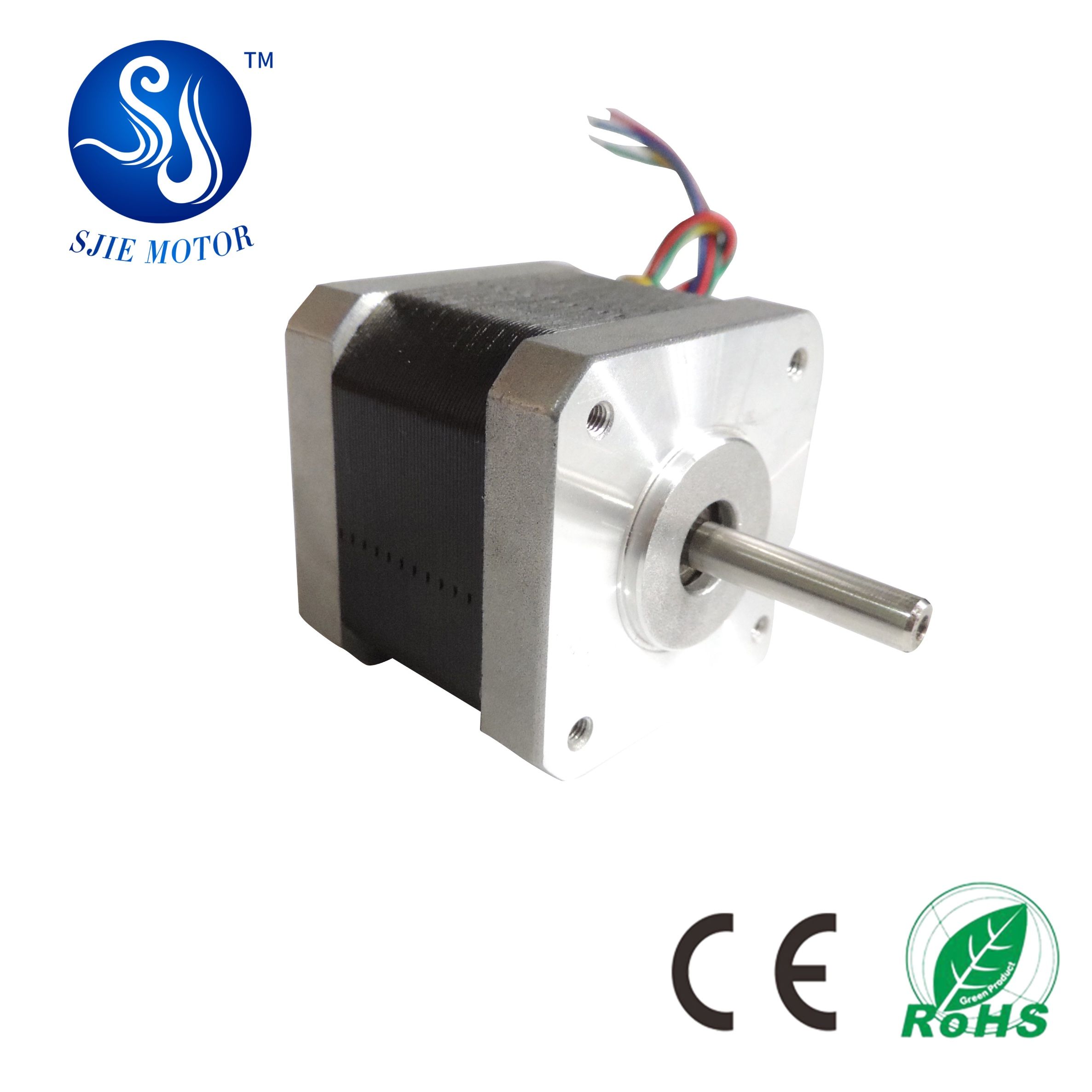

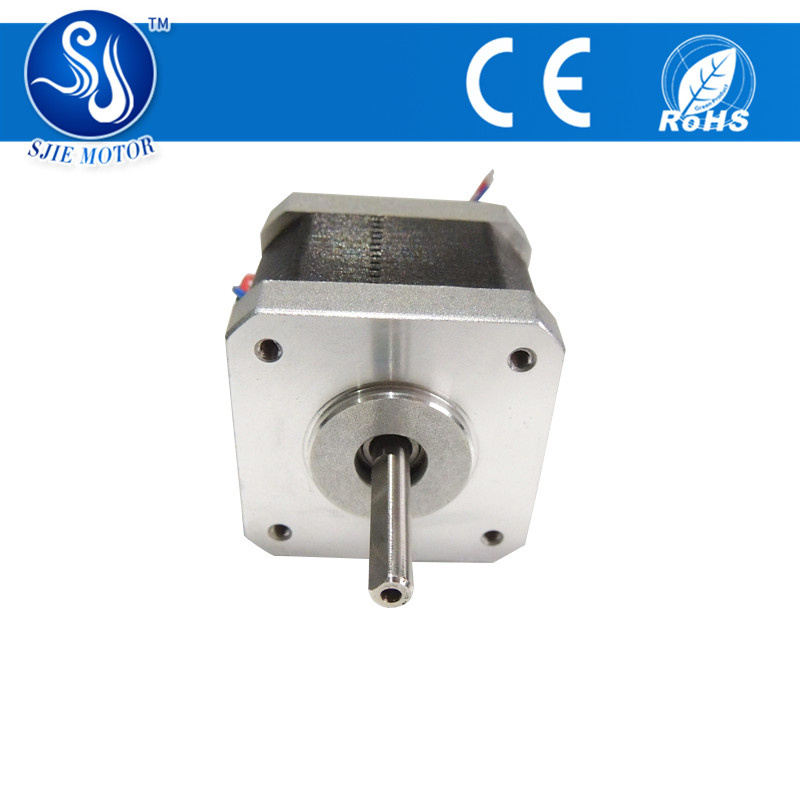

1.8degree Size 40mm High Torque Hybrid stepper motor.

40mm size stepper motor,

NEMA42stepping motor,

2 phase 40mm stepper motor

Stepper motor 40mm size

Hybrid Stepper Motors

1) We can develop customer design version

Specifications:

item	Specification
Temperature Rise	80°C Max
Insulation Resistance	100MΩ Min., 500VDC
Step Angle Accuracy	±5%(full step,no load)
Resistance Accuracy	±10%
Amibent Temperature	-20°C~+50°C
Inductance Accuracy	±20%
Dielectric Strength	500VAC for one minute

Electrical Specific
Electrical Specific
Series	Step	Motor	Rated	Phase	Phase	Holding	Detent	Rotor	Lead	Motor
Model	Angle Length	Current	Current	Resistance	Inductance	Torque	Torque	Inertia	Wire	Weight
	(° )	(mm)	(A)	(Ω)	(mH)	(kg.cm Min)	(g.cm Max)	(g.cm²)	(No.)	(g)
42HS2806	1.8	28	0.6	8	10	1.2	160	34	4	150
42HS3313	1.8	33	1.2	2.0	0.6	2.5	160	34	4	220
42HS3305	1.8	33	0.5	24.0	19.0	2.1	160	34	4	220
42HS3405	1.8	34	0.5	30	35	2.1	160	34	4	220
42HS3405-6	1.8	34	0.5	20	16	2.0	160	34	6	220
42HS3417	1.8	34	1.7	1.9	2.5	2.8	160	34	4	220
42HS3412	1.8	34	1.2	2.3	3.8	2.8	220	54	4	280
42HS4005	1.8	40	0.5	30.0	44.0	2.8	220	54	4	280
42HS4008	1.8	40	0.8	7.2	4	3.0	220	54	4	280
42HS4015	1.8	40	1.5	2.0	40.0	3.0	220	54	4	280
42HS4010	1.8	40	1.0	7.2	7.3	3.0	220	54	6	350
42HS4805	1.8	48	0.5	30.0	20.0	4.0	260	68	4	350
42HS4823	1.8	48	2.3	1.0	1.8	5.0	260	68	4	350
42HS4818	1.8	48	1.8	1.7	3.2	5.0	260	68	4	350
42HS6018	1.8	60	1.8	2.2	5	6.5	280	102	4	350
*Note:We can manufacture products according to customer's requirements.

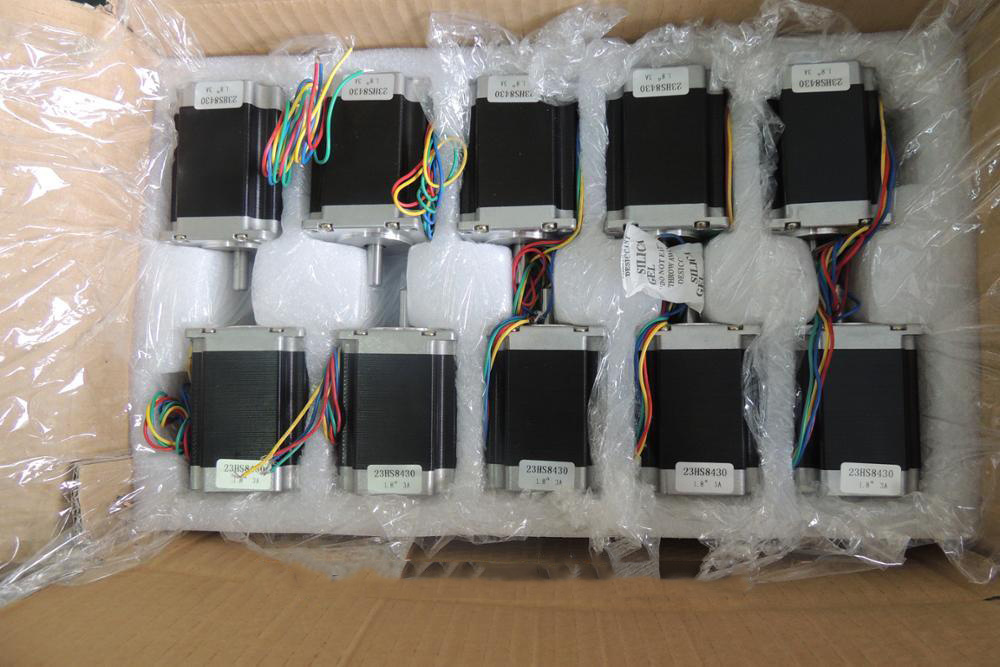

About our Packing:

Except 2 phase and 3 phase stepper motor , we also supply close loop stepper motor , planetary gear stepper motor , hybrid stepper motor driver , power supply and so on .

if you need more information , please contact with us , our contact information is as follows.

Changzhou Sujie Motor Co.,Ltd

Contact Person : Ms Sue (Sales manager)

Tel: 0086 519 88779021

If you need instant massaging and real-time conversation, please note information when adding friends. Welcome to consult!

We can develop customer design version .More Quantity . more discount !!!

Prod Model:	42HS4015
Step Angle:	1.8 Degree
Holding Torque:	3.8kg.Cm
Current:	1.5A
No Of Leads:	4
Rated Volage:	3.23V
Resistance/Phase:	1.2Ω
Motor Length:	40mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	2 Phase
Type:	Stepper Motor
Certification:	Ce
Brand:	Su Jie
