| Prod Model: |
TP-020-AW-W-B-11 |
| CCT: |
5500-6500K |
| Lumen(Lm) (±10%): |
2020 |
| Beam Angle (Degrees): |
230 |
| Lamp Luminous Efficiency(Lm/W): |
150 |
| IP Rating: |
IP65 |
| LED Light Source: |
SMD2835 |
| LED Quantity: |
144PCS |
| Product Name: |
Motion Sensor Light |
| Keyword: |
Motion Sensor Light |
| Color: |
Neutral White/Warm White/White |
| Light Source: |
LED |
| Emitting Color: |
White |
| Waterproof: |
Waterproof |
| Certification: |
TUV,Dlc |
| Type: |
Microwave Motion Sensor |
| Theory: |
Microwave Motion Sensor |
| Lamp Type: |
Tri-Proof Lamp |
| Material: |
Aluminum Alloy |
| Appliances: |
Warehouse, Parking Lot, Shopping Mal L,Farm... |
| Lamp Power: |
20W |
Product Description

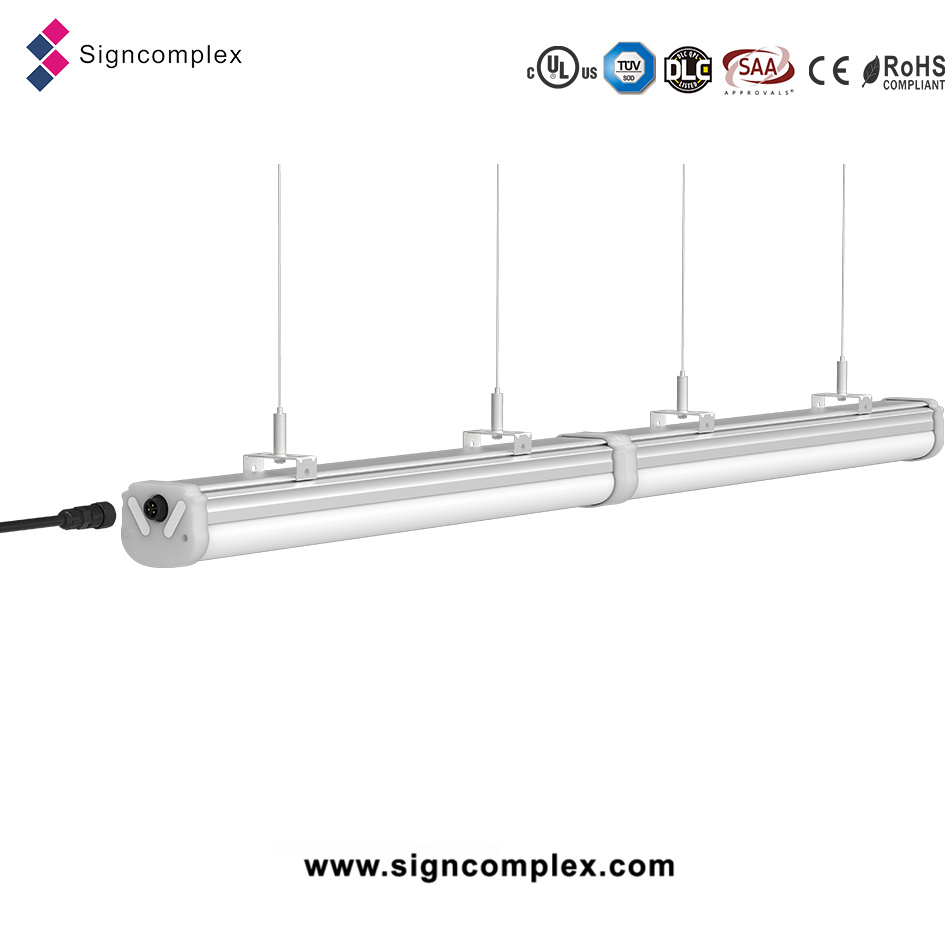

New 20w 40w 50w energy-saving parking lot led microwave motion sensor light
Sensor Tri-proof Lamp
TP-020/040/050-AW-B-011Description:Sensor tri-proof lamp is innovative products which integrate Motion detector and LED power supply. The products supply a simple energy-saving solution for users. As all control parts are integrated in lamp housing, it is very easy to mount and save labor cost. External sensor make it can be installed in luminaries and NO DARK area when turn on the light. With innovative control technology, detection distance can be longer, up to 15m. When lamp detect movement of object, the lamp will be full bright ; if lamp hasn't detected movement of object, after hold time the lamp will dim to a low light level, after stand-by period, lamp will switch off; and the lamp will be full bright when detect movable object again.
Features:1. Integration of Microwave motion sensor and LED power supply;

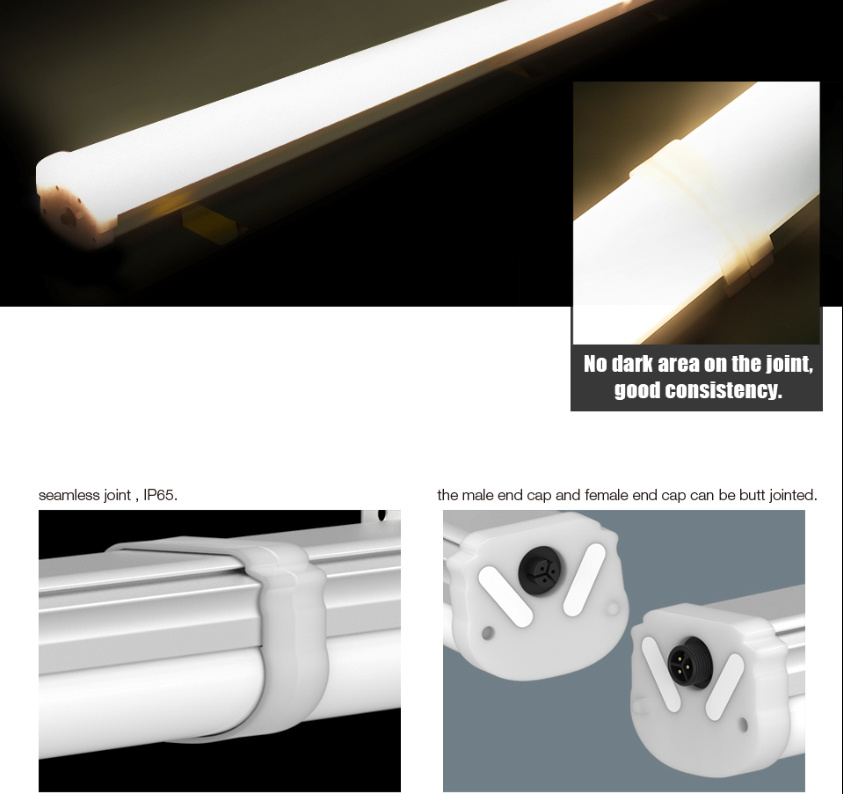

2. With external sensor, No DARK area of luminaries;
3. Automatic switching and dimming based on motion and light level;
4. Detection area, time delay and daylight threshold can be precisely set via our switch;
5. Wide detection area, range up to 16m in diameter;
6. Support higher mounting height 15m Max.;
7. Bui lt-in daylight sensor.
Specifications:| Model | CCT | Color | Lumen(lm)
(±10%) | Beam angle | LED Type
Quantity | Power(w)
(±10%) | Voltage,
Frequency | CRI | PF |
| TP-020-AW-W-B-11 | 5500-6500K | white | 2020 | 230° | SMD2835
144pcs | 20 | AC100-277V
50/60Hz | >80 | 0.9 |
| TP-020-AW-NW-B-11 | 4000-4500K | Neutral white | 1930 |
| TP-020-AW-WW-B-11 | 2700-3200K | warm white | 1850 |
| TP-040-AW-W-B-11 | 5500-6500K | white | 4040 | 230° | SMD2835
336pcs | 40 | AC100-277V
50/60Hz | >80 | 0.9 |
| TP-040-AW-NW-B-11 | 4000-4500K | Neutral white | 3860 |
| TP-040-AW-WW-B-11 | 2700-3200K | warm white | 3830 |
| TP-050-AW-W-B-11 | 5500-6500K | white | 4740 | 230° | SMD2835
384pcs | 50 | AC100-277V
50/60Hz | >80 | 0.9 |
| TP-050-AW-NW-B-11 | 4000-4500K | Neutral white | 4370 |
| TP-050-AW-WW-B-11 | 2700-3200K | warm white | 4270 |
Application:Suitable for warehouse, parking lot, shopping mall,farm, factory,cold storage, metro,underground passage and other places.

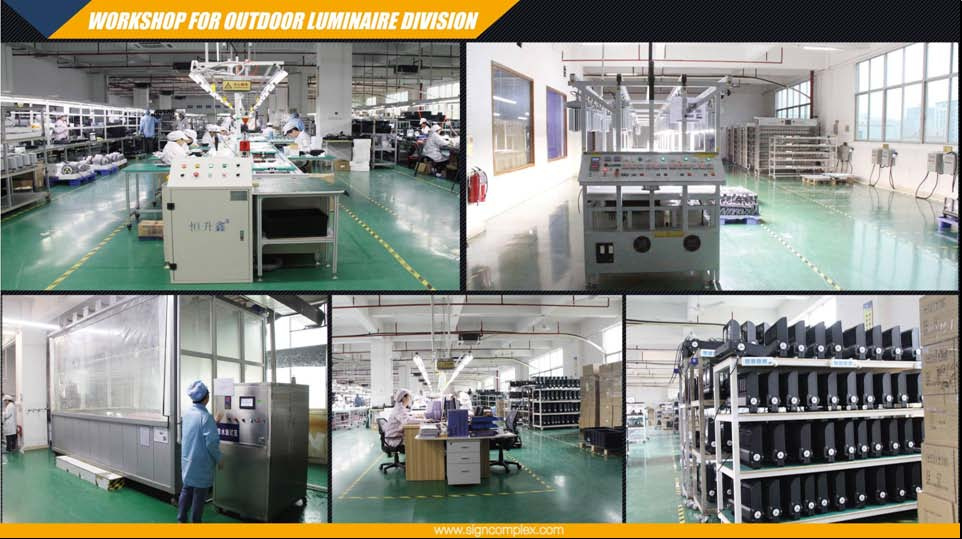

Production line:
Company pictures:

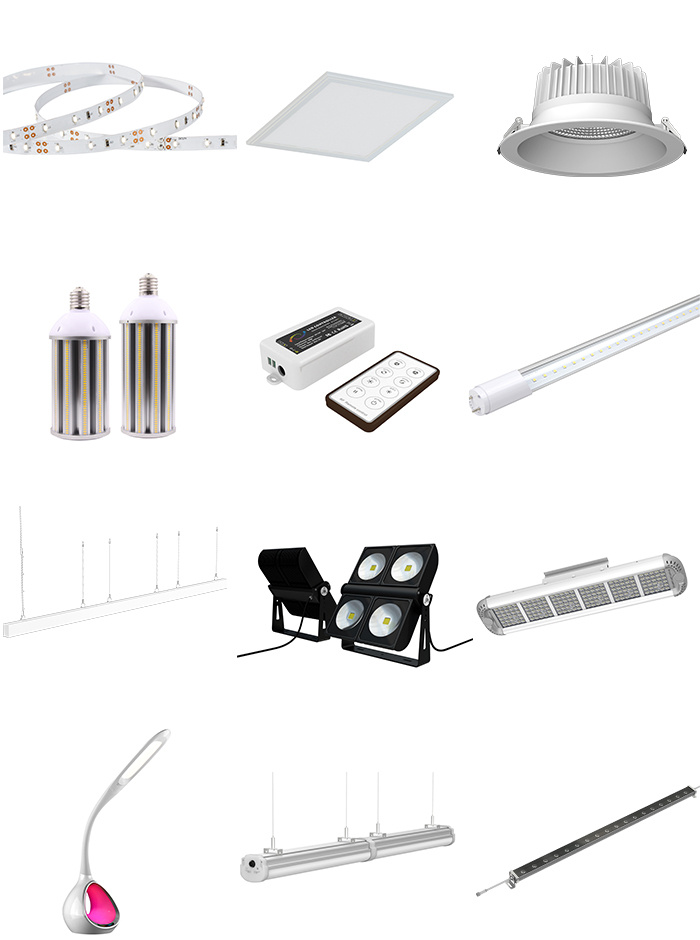

Main products:
Trade shows:
Signcomplex Ltd., founded in 2006, is a state-level high-tech enterprise and TUV ISO 9001: 2015 certified and registered company. Currently there are over 1000 employees, and a fabrication area of more than 40, 000 square meters. Our company has advanced LED luminaire manufacturing facilities such as auto soldering and SMT machines, electrical testing device such as integrating spheres and distribution photometer, and an independent EMI laboratory as well. We also have a professionally trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant. Signcomplex enjoys a high reputation as a LED luminaire supplier throughout Europe and the US.
Signcomplex devotes itself to developing new products with state-of-the-art technologies. Our 50 people R&D team has abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. Most of our products are self-designed with private moulds. We have more than 40 patents of shape design, utility model patents and software copyright. We monthly develop more than 2 new products and 10 customized products. All our designs fully follow UL and EU electrical safety standards. A customized design can be provided in 3 days tailored to customer's request.
Excellent Signcomplex LED luminaires have already provided inspiration for thousands of designers, architects and engineers all over the world. With our customer, we actively explore the ideas in architectural, residential, commercial, industrial lighting and special auxiliary lighting. We have already helped offering lots of LED lighting solutions to many famous brands, e. g., Marlboro, L'OREAL, Hilton, Four Seasons, Coca-Cola, McDonald's, Armani, The Body Shop, H&M, Cartier and Nissan, etc.
Our excellent sales and after-sales team are always at your service and will take good care of you, our valued customer.
