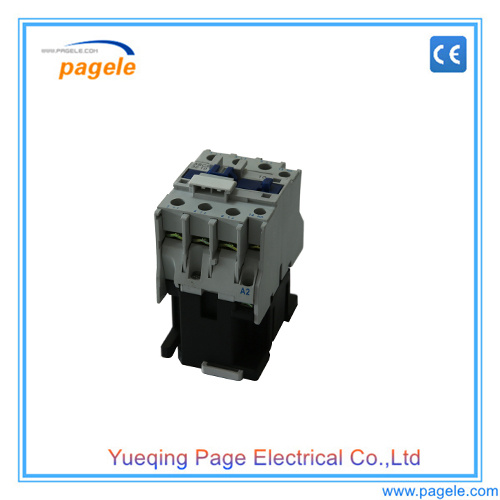

New Beauty Performance of AC Contactors

Name: New Beauty Performance of AC Contactors
Brand: all-electronics-online.com
SKU: 792651045
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	US $ 2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

New Beauty Performance of AC Contactors

First, introduce our Contactor's special advantage is:

* Silver: 50%, 85% silver (no shortage);
* Contact: Welding;
* Material: PA66 Nylon, (not like others re-cycle)
* Smell: no bad smell, good material show

Second, is the AC Contactor technical data:

1)LC1-D series AC Contactor
is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz,
rated current up to 95A, for making, breaking, frequently starting & controllingthe AC motor.
2)Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.
3)The contactor conforms to IEC60947-4-1 CE stardand.

LC1-D AC contactor Technical Data

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

The under is our workshop, all contactors are good assembled and tested before ship.

Prod Model:	LC1-D2510/01
Material:	PA66 Nylon
Silver:	50%, 85% Silver
Voltage:	AC220V
Contact:	Welding
Certificate:	Ce
