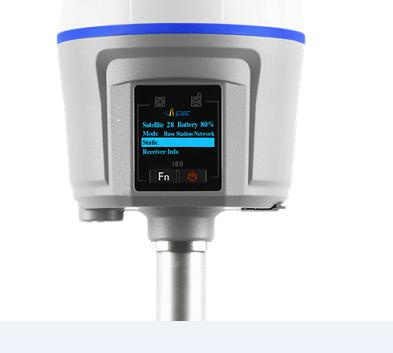

CHC I80 RTK GNSS GPS
GNSS Characteristics 220 channels with all in view simultaneously tracked satellite signals
GPS: L1C/A, L1C, L2C, L2E, L5GLONASS: L1C/A,L1P, L2C/A, L2P, L3Galileo: E1, E5A, E5BBeiDou: B1, B2SBAS: L1C/A, L5 (QZSS, WAAS, EGNOS, GAGAN)GNSS Accuracies SBAS differential positioning accuracy: 0.5 m RMS
- Highprecision static
- Horizontal: 2.5 mm + 0.5 ppm RMS
- Vertical: 3.5 mm + 0.5 ppm RMS
- PostProcessed Kinematic (PPK)
- Horizontal: 8 mm + 1 ppm RMS
- Vertical: 15 mm + 1 ppm RMS
- RTK
- Horizontal: 8 mm + 1 ppm RMS
- Vertical: 15 mm + 1 ppm RMS
- Initialization time < 5 s
- Initialization reliability > 99.9%
- Network RTK
- Horizontal: 8 mm + 0.5 ppm RMS
- Vertical: 15 mm + 0.5 ppm RMS
- Initialization time < 10 s
- Initialization reliability > 99.9%
Hardware Dimensions (H×W): 14 cm × 12.4 cm (5.5 in x 4.9 in)
- Weight: 1.02 kg (2.2 lbs)
- kg (2.69 lbs) with batteries
- Environment
- Operating: 40 °C to +75 °C (40°F to 167°F)
- Storage: 55 °C to +85°C (67°F to 185°F)
- Humidity: 100% condensation
- Dust and Waterproof: IP67, protected from temporary immersion to depth of 1 m (unit floats)
- Shock and vibration: 2 m (6.56 ft) pole drop onto concrete, MILSTD810G
- LCD: 128x64dpi sunlight readable with function/accept buttons
Certifications and Calibrations - FCC Part 15 (Class B Device), FCC Part 22, 24, 90; CE Mark; CTick;Bluetooth EPL, IGS & NGS Antenna Calibration, MILSTD810G.
- Communications and Data Recording
- Serial: 2 x 7pin LEMO port (external power, USB data download, USB update, RS232)
-
- Cellular: Internally integrated 3.75G modem
-
- HSPA+ 21 Mbps (download), 5.76 Mbps (upload)
- WCDMA 850/900/1700/1900/2100
- EDGE/GPRS/GSM 850/900/1800/1900
- Bluetooth®: Internally integrated multimode system compatible with Android, Windows Mobile and Windows desktop operating systems
-
- WiFi: 802.11 b/g/n, access point mode
-
- UHF Radios : Protected TNC Female
-
- Standard Internal Rx/Tx: 410 470 Mhz;Transmit power: 0.1 W to 2 W;Protocol CHC, Trimble, Pacific Crest; Range: 5 km optimal conditions
-
- CC Certified Internal Rx/Tx: 403 473 Mhz; Transmit power: 0.1 W to 1 W;Protocols Trimble, Satel, Pacific Crest;Range: 5 km optimal conditions
- Protocols
-
- CMR, CMR+, sCMRx input and output
- RTCM 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output
- NMEA 0183 output
- HCN and RINEX static formats
- NTRIP Client, NTRIP Caster
- Data Storage
-
- 32 GB highspeed memory
Electrical
- Power consumption: <3.2 W
-
- Liion battery capacity: 2 × 3400 mAh, 7.4 V
- Operating time:
- RTK UHF Base: 6 h
- Static: 12 h
- External power: 12 to 36 V DC
