| Prod Model: |
30T |
| Warranty: |
1 Year |
| Color: |
Blue |
| System Type: |
Open |
| Cooling Type: |
Counter Flow |
| Voltage: |
380V/50Hz/3p |
| Control Type: |
Mechanical |
| Type: |
Refrigerant Liquid Receiver |
| Display Type: |
LCD |
| Control Method: |
Steam Pressure Type |
| Operating Principle: |
Semiconductor Refrigeration Equipment |
| Cooling Method: |
Counter Flow |
| Material: |
FRP |
| Condition: |
New |
| Certification: |
TUV, Ce, RoHS, CCC, ISO, UL |
Product Description

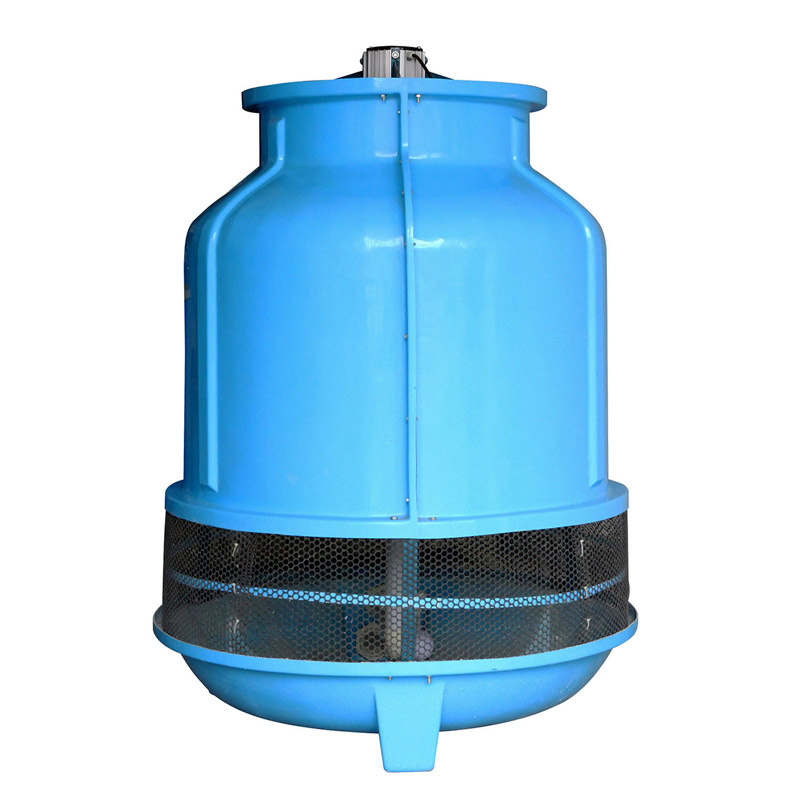

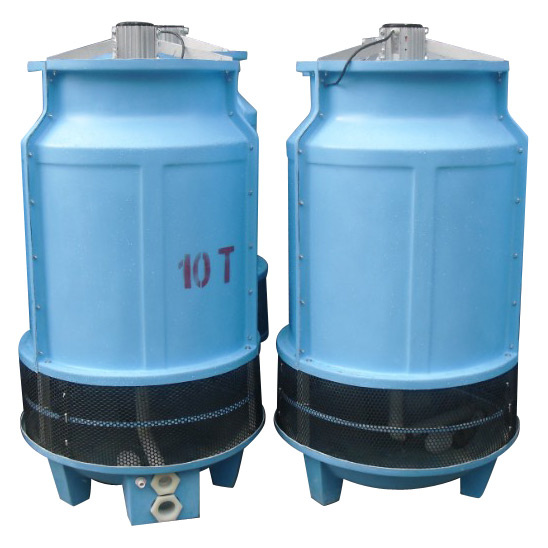

new condition count flow cooling water tower
| brand name: | GuoTai |
| type: | water cooling tower |
| material: | FRP |
| voltage: | 380V/50HZ/3P(customized) |
| weight: | 50-160kg |
| flow: | 6-20m^3/h |
| warranty: | 1 year |
motor power: | 0.25-0.55kw |
| system type: | open |
| height: | 1420-1920mm |
fan diamter: | 584-760mm |
air quality: | 3,400-11,300m^3/h |
| MODEL | Water flow(m3/h) | Diameter (mm) | theory air volume(m3/h) | Current (A) | Power (kw) | Heigh (mm) | Dmax (mm) | Net weight(kg) | function weight (kg) | Water inlet (mm) | Water outlet (mm) |
| XZ-10T | 8.81 | 584 | 4500 | 0.8 | 0.18 | 1680 | 950 | 56 | 139 | 48 | 48 |
| XZ-20T | 16 | 760 | 10000 | 1.4 | 0.37 | 2050 | 1400 | 115 | 265 | 60 | 60 |
| XZ-30T | 25 | 760 | 15000 | 2 | 0.55 | 2270 | 1600 | 160 | 364 | 60 | 60 |
| XZ-40T | 30 | 884 | 17000 | 2.6 | 0.75 | 2280 | 1850 | 165 | 369 | 90 | 90 |
| XZ-50T | 40 | 884 | 21000 | 2.6 | 0.75 | 2300 | 1860 | 170 | 380 | 90 | 90 |
| XZ-60T | 50 | 884 | 23000 | 2.6 | 1.1 | 2700 | 2250 | 175 | 405 | 90 | 90 |
1. High Temperature Cooling Tower is using circular design, the area occupation is small and appearance is pretty.
2. Circular adverse flow cooling tower uses the water sprinkler which obtains national patent and automatically flutter water, the ABS material or Al. alloy material make it solid; PVC plastic as material of sprinkler pipe make low pressure and flutter water losses.
3. The packing of high temperature cooling tower has large area of heat radiation, good water distrubitivity, strong fire resistance, high temperature capability of -20°C- 80°C, small wind resistance, light weight, long usage life etc. characteristics.
4. Special low noise fan, motor, hot-galvanized steel frame with a layer of chlorinated rubber paint, great anti-corrosion capacity.
5. High Temperature Cooling Tower with the latest technology, less flutter water, easy maintenance, carefully crafted components. good cooling efficiency.
6. High Temperature Cooling Tower is applicable for electronics, plastics, machine tools, chemical, food, air conditioning, plating, machining and other industries circulating water cooling.
7. The angles of all the fans are regulative and axial-flow, which are made of advanced engineering plastics.
8. All the motors are sealed, which can be used in the severe weather and circumstances.
9. The casing and water plate of the cooling tower are made of fiberglass, which will not be corroded, and no painting is needed. They can be used for a long time with very low maintenance cost.
10. The radiating film is made of polyvinyl chloride hard and heat-resisting.
Packaging & Shipping
1. Package: wooden safety package
2. Shipment: mainly by sea.
Our Services
1. Delivery time: 45 days after effective contract.
2. Warrants: One year.
3. After sales service: available for oversea service based on that buyers should pay our staffs the cost of flight, commodation and wage (USD85/DAY).
4. Payment: 30% depoist TT in advance and pay the rest after customers' inspection.

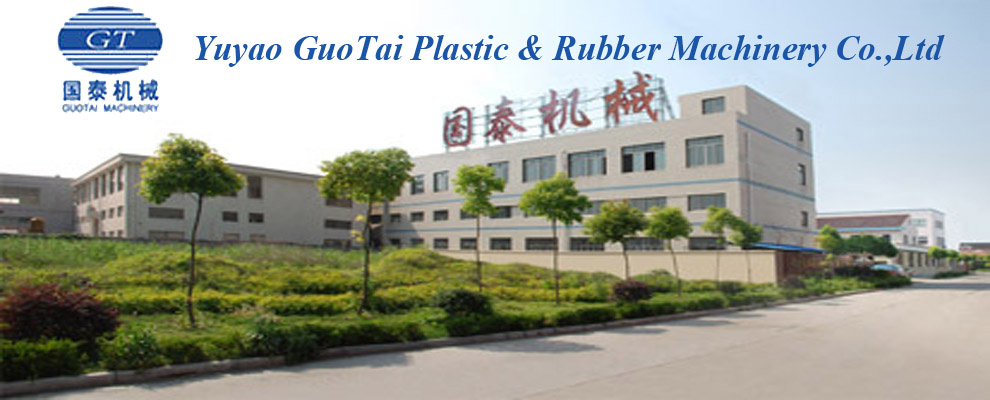

Company Information
