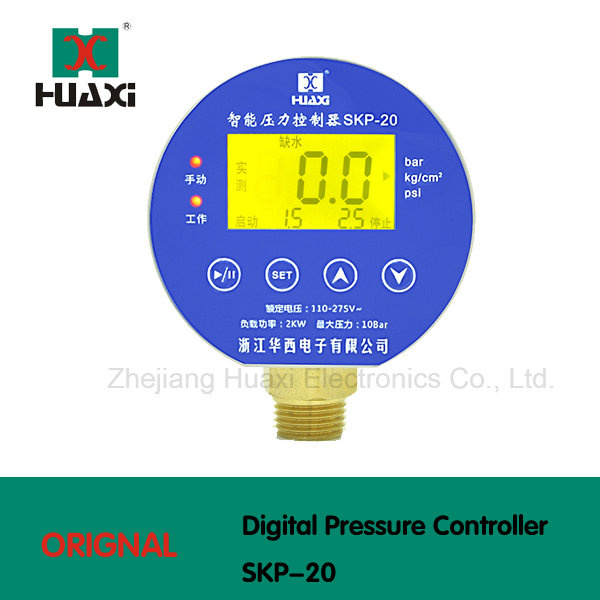

New Digital Pressure Controller Skp20 for Water Pump
| Price: |
US $ 16.35-17.75/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
HUAXI SKP-20 digital pressure controller can completely replace and outperform the pressure gauge-pressure switch kit on a pressure tank system and/or the pressure control device.SKP-20 intelligent pressure controller is the third generation of product developed by our company through years of research, testing and improvement. Giving consideration to users' actual experience, it has more comprehensive functions, is much easier to operate, and adopts industrial stainless silicon oil-filled sensor, its control accuracy and service time are unmatched by similar products in the market!
SKP-20 intelligent pressure controller is the third generation of product developed by our company through years of research, testing and improvement. Giving consideration to users' actual experience, it has more comprehensive functions, is much easier to operate, and adopts industrial stainless silicon oil-filled sensor, its control accuracy and service time are unmatched by similar products in the market!Main Technical Parameters
| Input Voltage | 110-275VAC 50/60HZ |
| Maximum Power Of Control Motor | 2200W |
| Maximum Resistance Current | 10A |
| Control Range Of Rated Current Pressure | 0-10Bar/1MPa |
| Pressure Control Accuracy | 0.1 Bar/0.01 MPa |
| Maximum Input Pressure | 1MPa |
| Maximum Ambient Temperature | 40ºC |
| Maximum Fluid Temperature | Bar, Kg/cm2, PSI |
| Water proof Protection Rating | Normal Temperature Type 30ºC, High Temperature Type 90ºC |
| Grade of Excessive Low Water Level Protection | IP55 |
| Water Shortage Protection | It will stop when there is water shortage, and restart when there is plenty water. |
| Overload Protection | It will protect motor when the motor is blocked, water pump is stalled, or voltage is unstable. |
| Pressure Unit | Bar, kg/cm²,PSI |
| Display Screen | Large-screen night view display, simultaneous display of setting and measured pressure, real-time display of fault causes |
| Backlight Color | Yellow |

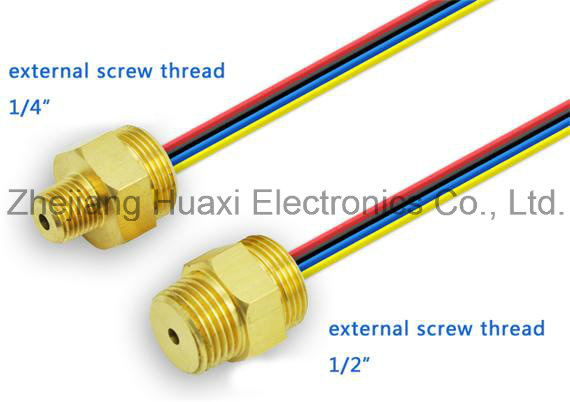

| Interface Screw Thread | 1/2" quarter, 1/4" half |
| Pressure Detector | Stainless steel oil-filled silicon, high precision, high stability, impact resistance |
| Service Life of Pressure Detector | 100,000 times |
| | |
Product characteristics:The company's SKP-20 intelligent pressure controller mainly includes the following characteristics:
1. It has excessive low water level protection and overload protection function, can effectively prevent motor from blocking, stalling and idling, and protect motor from burning.

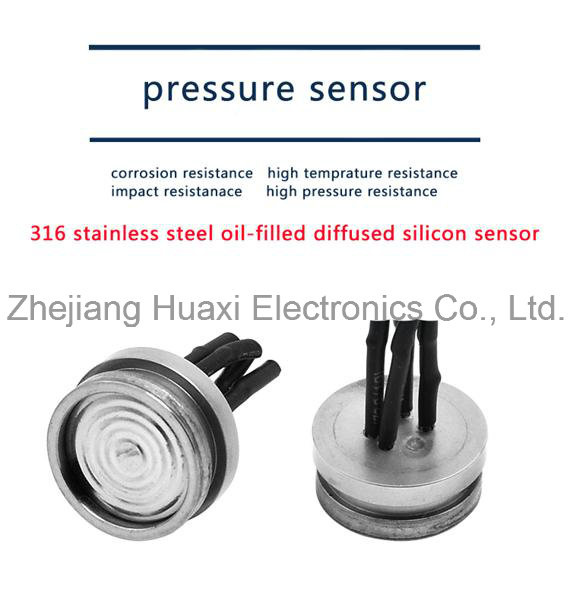

2. It adopts the pressure sensor independently developed by the company, adopts industrial stainless steel structure and vacuum oil-filled technology, truly ensures high resistance, high pressure, corrosion resistance, high precision and high stability, it can be used for 100,000 times or more, effectively solve many problems in the current market, such as the fragile sensor that may be broken by the vibration of pump starting, the accuracy drift caused by water quality and moisture, and unstable control.
3. It has international standard socket holes, can be directly plugged and used, without additional wiring.
4. Large LCD displays the measured pressure and starting / stopping pressure simultaneously, offers simpler and more intuitive operation, and truly adopts user-friendly design for users.
5. With wide voltage range design, 86-265VAC, undervoltage/overvoltage, it can automatically stop the pump when the voltage exceeds 20% of the voltage range, restart when it recovers normal voltage, making the operation more stable and more secure.
6. Synchronous display of fault makes the cause of fault more obvious.
7. Integrated nut injection makes it more solid and reliable.
| Prod Model: |
SKP-20 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Power: |
110-275V AC |
| Motor Power: |
2200W |
| Max. Input Pressure: |
1MPa or 10bar |
| Output: |
Digital Sensor |
| Theory: |
Processing Pressure Measurement |
| Type: |
Electronic |
| Application: |
Commercial |
| Explosion-proof Type: |
Non Explosion-proof |
| Brand: |
Huaxi, Wenhan |
Zhejiang Huaxi Electronics Co., Ltd is located at the foot of national key place of interest Yandang Mountain and abuts on "China Electric Capital"Liushi, Wenzhou. It was founded in 1997 with a floor area of 4, 003 sq. M, and building area of 5, 600 sq. M. At present, it owns more than 100 staff including 16 engineers.
The Company mainly produces(WENHAN, HX brand) kinds of temperature controller, overheat temperature protectors, temperature displays and gas temperature control valves, which are wideyl applied in electric water heater, electric oven, washing machine, plastic machinery, west cabinet equipment, fuel gas oven, gas air-condition, Turkey cooker, boiler pump, central air-condition heating, ventilation system and such support control products.
The companys is development, production of metallized film capacitors. It is equipped with advanced production equipment and detection instruments. The products are of stable and reliable quality and widely used in fields such as communication, household appliances, power supply, green lighting, commputer, industrial control, electric tool, auto-eletctonics, etc.
Since the foundation of the company, we have always insisted on the principle of paying equal attention to talents and products; Absorbing experienced engineers and professional managing personnel. Basing on strict management, high techonlogy, advanced mechanical facilities, perfect test technique, it can provide the user whit high quality products and good fater-sales service. The main products have been certified to CSA, VED, CQC and CE. The quality control system has been wholly carried out in conformity with ISO. The products mand by our company are used with those of famous domestic manufacturers. The company has become the cooperation partner of foreign famous brand OEM. The products are well sold all over China and also exported abroad, selling well around China and exported oversas.
