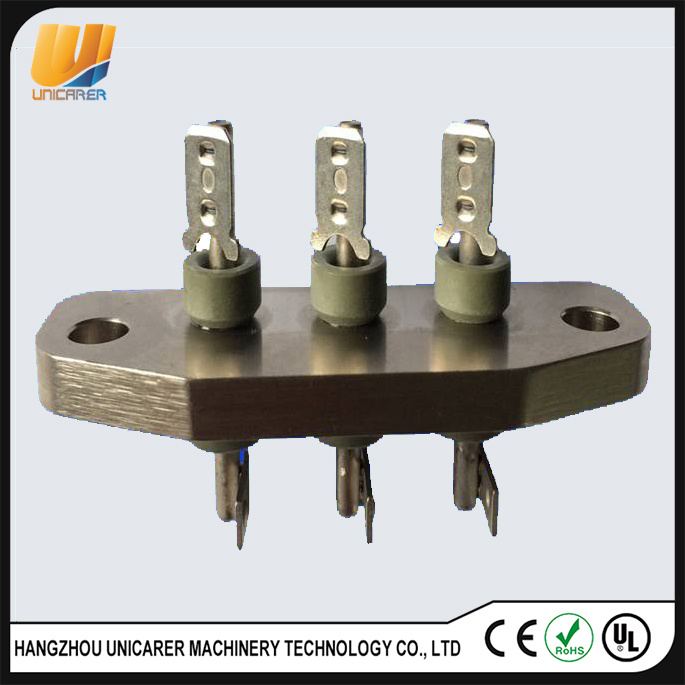

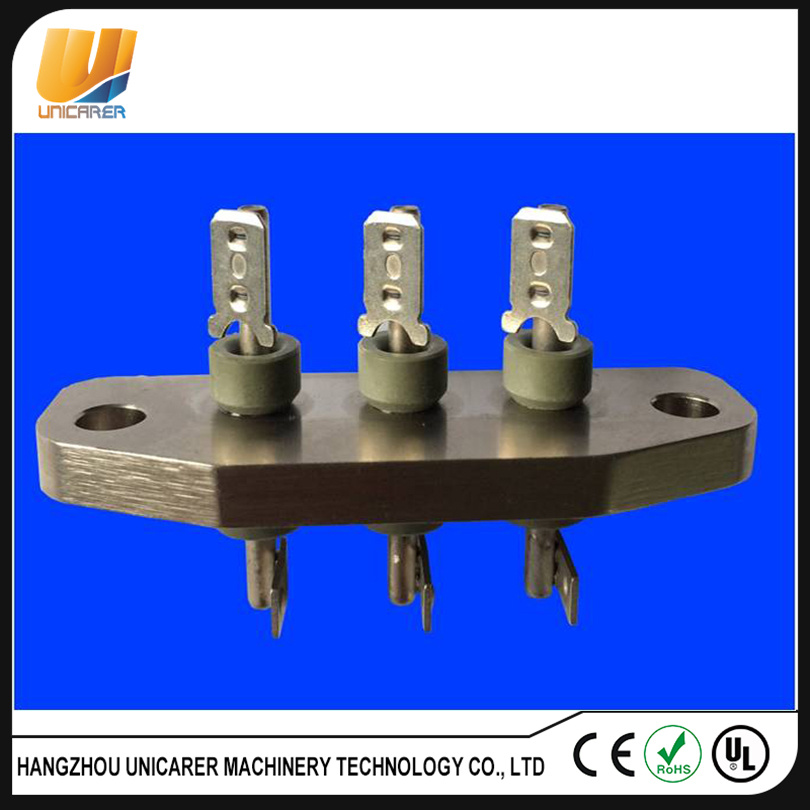

New Energy Electric Vehicle Compressor Plug Wiring Terminal Sc-4-Byd

New Energy Electric Vehicle Compressor Plug Wiring Terminal Sc-4-Byd
Price: US $ 5.56-5.86/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile


Electric Vehicle Compressor Terminal sc-4-BYD

Product parameters

NoItemStandard
1 Thickness 4.5±0.05 mm
Dimension 71.5 * 23.5 *4.5 mm
Pin 3.2 * 31.5 mm
2 Surface Bright and clean,no glass crack
3 Insulation resistance DC500V,500MΩ
Electrical strength AC3000V,0.5mA,1s
Max current 35A
4 Work temperature Subzero 35ºC-125ºC
5 Airtightness 4MPa,1min no leakage
Heat shock     Temprature 265ºC,10S,no leakage after 4MPa
Weld strength Torque force no less than 30kgf.cm
6          Surfacing              Chemical nickel2-4um


Company Profile

Our company is focus on professional design and produce for the glass t o metal seal products, it is used the most advanced CO atmosphere sintering furnace in the world, the production range is related to all of the high or low temperature glass to metal seal products, the application range is from low current sensor 20amp to 900amp power connector, and the company also have enough technology level to design and produce according to the customer requirements. The company passed ISO9001, RoHS and UL certificate, it will ensure that the product a reliable sealing, insulation, resistance and mechanical pressure. At present, the company products are mainly used for the air conditioner, refrigerator compressor, new energy vehicle air compressor, commercial screw compressor of the air conditioner, sensor, Lithium battery cover, and LED bracket, it is widely used in commercial, aviation, aerospace, millitare and other fileds.
WORKSHOP/TEST






Prod Model: SC-4-BYD
Application: Car
Environmental Protection: Resistance to Environmental
Connection Mode: Push-Pull Connection
Contact Termination Form: Screws Fixed
Shape: Irregular
Production Process: Sintering
Brand: Unicarer
Hangzhou Unicarer Machinery Technology Co., Ltd. is a subsidiary company of Fuyang Kehong Machinery Co., Ltd. We specialize in manufacturing: Precision CNC machining parts, hardware components, standard and non- standard parts, general machinery and photovoltaic components ect. We provide the complete machining-service: Turning, milling, drilling, grinding, boring, bending, stamping, welding, surface treatment, laser machining, wire EDM, and other CNC machining fabricating according to samples or drawings from customers.

We have the main equipments over 20 units: Vertical machining centers-6 sets, Horizontal machining center-1 set, CNC lathes-4 sets, , plain milling machine, plain Lathe, Surface grinder and others. Our testing equipments: Switzerland electronic digital display measuring grohe, Rockwell apparatus, micrometer, vernier caliper, etc.

"Excellence, Responsibility, Science"is the pursuit of our company. We have the united team with scientific technology and responsible attitude. It is the key base for making the excellent quality & service for you and achieving the win-win business.
