Application

S160-SCF Series Moulded Case Circuit Breaker is the Ultimate Safety Breaker. It has specifications which exceed international standards for safety.Direct opening action - recommended by IEC standards for machinery safety - is a feature of most models.A unique safety lock system for plug-in MCCBs ensures that the MCCB cannot carry current while being fitted or removed.

Features

•Easy accessory fitting •Double insulated MCCB •Clear contact status •Symmetrical design •Low temperature rise •Higher harmonic immunity •High insulation voltage

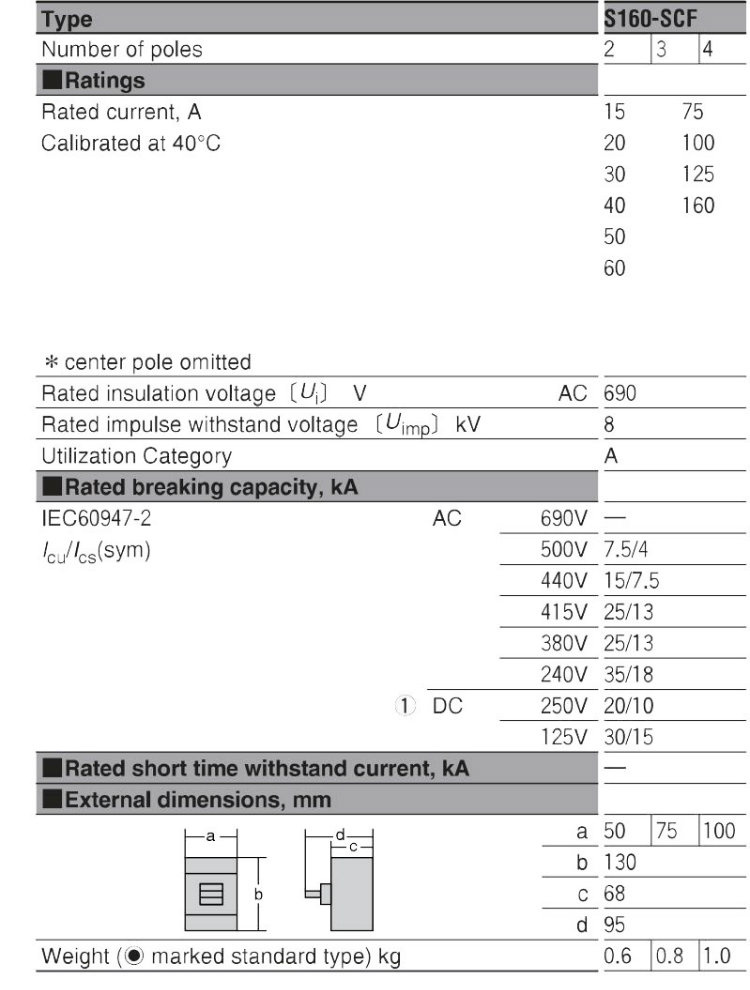

Technical Data

Overall Dimensions

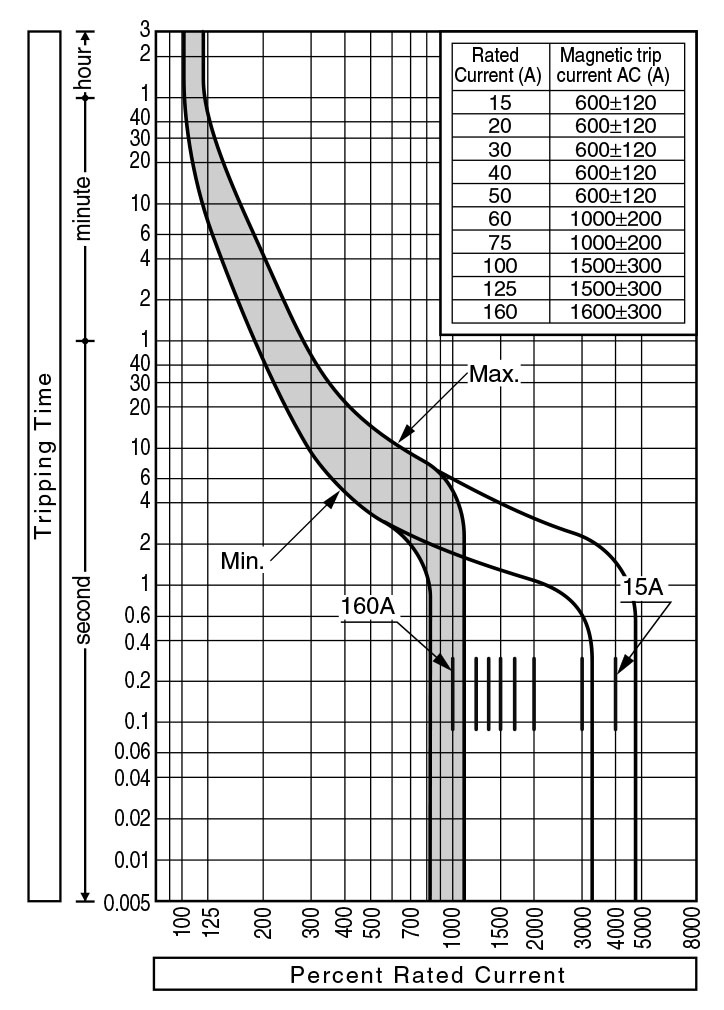

Time Delay Curves

Prod Model:	S160-SCF
Dimensions:	D:95 W:50/75/100 H:130
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CE
Poles Number:	2,3,4
