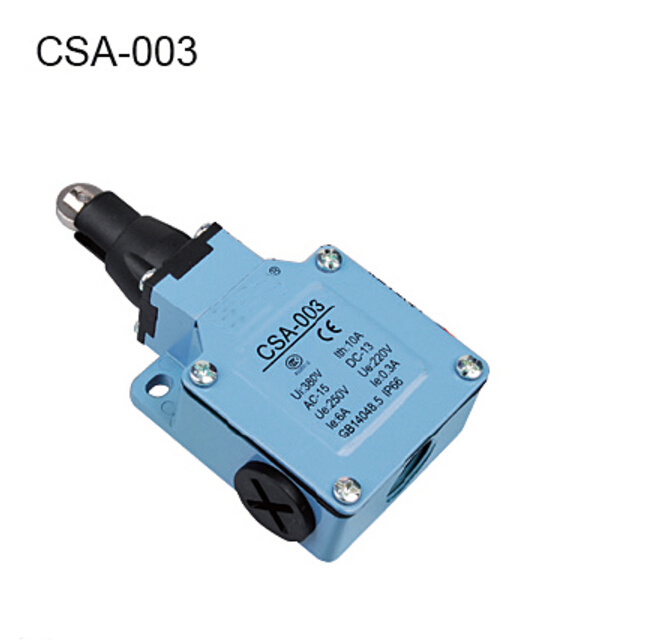

New Waterproof CSA Series Explosion-Proof Travel Switch CSA-003

New Waterproof CSA Series Explosion-Proof Travel Switch CSA-003
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

    Features
                           -Strong metal outer shell, swing arm max. 95
                           -Long life (20, 000, 000 mechanical operations)
                           -Stainless steel idler wheel, punch and spring
                           -Selective PG11 cable gland


Ratings

ModelCSACSA-001CSA-003CSA-012CSA-021CSA-031CSA-061CSA-071CSA-081
Operating forceOF Max.800g800g800g400g-cm400g-cm150g150g150g
Release forceRF Min.400g400g400g100g-cm100g-cm50g50g50g
Pre-travelPT Max.1.8mm1.8mm1.8mm20 º20 º30mm30mm30mm
Travel positionTP ± 10%2.0mm2.0mm2.0mm22.5 º22.5 º22.5 º22.5 º22.5 º
Movement differentialMD Max.1.2mm1.2mm1.2mm10 º10 º14 º14 º14 º
Over travelOT Min.4.0mm4.0mm4.0mm75 º75 º20mm20mm20mm
Total travelTT Min.5.8mm5.8mm5.8mm95 º95 º50mm50mm50mm
Rotary indexing    22.5 º22.5 º

Characteristics

Double Break MechanismINO+INC Force Break snap action
Rated Voltage/Current10(4)A, 125, 250VAC/6(2)A, 380VAC For inductance Load, CosØ =0.4
Contact Resistance25mΩ max. (initial value)
Insulation Resistance100mΩ min. (at 500VDC)
Dielectric Strength1000VAC, 50/60 HZ for 1 minute between terminals of the same polarity
1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts
1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Electrical Life500,000 at 10A 250VAC Resistive
Mechanical Life10, 000, 000 operations min. (under rated conditions)
Operating Speed5mm/s to 0.5m/s
Degree of ProtectionIP65
Ambient Temperature RisedMax 30ºC over ambient temperature at rated voltage/current
Conformed StandardsCenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
Operating Temperature-5ºC ~+65ºC (with no icing)
Storage Temperature-5ºC ~+65ºC (with no icing)
Ambient Operating Humidity95 RH Max.
Shock ResistanceMechanical durable: 1000m/s2 min.
Malfunction: 300m/s2 min.
Vibration FrequencyMalfunction: 10 to 55HZ, 1.5mm double amplitude
Terminal Screw Torsional Force6-8 kgf-cm
Other Screw Torsional ForceCover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
Bare Wire DiameterØ2 Max
Cable DiameterØ12 Max(IP 65 if use cable 8-9)

Operating characteristics


Models
TZ-8104TZ-8108TZ-8107TZ-8111TZ-8112/8122TZ-8166/8167/8168/8169
OF Max.750g750g750g900g900g150g
RF Min.100g100g100g150g150g-
PT Max.20º20 º20 º1.5mm1.5mm30mm
OT Min.50 º50 º50 º4mm4mm-
MD Max.12 º12 º12 º1mm1mm-
OP---26 ± 0.8mm37 ± 0.8mm-
Prod Model: CSA-003
Cable Gland: Selective Pg11 Cable Gland
Degree Of Protection: IP65
Rated Voltage/Current: 10A 250VAC
Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
