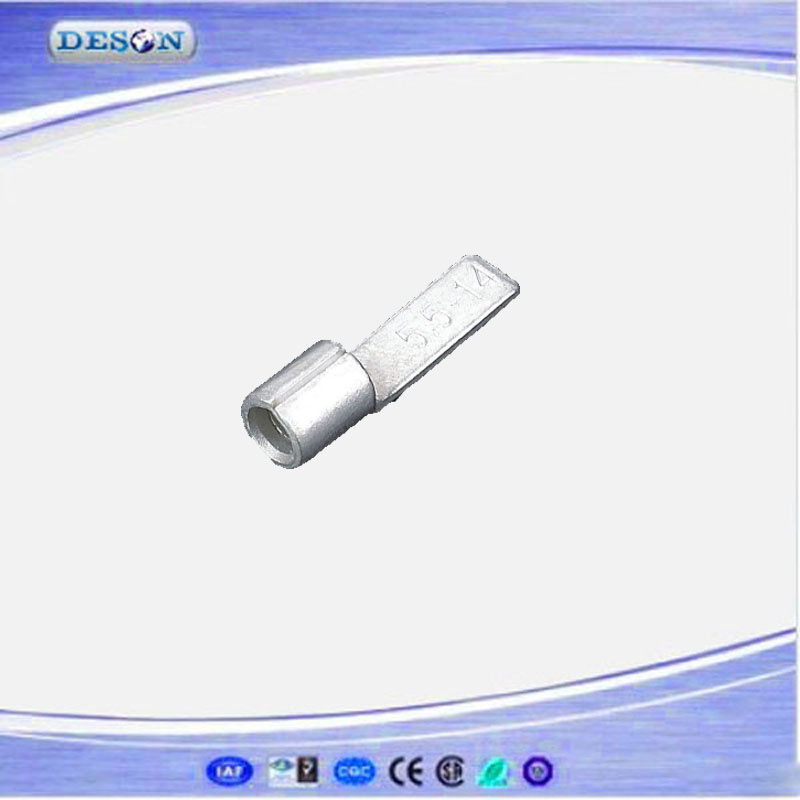

Non-Insulated Blade Copper Wire Terminal

Name: Non-Insulated Blade Copper Wire Terminal
Brand: all-electronics-online.com
SKU: 791519225
Availability: InStock
Rating: 4.8 (63 reviews)

Price:	US $ 2/Bag
Min Order:	1/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DBN
Insulated Material:	Non-Insulated
Terminal Material:	Copper
Max Electrical Rating:	600V
Material:	Copper
Application:	Conduct Electricity
Type:	Wire Terminal
Shape:	Wire Terminal
Character:	Wire Terminal
Brand:	Deson

Product Description

Non-Insulated Spade Copper Wire Terminal

Material	Copper
Plating	Tin
Insulation	Non
Color
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	CE ROHS

ITEM NO	Dimension						Wire range
ITEM NO	W	F	L	E	D	d1	A.W.G	Cable size
DBN1.25-9	2.3	10	14.8	4.8	3.4	1.7	22-16	0.5-1.5mm2
DBN1.25-14	3	14	18.8
DBNS1.25-18	2	18	22.8
DBN1.25-18	2.3	18	22.8
DBN2-9	2.8	9	13.8	4.8	4.1	2.3	16-14	1.5-2.5mm2
DBNS2-14	2.4	14	18.8
DBNL2-14	3	14	18.8
DBNS2-18	2	18	22.8
DBN2-18	2.3	18	22.8
DBN5.5-10	2.8	10	16	6	5.6	3.4	12-10	4-6mm2
DBN5.5-14	4.5	14	20
DBN5.5-18	4.5	18	24
DBN8-14	6	14	22.5	8.5	7.2	4.5	8	6-10mm2
DBN14-16	6	16	27	11	9.5	6.3	6	10-16mm2
