Non Insulated Tin Plated Copper Cable Types Crimping Terminal Lug
| Price: |
US $ 0.49-2.99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DTL-1 |
| Product Name: |
Compression Terminal Lug |
| Cable Size: |
16-300sqmm |
| Certificate: |
ISO9001,Ce,RoHS |
| OEM/ODM: |
Offered |
| Color: |
Sliver |
| Surface Treatment: |
Coated Tin Plating |
| Craft: |
Friction Welding |
| Conwell: |
Compression Terminal Lug Factory |
| Type: |
Compression Terminal Lug |
| Material: |
Al-Cu |
| Application: |
Wire Connecting |

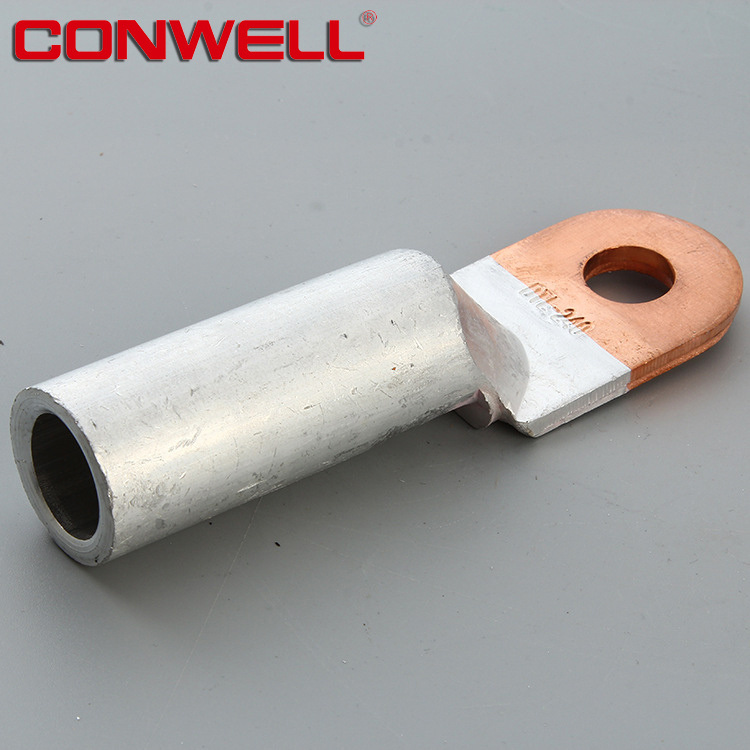

Product Description
coated tin plating compression terminal lug for connecting cableDTL series coated tin plating compression terminal lug for connecting cable are suitable for transition connection of the circular aluminum wires,hemicycle-sector aluminium wires,power supply cables in the distribution equipment and copper terminals of the electrical equipment.The material and copper terminals of the electrical equipment.The technology of friction welding is wonderfully adopted.

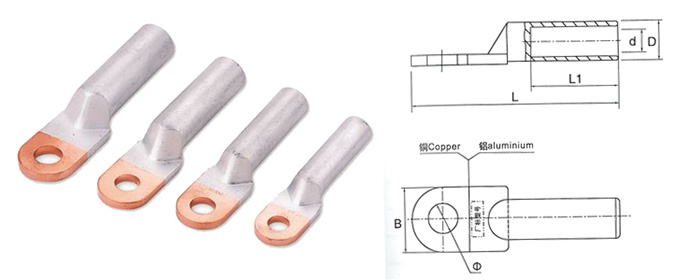

| Type | Dimension (mm) |
Φ | D | d | L | L1 | B |
| DTL-1-16 | 8.5 | 10 | 6 | 70 | 32 | 16 |
| DTL-1-25 | 8.5 | 12 | 7 | 75 | 34 | 18 |
| DTL-1-35 | 10.5 | 14 | 8.5 | 85 | 40 | 20.5 |
| DTL-1-50 | 10.5 | 16 | 9.5 | 90 | 42 | 23 |
| DTL-1-70 | 12.5 | 18 | 11.5 | 102 | 47 | 26 |
| DTL-1-95 | 12.5 | 21 | 13.5 | 112 | 50 | 28 |
| DTL-1-120 | 14.5 | 23 | 15 | 120 | 53 | 30 |
| DTL-1-150 | 14.5 | 25 | 16.5 | 126 | 55 | 34 |
| DTL-1-185 | 16.5 | 27 | 18.5 | 133 | 58 | 37 |
| DTL-1-240 | 16.5 | 30 | 21 | 140 | 60 | 40 |
| DTL-1-300 | 21 | 34 | 23 | 165 | 65 | 45 |
| DTL-1-400 | 21 | 38 | 26 | 170 | 70 | 50 |
| DTL-1-500 | 21 | 42 | 29 | 190 | 75 | 60 |
Package & Shipping
Package
1.Normal Package:Inner Box + Carton
2.Specific packaging can be made to order.
Shipping
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.
And also can send by sea or air, kindly send me the port of yours.
Our Service
Specializing in anchor clamps 14 years
Our canpany is one of the most professional manufacturers in the production of the aerial cable accessories in China,which specializing in insulation piercing connector, anchor clamp, suspension clamp 14 years.
Powerful factory
100 experienced workers to ensure the production of nothing but the finest quality ,most of them make cable accessories for 5 yeasr in our factory, someone of them make cable accessories for 10 years in our factory. we has 7 producton lines,supply ability reach about 15000 pieces insulation piercing connectors each day.
Customized service
Specific sizes, types & colors can be made to order. You can send us your details and we shall prepare individual quote upon receipt of your information.
About CONWELL
Business Type | Manufacturer |
| Location | Yueqing, Zhejiang, China (Mainland) |
| Year Established | 2004 |
| Main Porduct | 1.Insulation Piercing Connector |
| | 2.Anchor clamp |
| | 3.Suspension Clamp |
| | 4.Parallel Groove Clamp |
| | 5.Pre-insulated Sleeve & Lug |
| | 6.Bimetal Lugs |
| | 7.Insulator |
| | 8.Drop Fuse |
| | 9.Surge Arrester |
| | 10.Cable Resin Plastic Box |
| | 11.Plastic Junction Box |
| | 12.Other ODM Products |
| Testing Supplier Verification | Raw material from public company |
| Quality Management System | Test strictly done by ISO,EN UL and other relative standard |
| Service | We especially have advantage on OEM and ODM of all metal and plastic power connection accessories. We devote to providing full range of product chain and solution. |
Zhejiang Keyi Electric Group Co., Ltd., founded in 2004, is located in chengdong industry zone Yueqing, Zhejiang province, China. It is a hi-tech enterprise specialized in designing and producing insulation piercing connector, anchor clamp, suspension clamp, waterproof box and other connecting accessories according to NFC, IEC, EN, UL standards. Besides, it has achieved ISO9001 Quality Management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, CE, RoHS and other certificates, as well as many invention and utility model patents in China.
We are Electric Power Association member and government authorized quality supplier, only focus on ABC accessories scope for 13 years. Our concentration makes us professional and capable enough for all ABC accessories production and invention.

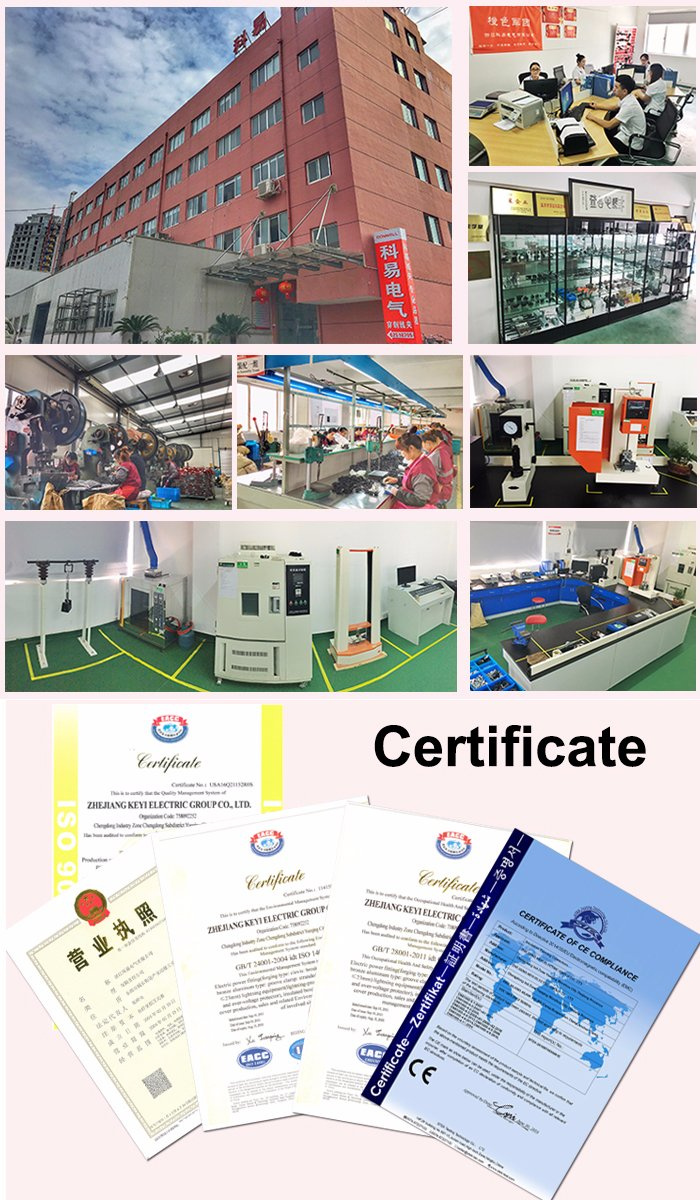

About Testing
Quality management system: Test strictly done by ISO, EN, NFC, UL and other relative standards. It has a lab (city-level technology research and development center) with full testing facilities for physical, chemical, electrical tests.
About Technology:
We have R&D team, technology team, quality team, mould development&production team.
Our products sell to all over the world. The main market is Europe. We have patient sales, good technical support, strict quality control, deep in ABC cable fittings. You will find business is an enjoyment. We will always be here for you!
