Non-Linear Junction Detector Simultaneously Detect Semiconductors and Metals

Prod Model:	FJT-C-S6
Transmitter Range:	2400.5MHz -- 2485.5MHz
.Signal Form:	Pulse Duty Cycle of 5%
Pulse Width:	500us
Transmitter Power:	3.7W(Peak), Power Error: ± 15%.
Second Harmonic Receiver Frenquency:	4801MHz -- 4971MHz
Second Harmonic Receiver Sensitivity:	-140dBm
Third Harmonic Receiver Frenquency:	7201.5MHz -- 7456.5MHz
Third Harmonic Receiver Sensitivity:	-140dBm
Working Time:	More Than 6hours
Size:	150*120*1400mm
Type:	Anti-Spy Detector

Product Description

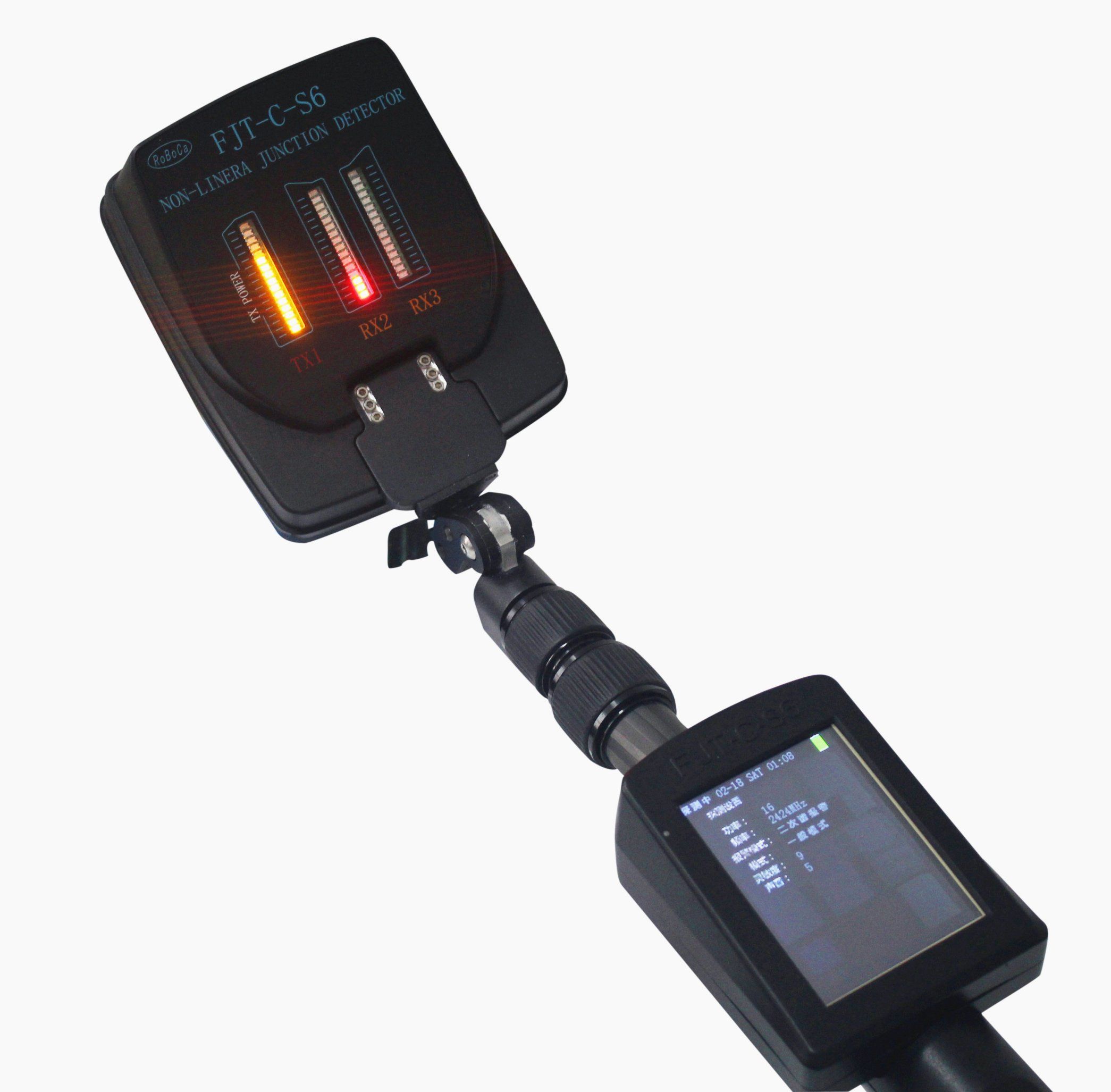

Non-Linear Junction detector FJT-C-S6

Model: FJT-C-S6

1.Overview

FJT-C-S6
nonlinear junction detector is used for search and location of electronic devices both in active and switch-off state. The detector operation is based on the property of semiconductor components to generate a harmonics response when radiated by a microwave probing signal.
FJT-C-S6 non-linear junction detector  can  automatically find the best reception frequency channel without interference, it can be used in a complex electromagnetic environment. Power output can be automatically adjusted to facilitate the work of the operating personnel to the maximum extent.
FJT-C-S6 can simultaneously detect semiconductors and metals, such as remote control, mobile phones, cameras, listening devices, transmitters and so on.

2.Specification

1. Transmitter range:2400.5MHz -- 2485.5MHz

2.Signal form: Pulse duty cycle of 5%
3.Pulse width: 500us
4.Transmitter power:3.7W(peak), power error: ± 15%.
5. Second harmonic receiver frenquency: 4801MHz -- 4971MHz

6.Second harmonic receiver sensitivity:-140dBm
7. Third harmonic receiver frenquency: 7201.5MHz -- 7456.5MHz
8. Third harmonic receiver sensitivity: -140dBm
9.Working time:4hours
10.Size:150*120*1400mm
11.Weight:2KG

3. Packing list

 FJT-C-S6 non-linear junction detector------1 set
Earphone--------------------------1 set
Battery------------------------------------------2 pcs
Power adapter--------------------------------1 set
Manual book--------------------------------1 copy
