NPN Transistor Mmbt3904 (1AM) for General Purpose (Electronic Component)

Name: NPN Transistor Mmbt3904 (1AM) for General Purpose (Electronic Component)
Brand: all-electronics-online.com
SKU: 796861215
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 0.0226/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MMBT3904(1AM)

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

FEATURES
SILICON EPITAXIAL PLANAR NPN
TRANSISTOR

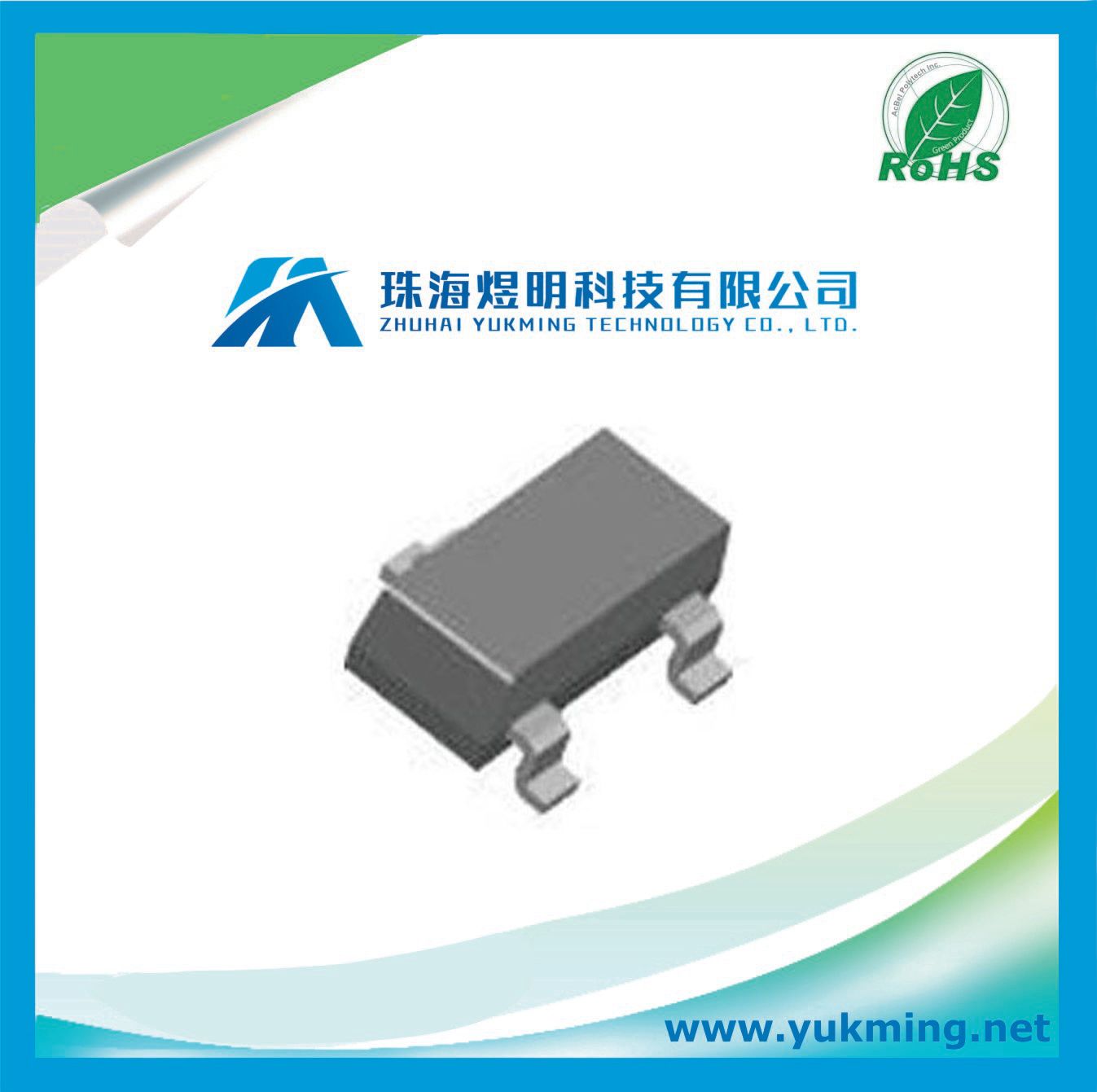

MINIATURE SOT-23 PLASTIC PACKAGE
FOR SURFACE MOUNTING CIRCUITS
TAPE AND REEL PACKING
THE PNP COMPLEMENTARY TYPE IS
MMBT3906

APPLICATIONS
WELL SUITABLE FOR PORTABLE
EQUIPMENT
SMALL LOAD SWITCH TRANSISTOR WITH
HIGH GAIN AND LOW SATURATION
VOLTAGE

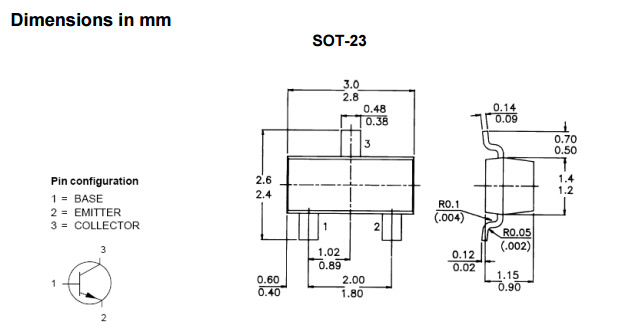

Mechanical Data

Case	SOT-23, Plastic Package
Terminals	Solderable per MIL-STD-202G, Method 208
Weight	0.008 gram

Category	Discrete Semiconductor Products
Family	Transistors - Bipolar (BJT) - Single
Manufacturer	Fairchild Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	200mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Power - Max	350mW
Frequency - Transition	300MHz
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
