Ntc Thermsitor of Epoxy Coated

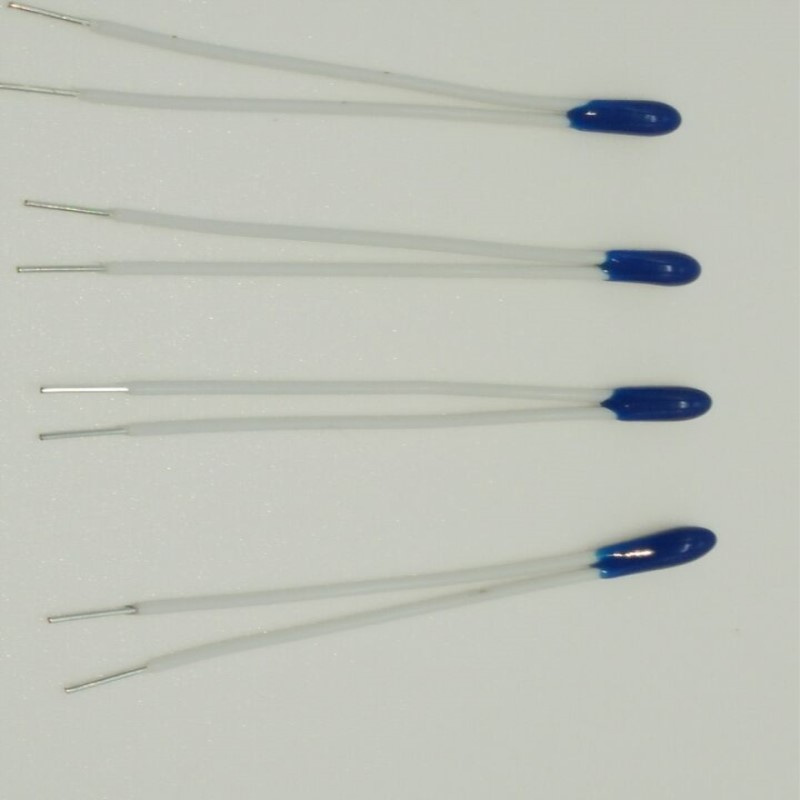

Name: Ntc Thermsitor of Epoxy Coated
Brand: all-electronics-online.com
SKU: 828787525
Availability: InStock
Rating: 5 (121 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MF5A Series
Installation Type:	Through Hole
Material:	Epoxy

Product Description

Specification:
  This kind of product is MF5A series of our company. We aim at provide products of good quality and good service to every customer and supplier.
  This series can be customized according to customer's requirements. This kind is customized as blue color and made of epoxy resin.

Features:
Epoxy coated,
Miniature designed and high accuracry,
Fast response,
Good stability,

Applications:
Temperature sensor,
Electronic calendar and electronic thermometer,
Temperature compensation.


Parameters:
R25°C: 1K-2000K ohms
R25°C precision value:  ±1%, ±2%, ±3%, ±5%, ±10%.
B25/50°C: 3270, 3380, 3470, 3550, 3700, 3950,4100,4600, etc.

Specification	R25ºC (KΩ)	B25/50ºC (K)	Disspation constant (mW/ºC)	Time constant (S)	Operation temperature range (ºC)
MF5A-2 -347-202	2	3470	ln stil air ≥ 2.1	ln stil air ≤ 16	-30~120
MF5A-2 -327/347-502	5	3270/3470
MF5A-2-347/390/395-103	10	3470/3900/3950
MF5A-2-395-473	47	3950
MF5A-2-395/400-503	50	3950/4000
MF5A-2-405-104	100	4050

Remark:
R25ºC interchangeability precision
B value precision:±1%
B value among 3000-4500K,and R 25ºC among 0.5KΩ-200KΩ can be custom designed.
