Product Description

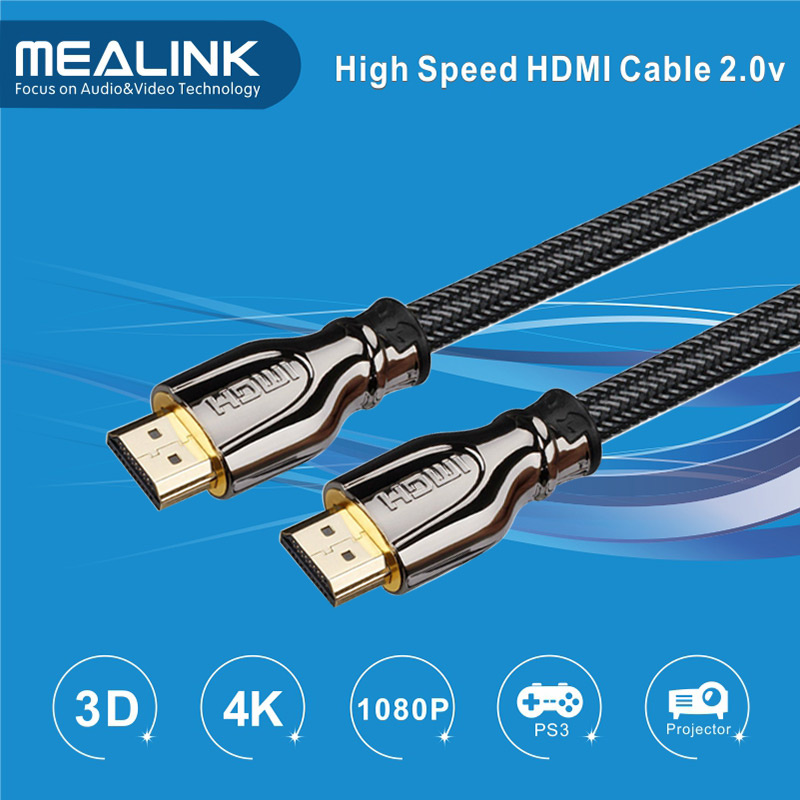

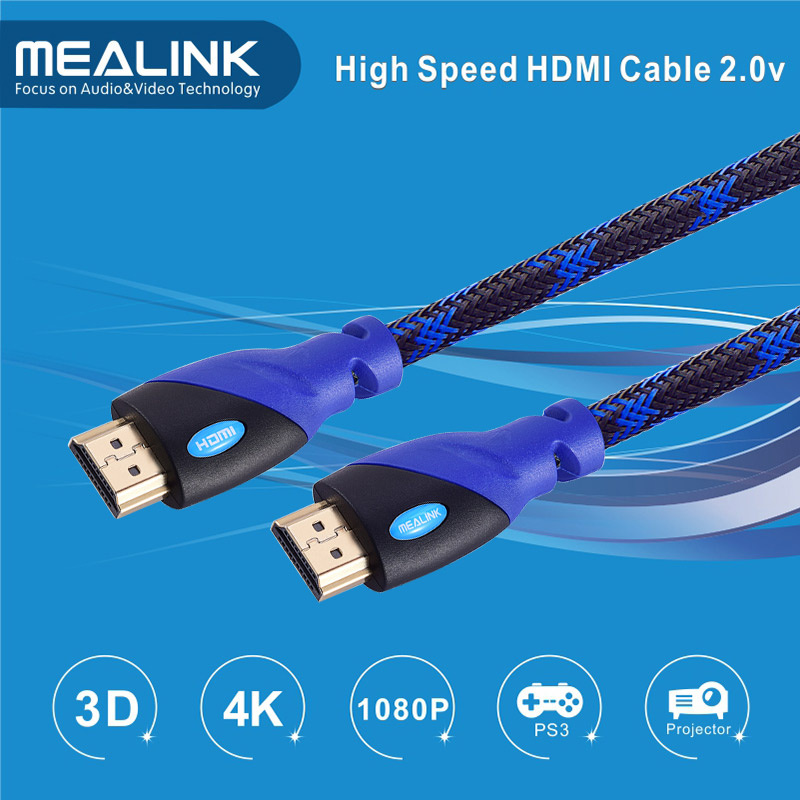

New Premium,nylon braided 24k Gold plated HDMI cable support HDMI 2.0 HDMI 1.4
1, Center conductor: high quality digital signal delivered by oxygen-free copper
2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference
4, Outer shield:95% AL+MG braid shield, prevents most low frequency noises and interference.
5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices.
6, High density triple shielding for maximum rejection of EMI and RFI
7, Transfer speed: 10.2Gbps
8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance
9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chromel AND MORE
History and development of HDMI Cable:
version 1.1:includes support for DVD audio
version 1.2:includes support for one bit audio,used for super audio CD
version 1.3:includes support for Dolby true HD and DTS-HD master audio,deep color,and increased bandwidth to 10.2G Bits
version 1.4:increased bandwidth capabicities to cater for the increased demands of 3D signals and a dedicated data channel to pass data at full ethernet speeds which will enable linked devices to share an internet connection
HDMI Cable parameter:
| Version | V1.4 |
| connector typeA | hdmi to hdmi |
| Length | 1m-10m option |
| Gauge | 26/28/30AWG |
| Outer Diameter | 7/8/9mm |
| Number of Conductors | 19+1 |
| Conductor Plating | pure copper |
| Shielding Level | triple |
| Shielding Type | EMI |
| yCbCr 4:2:2/4:4:4 | 4:4:4 |
| HDMI Connector Head Size | 15mm*5mm |
| Jacket Material | nylon braid |
| Built-in Equalizer | no |
| Category 2 Certified | yes |
| FCC Compliant | yes |
| HDCP Compliant | yes |
| CEC Compliant | yes |
| ROHS Compliant | yes |
| Supports DVD Audio | yes |
| Supports SACD | yes |
| Maximum clock rate | 340MHz |
| Maximum TMDS throughput per channel (Gbit/s) including 8b/10b overhead | 3.4 |
| Maximum total TMDS throughput (Gbit/s) including 8b/10b overhead | 10.2 |
| Maximum throughput (Gbit/s) with 8b/10b overhead removed | 8.16 |
| Maximum audio throughput (Mbit/s) | 36.86 |
| Maximum color depth (bit/px) | 48 |
| Maximum consumer resolution over single link at 24-bit/px | 4096×2160p24 |
| sRGB | yes |
| YCbCr 4:2:2/4:4:4 | 4:4:4 |
| 8 channel LPCM, 192 kHz, 24-bit audio capability | yes |
| Blu-ray Disc and HD DVD video and audio at full resolution | yes |
| Consumer Electronic Control (CEC) | yes |
| DVD-Audio support | yes |
| Super Audio CD (DSD) support | yes |
| Deep color | 48 |
| xvYCC | yes |
| Auto lip-sync | yes |
| Dolby TrueHD bitstream capable | yes |
| DTS-HD Master Audio bitstream capable | yes |
| Update list of CEC commands | yes |
| 3D over HDMI | yes |
| Ethernet channel | yes |
| Audio return channel (ARC) | yes |
