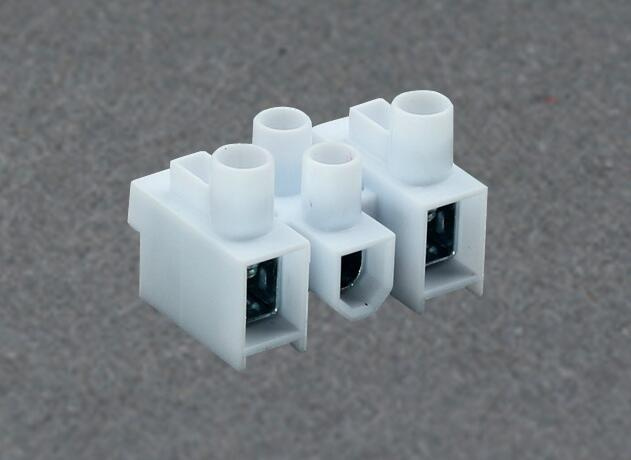

Nylon Terminal Block Connector (960-B3)

Name: Nylon Terminal Block Connector (960-B3)
Brand: all-electronics-online.com
SKU: 805622945
Availability: InStock
Rating: 4.9 (104 reviews)

Price:	Negotiable/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	960-B3
Name:	Nylon Terminal Block Connector (960-B3)
Rated Voltage:	450V
Rated Current:	24A
Connecting Capacity:	0.5-2.5"R"
AWG:	20-40 Sol/Str
Approvals:	Ce, VDE, CQC, UL
Housing:	Polypropylene(V2)/ Polyamide66(V2)
Clamping Unit:	Brass
Screw:	Steel, Zinc Plated (M2.6X5.4)
Color:	Natural (P), Natural (PA), Black
Application:	Cable
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Beleks

Product Description

Nylon Terminal Block Connector (960-B3)

Model	960-B3
Technical Data
Rated Voltage (V)	VDE	450	UL	300
Rated Current (A)		24		15
Connecting Capacity (mm²)	0.5-2.5"r"
AWG	20-40 sol/str
Approvals	CE, VDE, CQC, UL
Material
Housing	Polypropylene(V2)/ Polyamide66(V2)
Clamping Unit	Brass		Finish	Nickel-plated
Screw	Steel, zinc plated (M2.6x5.4)
Temperature	PP(V2): T85-T110
	PA66(V2): T110
Color	natural (P), natural (PA), black

Options:

Flat base/raised base/high heel
Large creepage for high voltage application
With/without wire protector

Krealux Electrical Appliances Co., Ltd. is a professional manufacturer specialized in research, production and selling of electrical parts. Our experienced team dedicates to development and manufacturing of terminal blocks, wire connectors, cord line switches and fuse holders, etc. The General Manager is invited to act as editorial board member for domestic standards of terminal blocks/wire connectors.

Krealux products are approved and certified as per safety standards of core countries/organizations of world economy. The company is also ISO9001: 2008 approved by UKAS. Our tailor-made fully automated and high-efficient production facilities ensure production capacity and stable quality of Krealux products. Customers are always satisfied with leading technologies, competitive price, reliable quality, on time delivery, prompt-and-attentive services provided by us.

Krealux brand, BELEKS, reaches top level of the industry with years' effort. Our professional and experienced team innovates persistently and has taken out more than 100 patents in China and abroad.

ODM and OEM projects are welcomed. Or any customization solution request, please feel free to contact us.
