Function Introduction

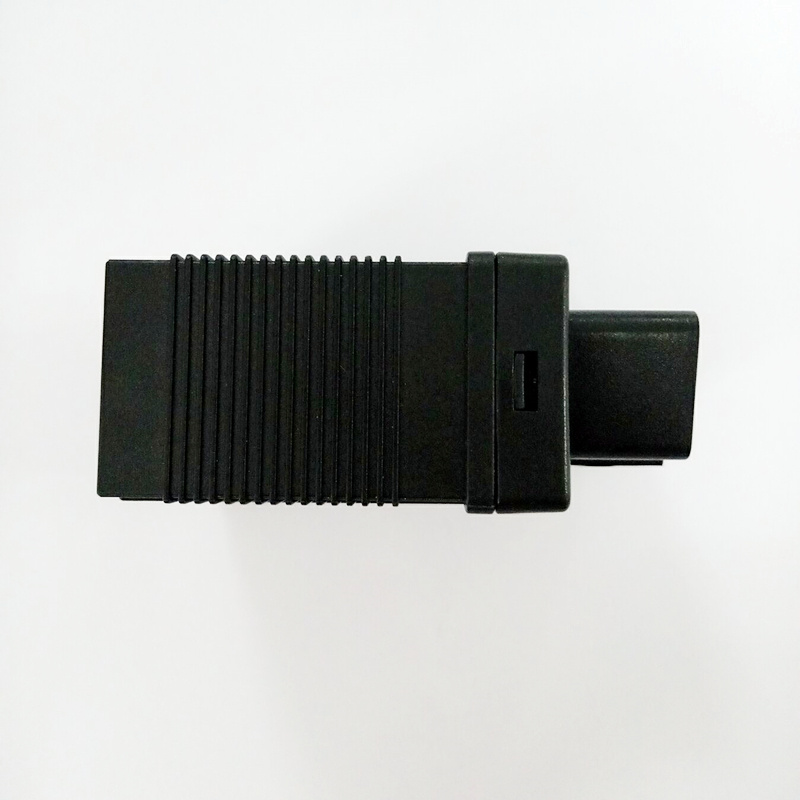

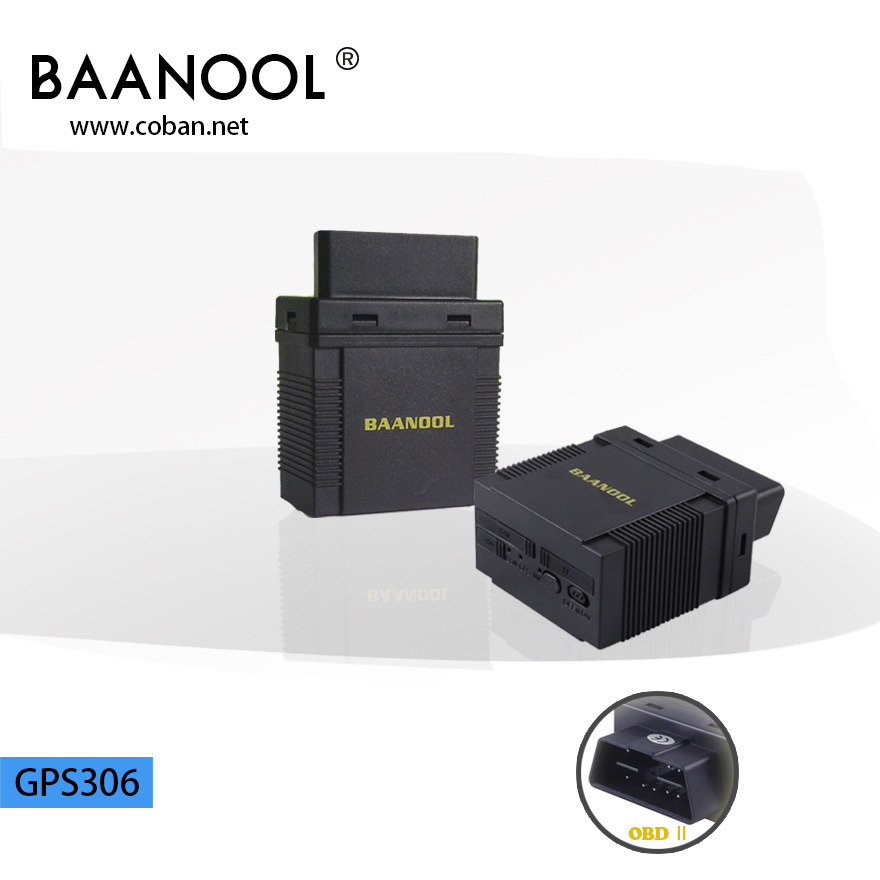

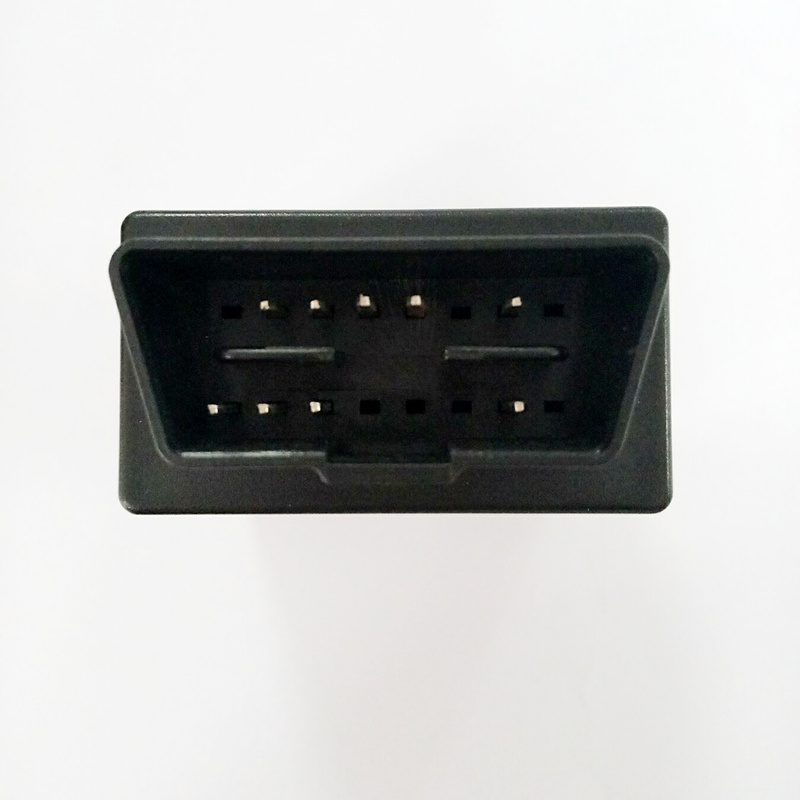

This product is based on GSM / GPRS network and GPS satellite positioning system, built-in GSM and GPS antenna. Insert into the car OBDII interface directly to read the data from car computer, you can locate and manage the vehicle remotely via SMS or GPRS. Easy to install, no wiring harness.
The new and improved TrackPort 2.0 is the easiest way to track a car or truck without worrying about battery life. Just plug the device into your car's OBD-II (On Board Diagnostic) port. Normally located under the driver's side dash,Use your vehicle's existing port to supply uninterrupted power to your tracking device. Switching cars? Unlike traditional hardwired tracking devices, this OBD GPS tracker can be easily moved from one vehicle to another with no tools and no effort. It's completely "plug and play."
Applications
Mainly used for vehicle management and location tracking services.
Package
Attention:
Optional accessories
MicroSD
OBD extended cable
IF you need Accessoories, Please contact us!
Function:
OBD compatibility(Protocol compatibility, Vehicle Compatibility)
Request for OBD data by SMS
Set mileage
Set Fuel tank volume
Notification of Vehicle fault
Vehicle maintenance notification
Single Locating(Auto track continuously, Track with limited times upon time interval, rack with unlimited, times upon time interval, Smart track upon time and distance interval)
Turning points update automatically
GPS drift suppression
Location based service (LBS) / Cell-ID locating
Exact street address
Voice Monitor
Data logging
Data Load
Decide how many times of alarm message
Alarm Functions(Low Battery Alarm, External Power off alarm, GPS blind Spot alert, SOS, Geo-fence, Multi-area management, Movement alarm, Over speed alarm)
Set up arm/disarm by SMS
Alarms under Arm State(ACC alarm, Built in Acceleration sensor Alarm)
Sleep Mode(Sleep by time, Sleep by shock sensor, Deep Sleep by shock sensor, No Sleep Mode)
Start Work at Specific Time
Forward the third parties' m
SIM card Balance Inquiry
Check the Vehicle State
Check IMEI
Terminal (local) Time Setting
Reset Hardware
TCP/UDP Switch
Less GPRS Traffic
Web Platform and Mobile APP instructions
Specifications
| Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Shipment and delivery
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q2. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. How to use the GPS Tracker ?
A:Prepare an common GSM card can make device to work.
Q6: Does the GPS can work anywhere ?
A: Yes, if places has GSM GPS signal, our device is quad band 850/900/1800/1900MHz.
Q7: Can I use my own tracking system and server ?
A: Yes, we can share the device protocol for free.
Q8: Can I make my own company LOGO and design on device case or color box ?
A: Yes, if for customize box: MOQ 500pcs; if for customize device case : MOQ 200-300pcs depends on model.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
