Od8mm Miniature Electrical Capsule Slip Ring ISO/Ce/FCC/RoHS,

Name: Od8mm Miniature Electrical Capsule Slip Ring ISO/Ce/FCC/RoHS,
Brand: all-electronics-online.com
SKU: 824422395
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	US $ 15/Piece
Min Order:	3/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Miniature Capsule slip ring---BTC008 Series
BTC008-4 Drawing(mm)

Parameters:

Mechanical :

Working speed	300rpm
Operating temperature	--40ºC~ +100ºC
Contact material	Gold to Gold
Bearing	Steel ball bearing
IP Grade	IP 54

Electrical:

Circuit	2-6
Current	mA~2A
Voltage	≤240V
Dielectric strength	≥500V@50Hz between each circuit
Insulation resistance	500MΩ@ 500VDC
Electric noise	≤7mΩ
Lead wire size	30AWG, UL, color Teflon, silver or tin plated
Lead wire length	200mm

Customization is available, OEM&ODM is welcome!

Further information,please feel free to contact our sales.

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Slip ring can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

Features of Miniature compact design high quality Capsule slip ring:

l Low noise

l Wear-resisting (gold contacting)

l Good impact resistance

l Signal and current compatible

l Workable in hostile environment(-40ºC~ +100ºC)

l Compact design

Alternatives of Miniature compact design high quality Capsule slip ring:

l Circuits

l Loading of each circuit

l Wire length

l Working speed

l Working temperature

l Housing material (metal or plastic)

Typical Applications of Miniature compact design high quality Capsule slip ring:

l CCTV Camera

l Robotic

l Medical equipment

l Exhibition equipment

l Total station

l Test equipment

l Revolve door

Advantages of slip ring manufacturer---ByTune:

l Affordable price

l Quality guaranteed

l Military standard

l Response within 24 hours

l Prompt delivery

l Reliable package & shipment

l Flexible & quick customization

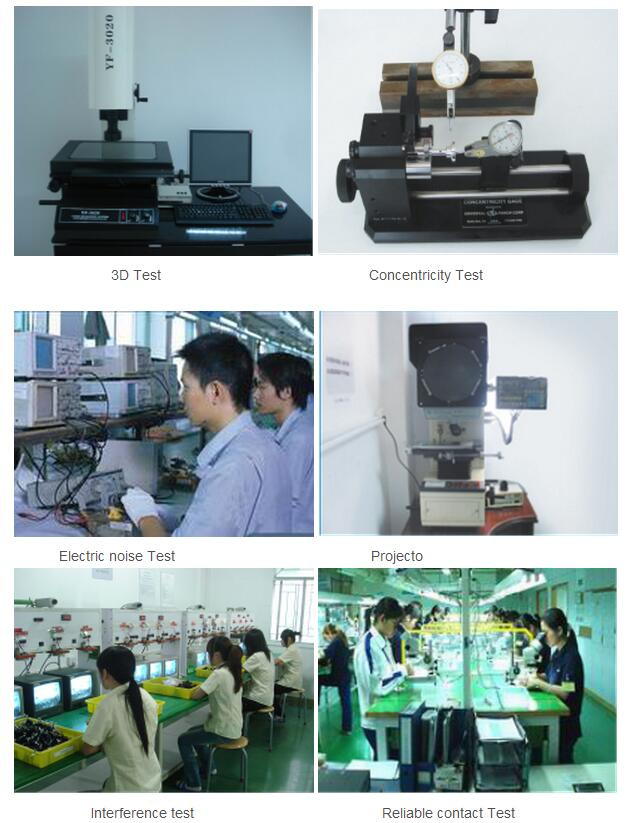

Measurement and Test:

Prod Model:	BTC008
Contacting Material:	Gold to Gold
Electrical Noise:	<7mohm
Working Speed:	350rpm
Temperature:	-40 C ~ +100c C , Higher Is Customized
Housing Material:	Metal
Flange:	Flexible Location and Dimension

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
