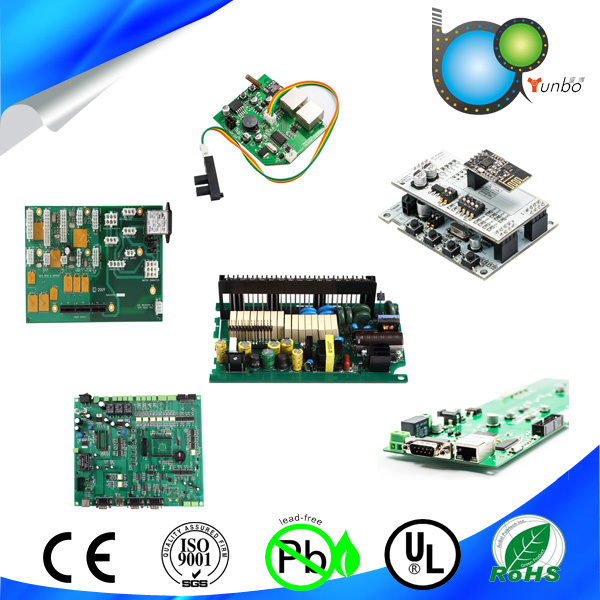

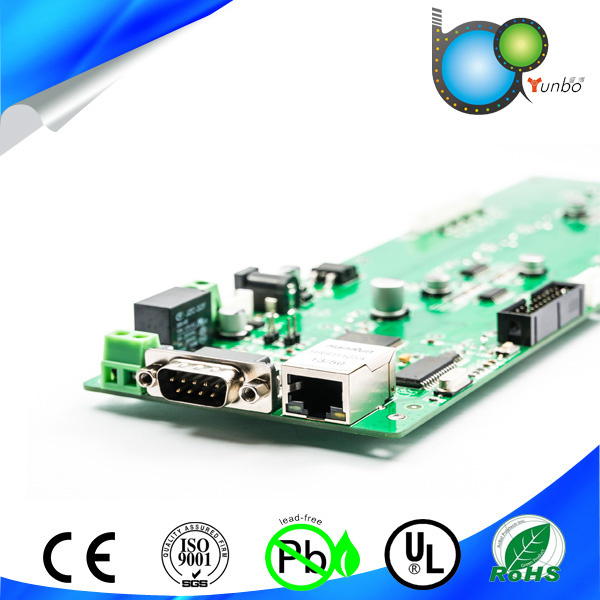

OEM Double Sided Rigid SMT PCB Assembly
Many of our clients work with us from the initial idea, through design and manufacturing to the finished product, while some utilize our manufacturing expertise alone. We have a dedicated team of talented engineers with strong experience. Our state-of-the art factories can produce more than 2 million PCB assemblies and small electronic appliances every year. Working with our strategic partners closely, we can deliver a wide range of Wireless Electronic PCB Control Board.General Manufacturing Capability :
| 1 | Layers | Single Sided,2 to 18 Layer |
| 2 | Board material type | FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more |
| 3 | Compound material lamination | 4 to 6 layers |
| 4 | Maximum dimension | 610 x 1,100mm |
| 5 | Dimension tolerance | ±0.13mm |
| 6 | Board thickness coverage | 0.2 to 6.00mm |
| 7 | Board thickness tolerance | Board thickness≤1.0mm: +/-0.1mm
1≤2.0mm: +/-10%
Board thickness>2.0mm: +/-8% |
| 8 | DK thickness | 0.076 to 6.00mm |
| 9 | Minimum line width | 0.10mm |
| 10 | Minimum line space | 0.10mm |
| 11 | Outer layer copper thickness | 8.75 to 175µm |
| 12 | Inner layer copper thickness | 17.5 to 175µm |
| 13 | Drilling hole diameter (mechanical drill) | 0.25 to 6.00mm |
| 14 | Finished hole diameter (mechanical drill) | 0.20 to 6.00mm |
| 15 | Hole diameter tolerance (mechanical drill) | 0.05mm |
| 16 | Hole position tolerance (mechanical drill) | 0.075mm |
| 17 | Laser drill hole size | 0.10mm |
| 18 | Board thickness and hole diameter ratio | 10:01 |
| 19 | Solder mask type | Green, Yellow, Black, Purple, Blue, White and Red |
| 20 | Minimum solder mask | Ø0.10mm |
| 21 | Minimum size of solder mask separation ring | 0.05mm |
| 22 | Solder mask oil plug hole diameter | 0.25 to 0.60mm |
| 23 | Impedance control tolerance | ±10% |
| 24 | Surface finish | Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger |
| 25 | Certificate | ROHS, ISO9001:2008, SGS, UL certificate |
| 26 | Acceptable file format | Gerber file,PROTEL series,PADS series,POWER PCB series, AutoCAD |

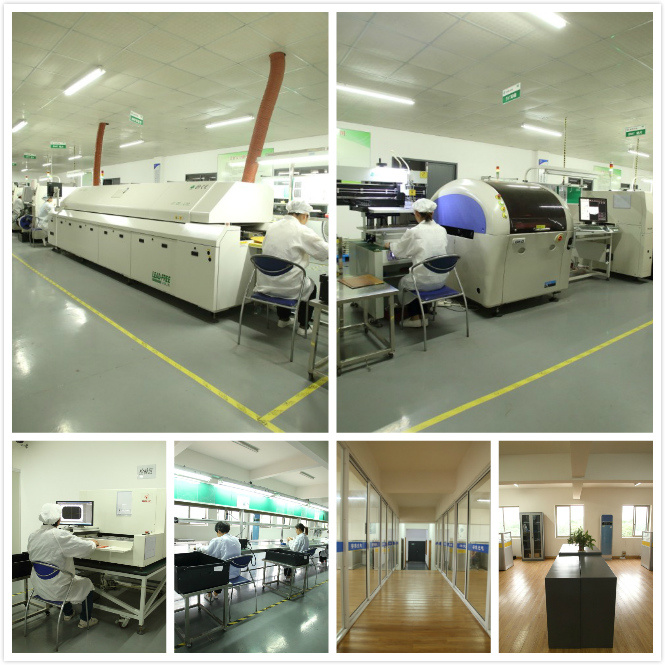

OUR FACTORY:
Why choose us:1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private informationTrade Terms:1. Payment: T/T in advance (Western Union is welcomed)
2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shanghai, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 100PCSContact us:
Changzhou Yunbo Electro-optics Tech Co., Ltd has modern business operation and management system, lead by technology and quality, service and marketing centred. We are a scale company focused on energy industry, electricity industry and intelligent control products with R&D, production, sales and service four in one. With abundant strength and rich experience, we provide our clients with lighting cabinet control, intelligent programmable PLC power management, processing control PCB, LED used for advertising exhibition equipment, automatic parking system, automatic ticket system, medical lighting system and industrial controlling products. And We also provide OEM&ODM services.
In long-term production practice, we are strictly with ISO9001: 2008 management system and our products are approved by CE, RoHS. Also we have developed good business relationship with well-known international enterprises, like THE BRIGHT GROUP who provide gaming products for global gaming industry, and Korean LS original from LG and so on.
We truly believe that, with our continuous effort, we will gain mutual benefit, reach a win-win result and March forward hand in hand with all our partners.
