OEM Factory Air Conditioner Phone Remote Control

Prod Model:	TR-001(TR-300S)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Net Weight:	180g
Operation Temperature Range:	0-40
Transmitting Distance:	8m
Telephone Control Signal:	Dtmf
Application:	Audio / Video Players
Signal Transmission:	IR Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Voltage:	12V
Material:	Plastic
Battery Type:	AAA Battery
Type:	Telephone Control

Product Description

Product name:OEM Factory Air Conditioner Telephone Remote Control

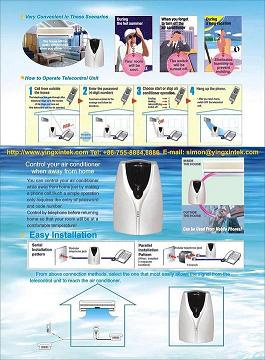

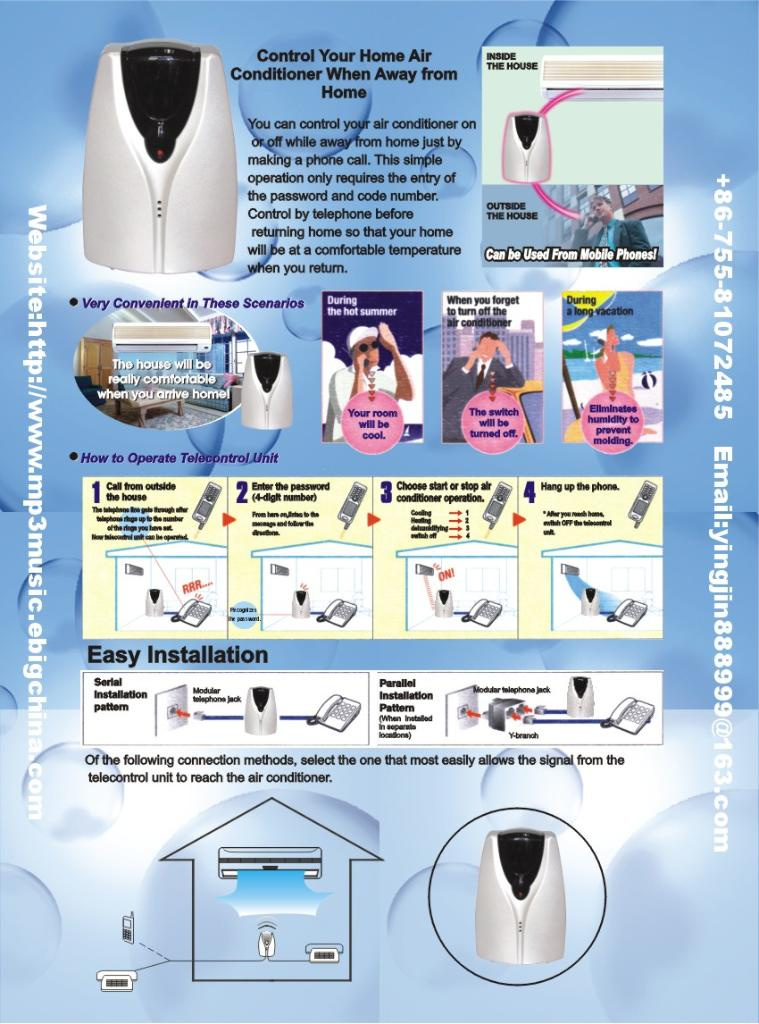

Control your air conditioner while you are away from home/office.
You can control your air conditioner while away from home/office just by making a phone call. This simple operation only requires the entry of password. Control by telephone before returning home/office so that your room will be at a comfortable temperature when you return. It can be used by mobile phones.

Model TR-001 features:
1) Control your air conditioner by phone call
2) Record various remote control codes, compatible with most air conditioners
3) Easy operation method and stable performance
4) Password safeguard
5) Speech guildance, easy to choose the operations you want
6) Comes standard with cooling, heating, dehumidification and switch off functions
7) To be easily installed on benchtop/wall, plug-and-play
8) Self-taught function, can be used for the control of other home appliance such as TV.
For business partners:
No matter you are a manufacturer/distributor/accessory provider of the air conditioners or an architecture contractor or upholsterer, it is a good choice for you to own this product.

What we provide you is not only the finished goods, but also the full package of blue print as well as MCU design, we can also provide you custom-built parts as per your special requirements.

Key words:
Teleoperate unit for air conditioner, Telecontrol unit for air conditioner, Telephone remote controller, Telephone remote controller for air conditioner, Intelligent remote controller for air conditioner.

For more detailed information please e-mail us.

Specifications:
Telephone control signal: DTMF
Wires applied: Simulation telephone wire. Press button/dial
Power: 4.5V (Alkaline batteryX3)
Weight: 202g (including the batteries)
Dimensions: 132WX90DX38H(mm)
Operation temperature range: 0-40
Remote control signal: Infrared Ray
Transmitting distance: 8m
Installation: On desktop/wall

Advantages:
1) Economical, competitive price
2) Simple operation routing upon automatic speech guidance
3) Small profile, to be easily installed
4) Self-contained, no need to change any configuration of the telephone or air conditioner, non-interferential
5) Build-in self-taught function, can develop a lot of new functions to fulfill your demands
6) FCC and CE certified
7) Optional languages: English, Mandarin, Italian
We have strong custom-built ability to fit customers' special requirements.

Shipping Information:
1) 1PC unit in a 175X175X50mm
Gift box (without batteries)
Net weight: 180g, Gross weight: 281g
2) 20PCS units with gift boxes in a 360X360X240mm carton (without batteries)
Net weight: 5.7Kg, Gross weight: 6Kg
3) 40PCS units with gift boxes in a 500X370X370mm carton (without batteries)
Net weight: 11.4Kg, Gross weight: 12Kg


Payment Details	T/T
Minimum Order Quantity	500pcs
Lead Time	7 days
Standard Met	FCC,CE

FAQs:

Q: What's your acceptable payment terms? A: All T/T, Western Union, paypal  are acceptable.



Q: Can you send sample to us before Mass Production? A: We can send sample before mass production and we are willing to send sample first, it's a good way for you to check our product quality and service quality.



Q: What's your mass production lead time? A: 15 days after confirming the order and receiving the deposit.



Q: What's your MOQ? A: For different product,the MOQ is different(we can negotiate).And the price is related to your quantity(we can negotiate too).



Q: What is lead time? A: If we have it in stock, we can ship it to you within about 3-5 working days.  If we don't have it in stock, the lead time will be 10-30 days.  If the product is urgent,please tell us and we will try our best to satisfy you.
