| Prod Model: |
SMD 500-1500W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packing Size: |
425*400*454-422*264*275 |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overvoltage |
| Application: |
It , Hospital,Telcom,Equipment. |
| Brand: |
Kemapower |
Product Description

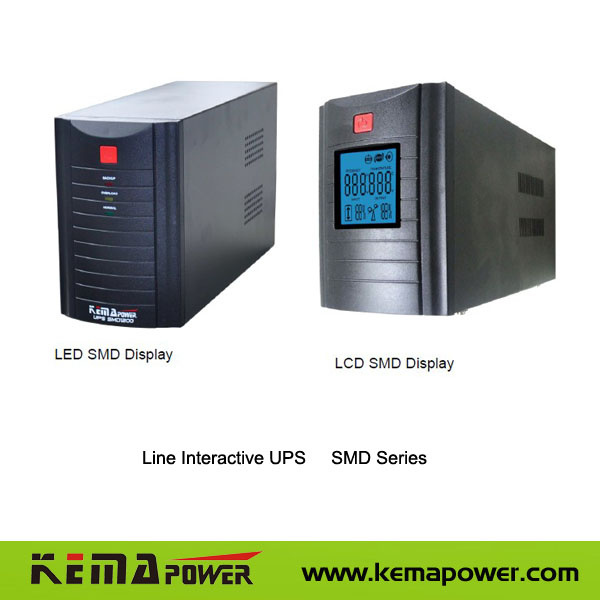

Offline Line Interactive UPS (SMD 500-1500W) * I/P: 220VAC or 110VAC , O/P:220VAC or 110VAC ± 5%
* Capacity:500VA / 600VA /1KVA /1.2KVA/1.5KVA
* Output: PF 0.6, Modified sine wave
* Transfer Time:4-6ms normal ,max 8 ms
* DC Voltage:500VA/600VA:12VDC,1K/1.2K/1.5KVA:24VDC
* Bat.:500VA / 600VA:1PCS 7.2AH,1KVA /1.2KVA:2PCS,7.2AH 1.5KVA:2PCS 9AH or external battery.
* Full Bridge, CPU Control,USB
Key features:1. CPU Control, SMD Technology, Line interactive UPS
2. Boost and Bluck AVR
3. SMD Technology
4. Protection for Short circuit, overload and battery low voltage
5. LED indication and audible alarm function
6. Silence Setup
7. Intelligent battery management
8. AUTO Restart function when AC recovers
9. Off charge function
10. Cold start function
11. RJ11/RJ45 is option
12. USB is option
13.LCD display is option

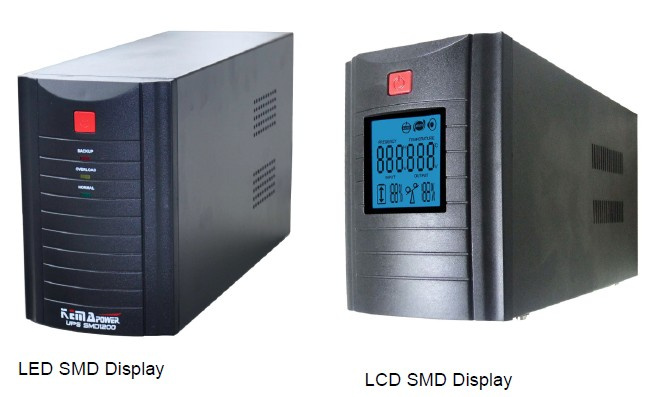

Product Show:

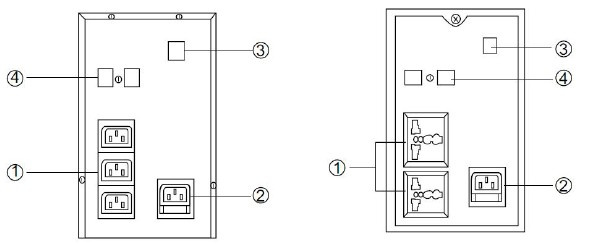

Back panel
1.Output receptacles
2.AC input with AC fuse
3.USB computer
4. Network/fax/modem/surge Protection
Technical specification
| ITEM | MODEL | SMD500 | SMD600 | SMD800 | SMD1000 | SMD1200 | SMD1500 |
| Capacity | 500VA/300W | 600VA/360W | 800VA/480W | 1KVA/600W | 1.2KVA/720W | 1.5KVA/900W |
| Input | Input Voltage | 75-150 or 145-290+-5VAC |
| Input Frequency | 50/60HZ+-5% (AUTO Sensing) |
| Output | Wave Form | Modified Sine Wave |
| Output Voltage | 120/220/230/240VAC;50-127V,100-255V |
| Transfer Time | 4~6ms normal ,Max8Ms |
| Output Frequency | 50.0/60Hz±1.0Hz (Battery Mode),follow Main while AC Mode |
| Battery And Charger | Battery protection | FUSE |
| DC Voltage | 12VDC | 24VDC |
| Standard UPS | 1*7AH | 1*7AH | 1*9AH | 2*7AH | 2*7AH | 2*9AH |
| Battery |
| Backup time | 3-20Minutes(1PC+15 inch CRT) | 30-60Minutes(1PC+15 inch CRT) | 40-80Minutes(1PC+15 inch CRT) |
| Protection | Over charge and over discharge,short Circuit,Overload |
| Display | LED display for AC/ DC mode and Fault. LCD is option |
| Alarm | Alarm while DC mode/ Battery low / Overload /Battery replacement. |
| Enviromental Characteristics | Ambient Temp. | 0 to 40 degree celsius |
| Relative Humidity | 0% to 90% |
| Storage Temp. | -15 to 40 degree celsius |
| Noise Level | 40dB(Max) |
| Product Size | 305*85*140 | 305*85*140 | 305*85*140 | 324*100*153 | 324*100*153 | 324*100*153 |
| Packing Size (MM) | 380*278*443 | 380*278*443 | 380*278*443 | 415*410*298 | 415*410*298 | 415*410*298 |
| PCS/CTN | 4 | 4 | 4 | 2 | 2 | 2 |
| Gross Weight /CTN (KG) | 22.8/CTN | 22.8/CTN | 26/CTN | 22.8/CTN | 24.2/CTN | 25.6/CTN |
