Oil Immersed High Voltage Fuse for Transformer Protection Oefma

Name: Oil Immersed High Voltage Fuse for Transformer Protection Oefma
Brand: all-electronics-online.com
SKU: 737084295
Availability: InStock
Rating: 4.8 (103 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

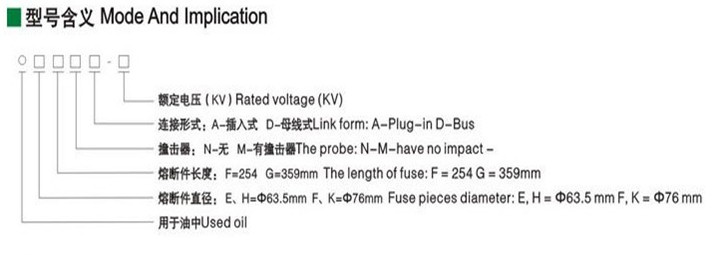

Prod Model:	OEFMA OHGMA OFGMD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

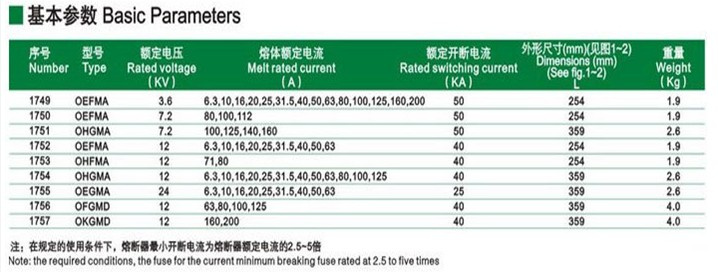

Rated Voltage 3.6 -24kv:	Rated Current up to 200A(3.6kv), 160A(7.2kv), 125A
Breaking Capacity:	High
Standard:	GB15166.2,IEC282-1,Bs
Shape:	Tubular Structure
Type:	High Voltage Fuse
Usaga:	High Voltage Electrical Equipment

Product Description

Product Description

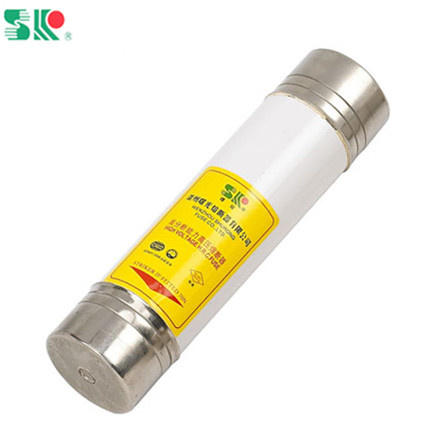

Oil immersed high voltage fuse for transformer protection

Key Specifications/Special Features:

1. Oil-immersed
2. High breaking capability
3. High voltage current limiting fuse
4. Suitable for electrical power system of AC 50Hz, rated voltage 36. -24KV, rated current up to 200A(3.6KV), 160A(7.2KV), 125A(12KV) and below. Circuit for protecting transformers and other power equipment from overload and short-circuit.
5. High-pressured fuse conforms to the national GB15166.2 standard and the international electrical committee IEC 60282 standard as well as German DIN standard and British BS standard.

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
