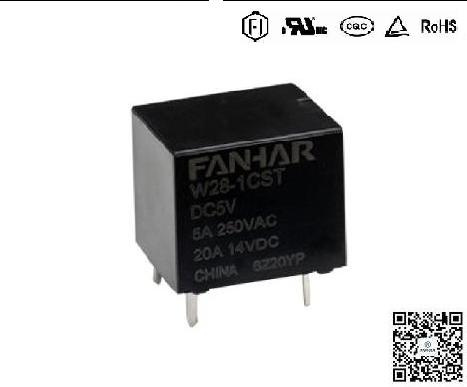

Model NO.: W28
Contact Form: 1A = 1 OPEN 1C= Transformation
Product protective: S=Sealed Nil= Soldered
Contact material: T=AgSnO2
Coil Power: Nil = Standard type L = Sensitive type
Dimension: 15.5*12*13.8 MM
Weight: Approx 6g
Trademark: FANHAR
Origin: China
Product Description
1. 20A contact switching capability
2.Ultra-small, standard printed board leading foot
3. UL insulation class: F grade
Contact Data:
| Contact Form | 1A 1C |
| Rated load | 20A 14VDC
5A 250VAC |
| Max Switching Voltage | 250VAC/ 30VDC |
| Max Switching Current | 20A |
| Max Switching Capacity | 1250VA/280W |
| Min Allowing load | 5VDC 100mA |
| Contact Resistance | 100mΩ (at 6VDC 1A) |
| Insulation Resistance | 100MΩ (at 500VDC) |
General Data:
| Withstand Voltage Between open contacts | 750VAC 1min |
| Between coil and contacts | 750VAC 1min |
| Withstand impact voltage | Between coil and contacts 4.5kv(1.2X50us) |
| Operate Time | Max.10ms |
| Release Time | Max.5ms |
| Mechanical life | 10,000,000 ops ON/OFF = 0.1s/0.1s |
| Electrical life | 50,000 ops ON/OFF=1s/9s |
Impact Resistance Misoperation
Durability | 100m/s² Approx10G
1000m/s² Approx100G |
Vibration Resistance Misoperation
Durability | 10 - 55 Hz 1.5mm Double Amplitude
10 - 55 Hz 1.5mm Double Amplitude |
| Temperature Range | -40ºC to +85ºC |
| Humidity | 5% to 90% |
| Installation type | PCB Mounting |
Coil Data:
Standard:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 5V | Below 75%
rated voltage (initial) | above 5%
rated voltage (initial) | 120mA | 41.7Ω | 600mW | 90-120 %
Rated voltage |
| DC 6V | 100mA | 60Ω |
| DC 9V | 66.7mA | 135Ω |
| DC 12V | 50mA | 240Ω |
| DC 15V | 40mA | 375Ω |
| DC 18V | 33.3mA | 540Ω |
| DC 24V | 25mA | 540Ω |
Sensitive:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 5V | Below 75%
rated voltage (initial) | above 5%
rated voltage (initial) | 72mA | 69.4Ω | 360mW | 90-120 %
Rated voltage |
| DC 6V | 30mA | 100Ω |
| DC 9V | 40mA | 225Ω |
| DC 12V | 30mA | 400Ω |
| DC 15V | 24mA | 625Ω |
| DC 18V | 20mA | 900Ω |
| DC 24V | 5mA | 1600Ω |
