Omron Micro Switch Cm-1308X

Name: Omron Micro Switch Cm-1308X
Brand: all-electronics-online.com
SKU: 834822625
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Various of actuators, action position is adjustable (such as CM1701)
High switch on and off capacity(15A)
High accuracy
Wide range of operation speed
Each type of CM series has solder terminal, screw terminal and tab terminal are selective
Add A for solder terminal, add C for tab terminal, blank for screw terminal

Models	CM1300	CM1301	CM1303	CM1305	CM1306	CM1307	CM1308
Models	CM1300	CM1301	CM1303	CM1305	CM1306	CM1307	CM1308X
OF(Max.)	350g	300g	300g	350g	350g	350g	350g
RF(Min.)	114g	50g	50g	114g	114g	114g	114g
PT(Max.)	0.4mm	4mm	4mm	0.4mm	0.4mm	0.4mm	0.4mm
OT(Min.)	0.13mm	1.6mm	1.6mm	1.6mm	1.6mm	5.5mm	3.58mm
MD(Max.)	0.05mm	1.3mm	1.3mm	0.05mm	0.05mm	0.05mm	0.05mm
FP(Max.)		20.6mm	31.8mm
OP	15.9±0.4	17.4±0.8	28.6±0.8	28.2±0.5	21.5±0.5	21.8±0.8	33.4±1.2

Models	CM1309	CM1701	CM1702	CM1703	CM1704	CM1705	CM1743
Models	CM1309	CM1706	CM1702	CM1703	CM1704	CM1705	CM1743
OF(Max.)	350g	70g	160g	100g	160g	10g	160g
RF(Min.)	114g	14g	28g	22g	42g	3g	42g
PT(Max.)	0.4mm	10mm	5mm	7.1mm	2.7mm	20mm	2.7mm
OT(Min.)	3.58mm	5.6mm	2mm	4mm	2.4mm	5.6mm	2.4mm
MD(Max.)	0.05mm	1.27mm	1mm	1.02mm	0.5mm	3mm	0.5mm
FP(Max.)		28.2mm	24.8mm	36.5mm	32.5mm		43.6mm
OP	33.4±1.2	19±0.8	19±0.4	30.2±0.8	30.2±0.4	19±0.8	43.1±0.8

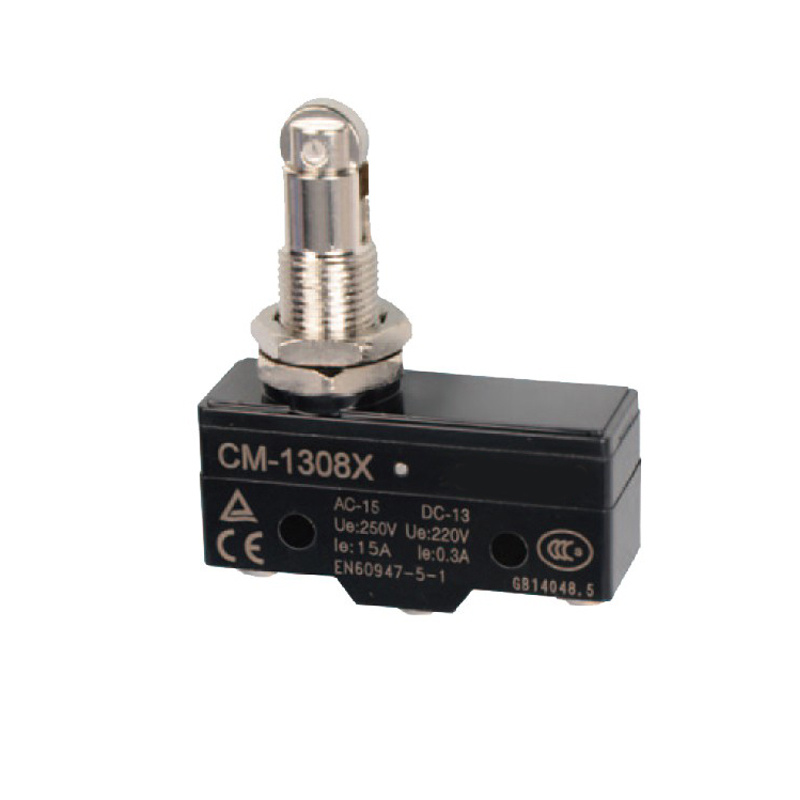

Prod Model:	CM-1308X
High Switch Current:	15A
Contact Form:	No/Nc
Max Voltage:	AC/DC 250V
Life:	10,000,000
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Breaking Capacity:	High-Current
Breaking Form:	Multi Joint Type
Environment:	Micro Switch
Brand:	Deson
