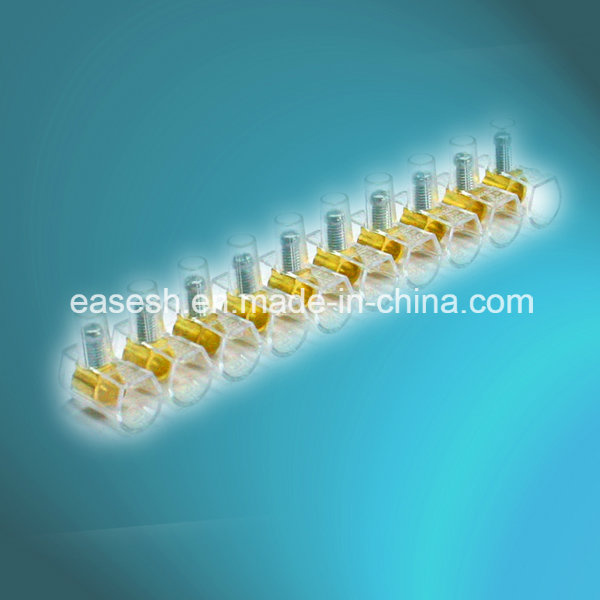

Cable Connector Single Screw Terminal Block with IMQHousing material: Polycarbonate (PC)
Inserts: Brass
Working temperature : - 35°C to 130°CScrews: Galvanised Steel
Standard: IMQ & CE & IP20
Color: Transparent
Feature: one-side entry; easy to be seperated by hands; flame retardant;
great bounce impact force and thermal stability; captive screws for easy wiringTechnical data:| EASE CODE | POLES | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) |
| W | Φ | D | H | h |
| COE-1.5 | 1/2/3/10 | 1.5 mm2 | 24A | 450V | 15.0 | 3.3 | 9.35 | 16.3 | 9.3 |
| COE-2.5 | 1/2/3/10 | 2.5 mm2 | 24A | 450V | 17.3 | 4.0 | 10.05 | 17.5 | 10.0 |
| COE-4 | 1/2/3/10 | 4 mm2 | 32A | 450V | 21.0 | 4.3 | 12.0 | 19.5 | 10.5 |
| COE-6 | 1/2/3/10 | 6 mm2 | 41A | 500V | 22.5 | 6.1 | 13.5 | 23.3 | 12.8 |
| COE-10 | 1/2/3/10 | 10 mm2 | 57A | 500V | 26.0 | 7.0 | 16.5 | 28.3 | 16.0 |
| COE-16 | 1/2/3/10 | 16 mm2 | 76A | 500V | 31.0 | 10.0 | 22.0 | 33.7 | 18.0 |
| COE-25 | 1 | 25 mm2 | 101A | 500V | 37.8 | 12.0 | -- | 40.5 | 21.5 |
| COE-35 | 1 | 35 mm2 | 125A | 500V | 45.0 | 14.0 | -- | 44.0 | 25.0 |
| Cross Section: |
rated for flexible cable and wire
Φ1 wire entry hole diameter
Φ2 fixing hole diameter
|
Certificates:IMQ: Each size has been tested separately and was given an separate certificate.ISO 9001: Our all manufacturing is carried out under ISO 9001
Why Choose EASE?EASE LTD. is a London based company as well as a leading manufacturer in China for Cable Termination and Accessories. An office and 20,000 square feet warehouse in the UK is vital to the company's efficiency and flexibility. You will enjoy working with EASE because of the advantages as below:
b. Free samples will be provided for evaluation at any time.
c. Guarantee the prompt delivery. Special for customers in the UK and Europe: the same day delivery within UK and 5-day delivery in Europe.
d. OEM is available. And all your information will be confidential.
e. We are One-stop Shop for cable accessories.f. Full experience of dealing with heavy customers and 24-hours customer service.If you are frustrated that your current supplier of electrical accessories doesn't seem to be giving the category their full attention, is frequently out of stock, or offers substandard products, give us a call. Let's discuss how EASE Ltd. can increase your sales and margins!Your satisfaction is our ultimate goal!

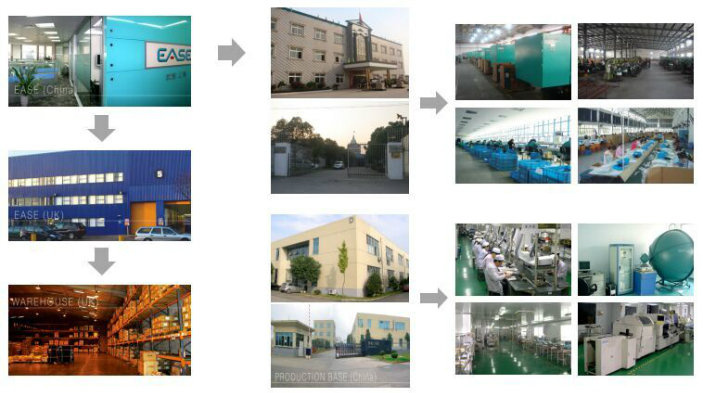

EASE Ltd. FACILITIES
OUR SERIVICE:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM welcome! We can help you to design and produce any your customized products.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. All the products must be double checked before delivery to ensure the quality.
FAQ:
1. Which standard do you have?
A: IMQ approved, the only one manufacture in China who approves this standard.
2. What's the delivery time?
A: Normally, 2-3 weeks after order and payment confirmation. Actually, it will depend on order quality.
3. How to pay?
A: TT & L/C are both acceptable, but TT will be more appreciated. 30% deposit by TT before producing and 70% balance by TT before loading.
4. Package information
A: Inner box and master carton are made accoring to internation standard. Customized package can also be made if needed.
5. How to get samples? Is it free?A: Samples are available. Normally, our samples are free.
For more information, please refer to our website www.easegroup.cn
EASE, founded in 1996, the leading manufacture in Europe and China for Cable & Lighting Accessories. A totally positive business approach and delication to a policy of making outstanding quality from China is key to our continued Success. With Strong focus on products quality, heavy investment has been made in toolingdesign and mouldmaking for our group manufacturers. Strictly raw material control and evaluation guarantees the consistency of our mass production Quality.
All manufacturing is carried out under ISO 9001, with most of them complying with RoHS, REACH and certifiedby UL, VDE and IMQ making EASE products the envy of many competitors.
Predominately addressing the electrical OEM markets, our expertise and specialty fulfill the needs of those companies Who recognise the benefits of outsourcing products from hassle-free one-stop supplier' S service, leaving them to focus on their core business. With our comprehensive quality control systems, EASE ensures the consistency of all OEM Production from container to container shipments for many years.
The UK 85, 000 square feet warehouse is vital to the company' S efficiency and flexibility. The integrated logistic force Behind EASE combined with dedicated staff allowsthe Company to provide the fastest possible responses to the Customers ever changing needs in the UK and across Europe.
The Company' S ability to deliver on its motto, "European Quality, Chinese Price" has gained itself an excellent reputation in a broad spectrum of industries, and has become an approved supplier to many leading international companies in the UK, Europe and America. The company continues to move forward with an ever-increasingportfolio of high quality Electrical, lighting and LED product lines, with the aim to be an ultimate single source for our long-term business Partners and all new customers.
