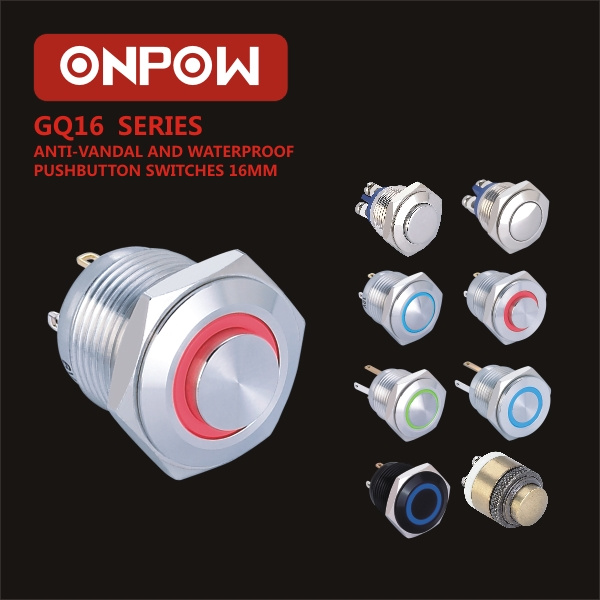

Onpow Pushbutton Switch (GQ16 series, CCC, CE, RoHS)

Name: Onpow Pushbutton Switch (GQ16 series, CCC, CE, RoHS)
Brand: all-electronics-online.com
SKU: 753262945
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	US $ 2.55-2.9/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Part number:GQ16PF-10D/J/LED color/LED voltage/S

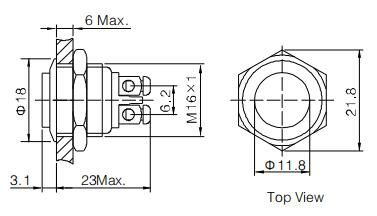

Size: Ø 16mm
Switch Rating: 2A/36VDC
Front shape: Super flat head+Flat actuator
Contact configuration: 1NO
Operation type: Momentary
Dot illuminated
LED color: Red (other options: Blue, Green, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
Crust material: Stainless steel (S) / Aluminium Alloy Black anodized (A)
Grades: IP65 and IK08

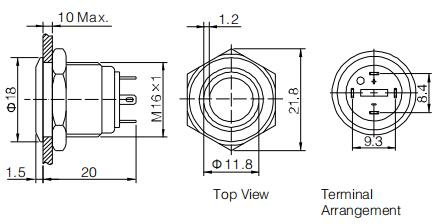

Terminal type: Pin terminal
Approval:CE CCC RoHS Compliant

Pls contact us for BEST PRICE!!

Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
       2. Different metal body color can be made, like Red, Green,   Yellow, Blue, White, Oran ge, Golden.
       3.Special design for big diameter up to 35mm or small diameter to 8mm.
       4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
       5.Other special requirement pls contact Mr. Puma (International trade manager)

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    //  Fax: +86-577-62623304
Website: www.onpow.com

Work time: 8:00-11:30  13:00-17:30(Except Sunday)

Prod Model:	Pushbutton Switch
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	16mm
Switch Rating:	2A/36VDC
Contact Configuration:	1no
Grades:	IP65 and Ik08
Type:	Normal Open
Usage:	Check Button
Number Of Switch:	Normal Open
Structure:	1no
Kind:	1no
Contact Type:	Push on
Detection Method:	Push
Brand:	Onpow

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.

Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.

Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
