Operation Instruction M-208d Fingerprint Access

Name: Operation Instruction M-208d Fingerprint Access
Brand: all-electronics-online.com
SKU: 695925632
Availability: InStock
Rating: 5 (117 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	M-208D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	Two-Wires
Standard:	Standard
Application:	Warehouse
Size:	118 Type
Certification:	CE

Product Description

Overview
1. Strictly follow the national security product standard .Suitable for the

entrances and exits of office, factory, hotel, school, etc.

2. Adopting RS485 or TCP/IP carries out networking. USB flash drive

upload/download is available.

3.Anti-dismantlement alarm, threatens alarm, unlock illegally alarm, not

block alarm are available.

4. Fingerprint / Card / Password / Fingerprint + Card / Fingerprint +

Password / Card + Password /Fingerprint +Card+ Password

identification modes are all available.

5. RIMS software for managing the user information and attendance records
Personnel Management

In normal working state, press the (MENU) button to access the Menu directly if no

administrator is registered.Press the scroll down button to view the menus. If (Enroll)

is selected,press the (OK) Button to access level-2 menu.(Enroll) consists of five level-2

menus, which are User,(Manager),(Delete)(Download) and (Alllog Delete)

User Register

Seven modes are available for the validation of the device:Fingerprint,password,

Card No.,Card+fingerprint,card+password,fingerprint+password,card+fingerprint+

password.

When the user register,each person has only one exclusive (Enroll ID),and the number

must be corresponding to he Enroll ID in the attendance management software;each

(Enroll ID) can register up to three fingerprints, one sensor card Number and one password.

Fingerprint Register

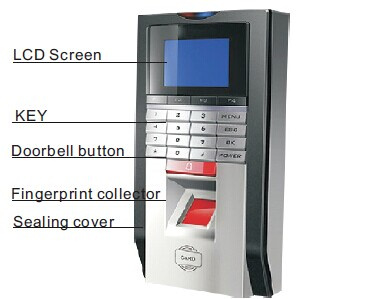

The normal working interface of the device is shown below:

Step of registering fingerprint:

In the normal working state, press the (MENU) button to access (MENU)------(Enroll)----

User-----(Fingerprint)-----(New Enroll)------Input Enroll ID-----Press same finger for three

times----Save-----Exit.

Password Register

Press the (Menu) button to access the Menu----(Enroll)-----User

Select (Password) and press the (OK) Button

Press the (OK) button again to confirm and set password for the new Enroll ID.

Input he Enroll ID of certain personnel and press the (OK) Button

Note: The password contains up to four digits.

Input the password and press the (OK) button to display (NEW ENROLL),PWD In and confirm
