Optical Cross Connection Cabinet (GXF53B)

Name: Optical Cross Connection Cabinet (GXF53B)
Brand: all-electronics-online.com
SKU: 721952735
Availability: InStock
Rating: 4.4 (136 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,FCA
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

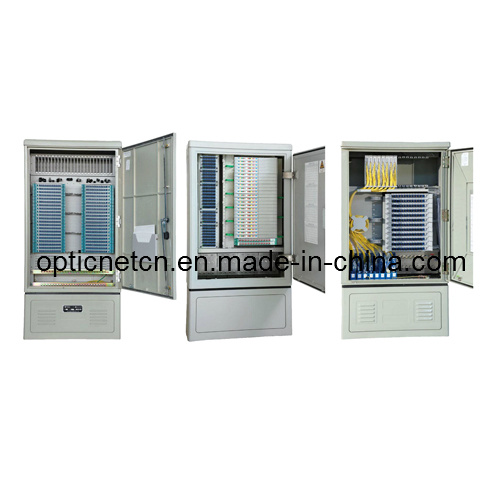

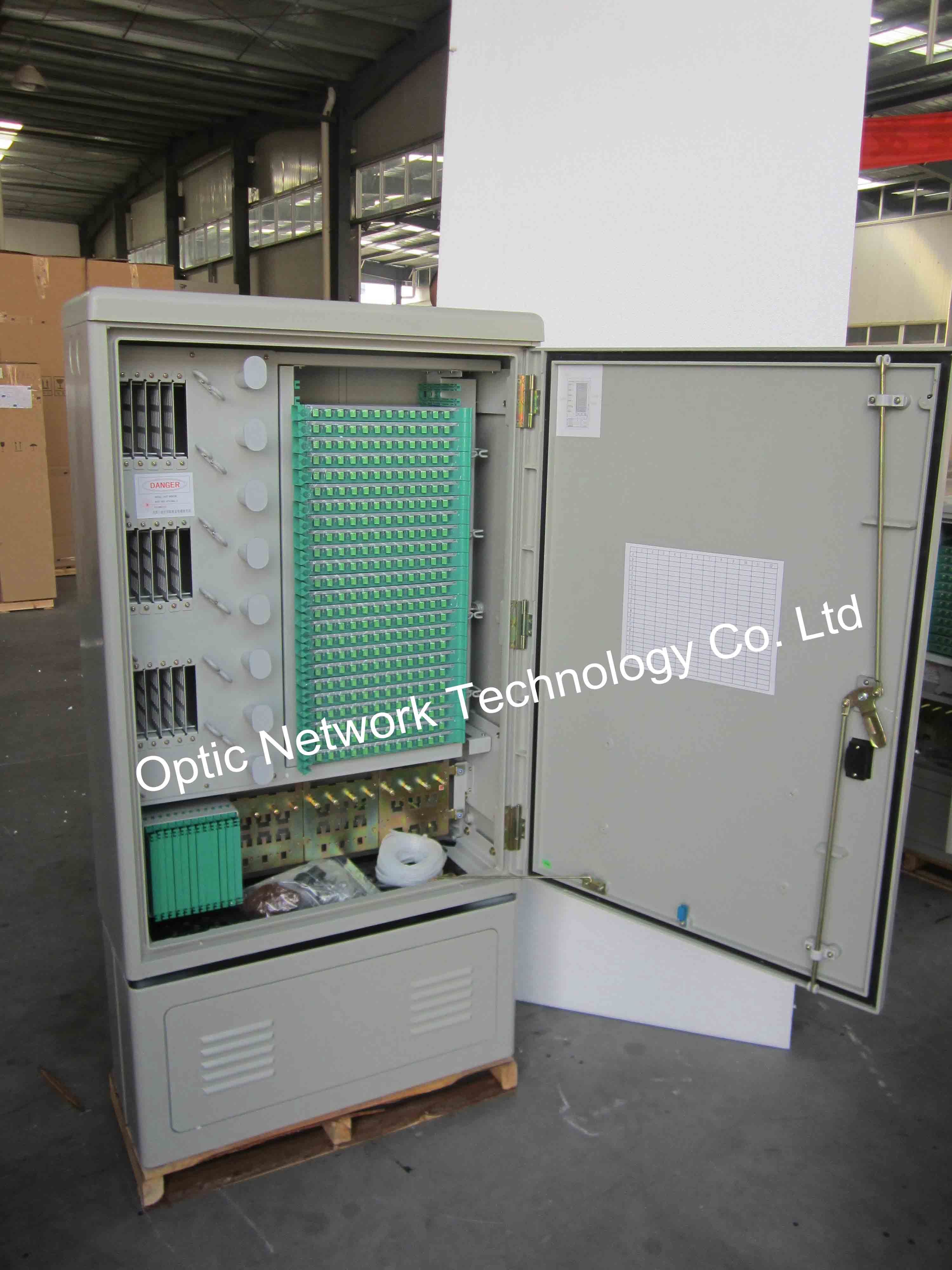

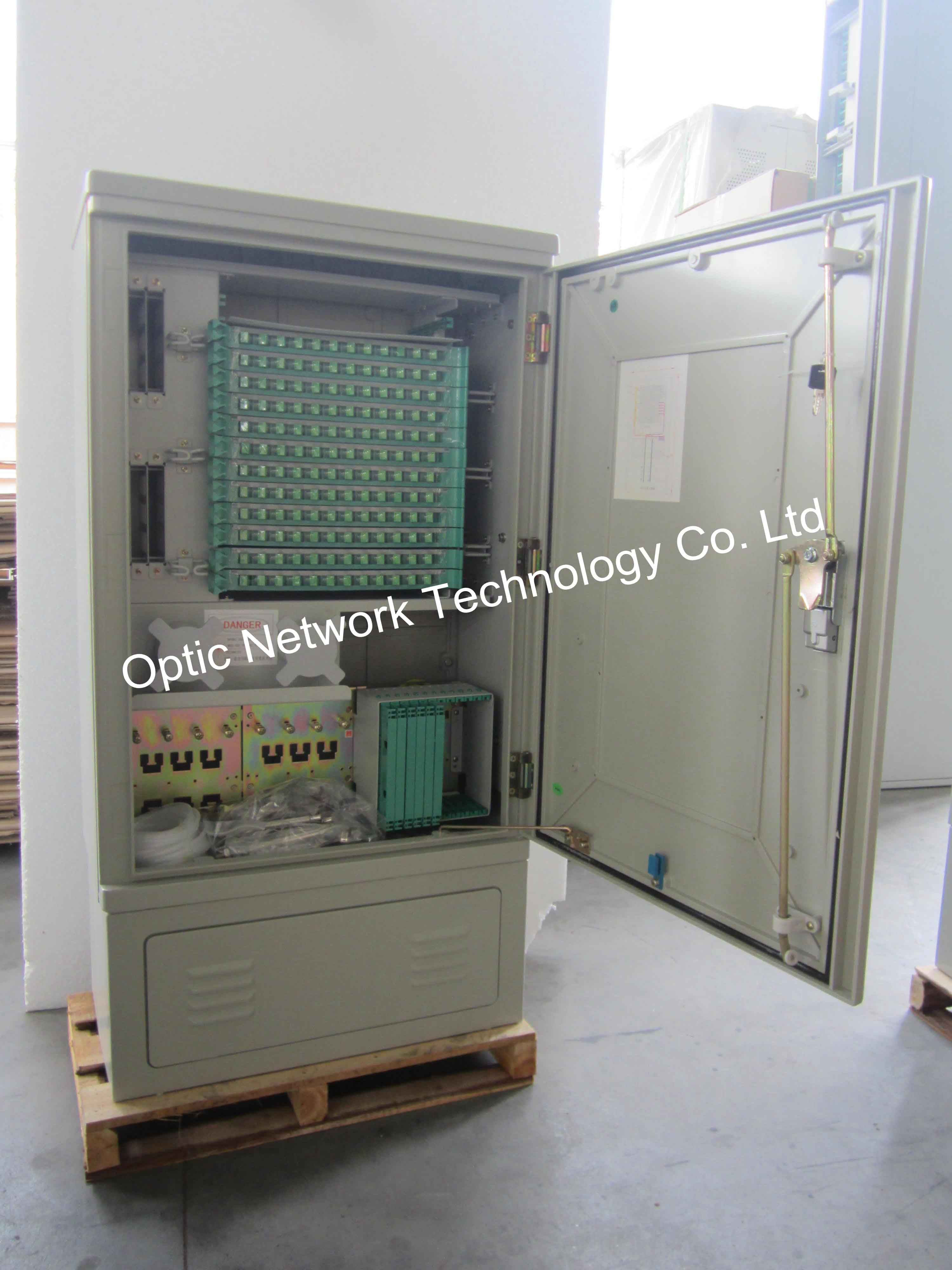

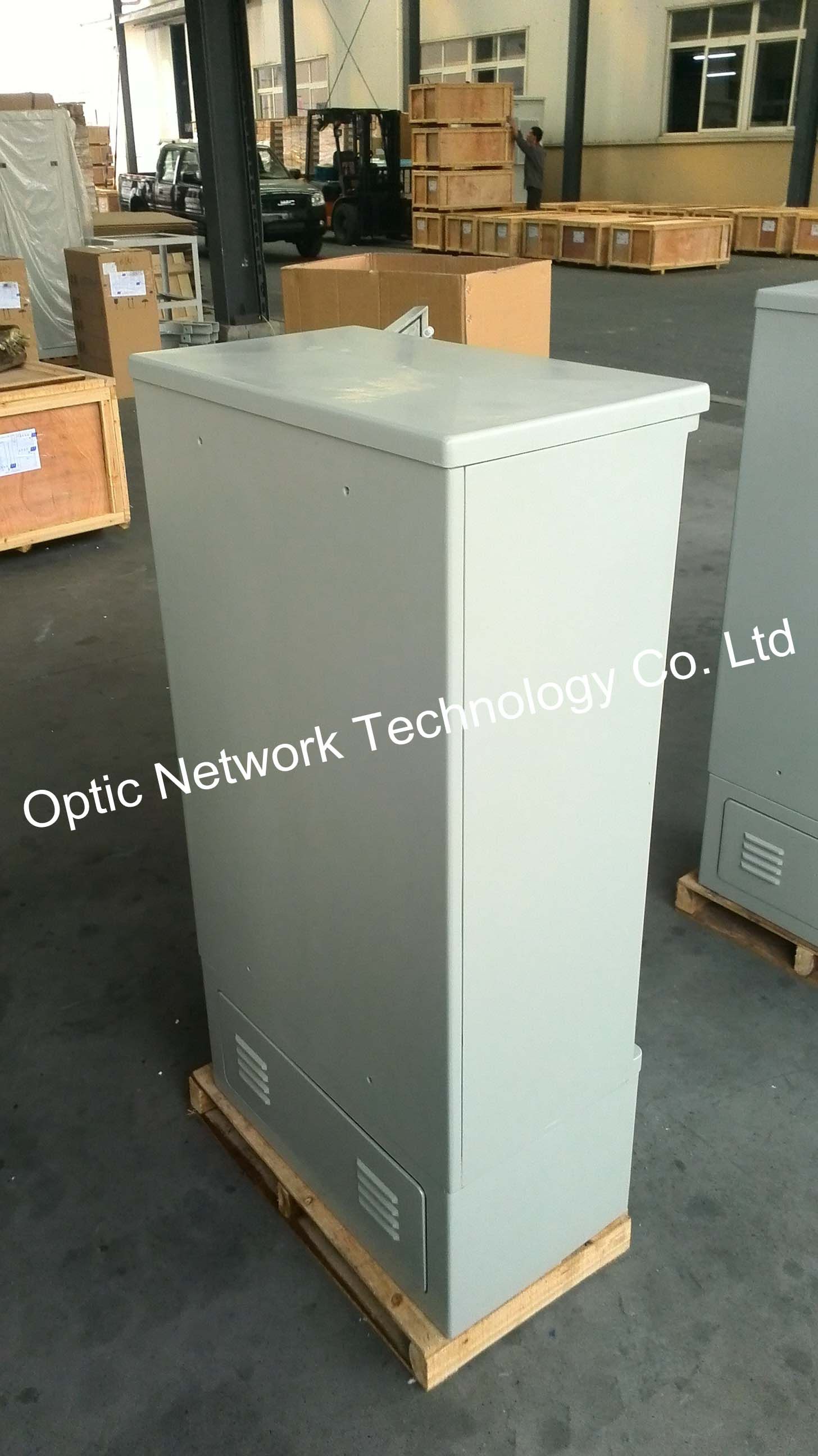

GXF53B Optical Cross Connection Cabinet
Optical cross connection cabinet is used to achieve connection and grooming of optical cable. It is mainly suitable for optical cross-connecting points between optical transmission network, optical transmission equipment and access network for the fiber subscribers.

Its main features:
- Protection level (comply with IEC criterion): IP55
- With SMC cabinet body and stainless steel parts inside. It is heat-isolated, dust and water-proof;
- Configured with 19" standard fiber splitting unit;
- Clear cabling route, easy and convenient for on-site configuration, expansion and maintenance.

Usually, optical cross-connection cabinets are used as optical distribution points to cover 200-500 subscribers in an area after being installed with optical splitters and splicing & distribution units.

Wanma provides a complete series of optical cable cross-connection cabinets with rapid customizable services available for ODN construction in various application scenarios.

Model	Spec		Capacity (F)
Model	Material	Size HWD(mm)	Capacity (F)
GXF53A-144	SUS304	1160600355	144
GXF53B-144	SMC	1035556310	144
GXF53A-288	SUS304	1460780355	288
GXF53B-288	SMC	1450750320	288
GXF53A-576	SUS304	1460780620	576
GXF53B-576	SMC	1590750620 or 1450750540	576

Prod Model:	GXF53B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	SMC
Size HWD(Mm):	1035556310mm
Capacity (F):	144 / 288 / 576
