Optical Distribution Frame (ODF)

Name: Optical Distribution Frame (ODF)
Brand: all-electronics-online.com
SKU: 744787325
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,FCA
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPX29B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions (HWD) (mm):	2600850300
Max. Capacity (F):	720

Product Description

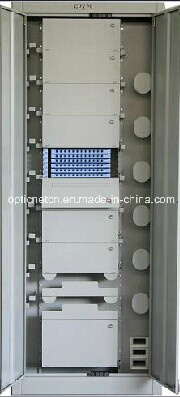

GPX29B Optical Distribution Frame (ODF)
Brief introduction:
GPX29B ODF, open or close design, acts as interface, in fixed or mobile networks, between the exchange and the transmission equipment. GPX29B consists of ONT116 Splice & Distribution Case (SDC, 72F), the mounting frame or cabinet and all the necessary accessories for ODF.

Features:
> Adopting the popular 19" cabinet.
> 72F Splice & Distribution Case (SDC), combing splice and distribution into one unit.
> Stable equipments for fixing, stripping and grounding of the optical fibers.
> Suitable for ribbon and bunchy optical fibers.
> Suitable for installation of FC, SC and ST adaptors.
> Optical fibers, fiber optic pigtails and patch cords are separate, without disturbing each other.

Technical specification:
> Connectors loss≤0.5dB
> Return loss: FC/PC ≥ 40 dB, FC/UPC≥ 50 dB, FC/APC ≥ 60 dB
> Connector life span ≥ 1000 times
> Insulation resistance ≥ 1000MΩ/500V (DC)
> Dielectric strength ≥3000V (DC) /1min, no spark-over and no flying arc.

Model	Dimensions (H×W×D) (mm)	Max. Capacity (F)
GPX29B-26	2600×850×300	720
GPX29B-22	2200×850×300	576
GPX29B-20	2000×850×300	504
GPX29K-22	2200×300×300	72/96
ONT-116-4	115×335×200	48
ONT-116-6	176×430×250	72

Optic Network Technology Co. Ltd. Is one of the high-tech companies, who is specialized in developing, manufacturing, selling and serving telecommunication-level products.

We have several branches, offering a wide range of the products, such as Fiber Optic Splice Closure, Fiber Optic Termination Box, rack mounting ODF, wall mounting ODF, optical cross cabinet as well as passive components, such as patchcord, pigtail, optical splitter, attenuator, DWDM/CWDM/WDM, etc. One of the divisions also covers fiber optic testing equipment such as Optical Power Meter, Optical Light Source, Fiber Identifier, OTDR, Visual Fault Locator, etc.

With the continuing rapid development of Internet, new Internet service which continuously increase needs of bandwidth of Internet access, our company FTTX solutions adopt independent R&D Optical Link Service products. We have taken full consideration of requirement in different operating environment by offering a range so f OLT, ONU, etc. GEPON products for customers various needs. Our FTTX products also include FTTX FOSC with splitter mounted, FTTX box,

MDU splitter terminal, EPON/GEPON broadband data integration cabinet.

Our company have consistent quality, and our QC team monitor the manufacturing process and inspect all the products before shipment. Our products have been exported to North America, South America, East Europe and West Europe, Middle East, Africa and Asia.

"High quality, good service, competitive price, mutual benefit and innovative technology' is our eternal goal. We are confident that we will be your reliable partner in China and Look forward to establishing fruitful business relationship with the customers domestic and overseas
