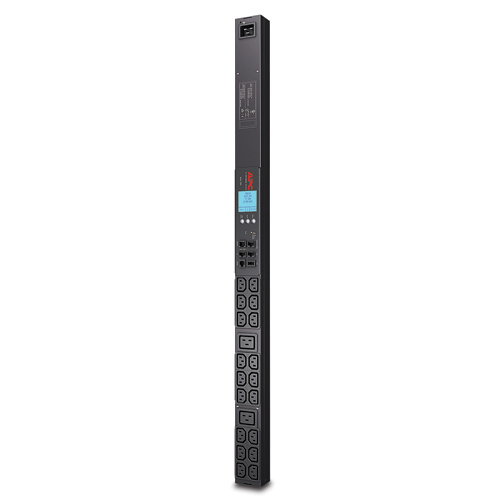

Original APC 16A/230V Rack PDU Ap8858

Prod Model:	AP8858
Grounding:	Standard Grounding
Application:	Industrial
Color:	Black
IP Rating:	IP44
Certification:	UL
Customized:	Non-Customized
Condition:	New
Shell Material:	Plastic

Product Description

Rack PDU 2G, Metered, ZeroU, 20A/208V, 16A/230V, (18) C13 & (2) C19
AP8858
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Output
Nominal Output Voltage
100V , 200V , 208V , 230V
Overload Protection
No
Maximum Total Current Draw
16
Output Connections
(18) IEC 320 C13 (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
Input
Nominal Input Voltage
200V , 208V , 230V
Input frequency
50/60 Hz
Input Connections
IEC-320 C20
Acceptable Input Voltage
100-240VAC
Maximum Input Current
20A
Regulatory Derated Input Current (North America)
16A
Physical
Maximum Height
902mm , 90.2cm
Maximum Width
56mm , 5.6cm
Maximum Depth
44mm , 4.4cm
Net Weight
2.93kg
Shipping weight
4.2kg
Shipping Height
1124mm , 112.4cm
Shipping Width
162mm , 16.2cm
Shipping Depth
107mm , 10.7cm
Color
Black
Environmental
Operating Environment
-5 - 45 °C
Operating Relative Humidity
5 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-25 - 65 °C
Storage Relative Humidity
5 - 95 %
Storage Elevation
0-15000meters
