Ot 10A-1000A Copper Wire Nose Open Terminal Cable Lugs

Name: Ot 10A-1000A Copper Wire Nose Open Terminal Cable Lugs
Brand: all-electronics-online.com
SKU: 840400365
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 0.5-3/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Description

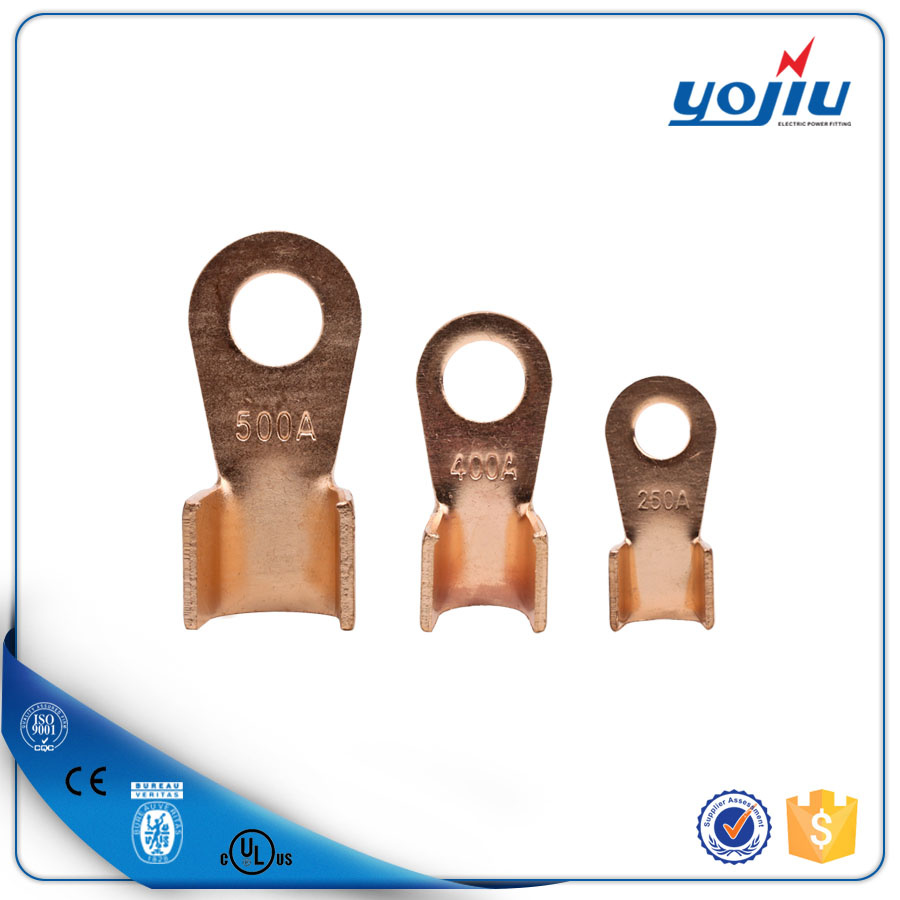

OT Copper cable lugs,terminal lugs

OT Copper Open Nose Connecting Lug is made of copper with high quality.
Suitable for the connection of copper conductors in distribution equipment.

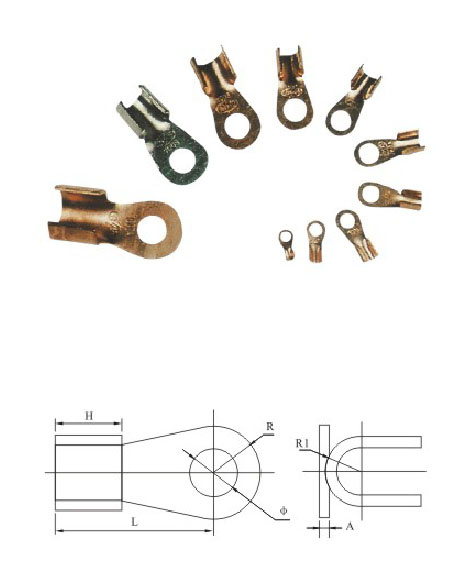

Dimension

Item No.	Cable spec (mm²)	Dimensions(mm)						Note
Item No.	Cable spec (mm²)	φ	H	L	R	R1	A	Note
OT(1)10A	10	5.2	6	14.5	4.5	2	0.8	(1)Can be produced according to customer's drawings.
OT(1)20A	20	6.2	7	17	5.5	2.5	1
OT(1)30A	30	6.2	8.2	19	5.8	3.2	1.2
OT(1)40A	40	6.2	9	19.5	6.2	3.5	1.2
OT(1)50A	50	6.2	9	21.5	6.5	3.5	1.2
OT(1)60A	60	8.2	10	23	7	4	1.4
OT(1)80A	80	8.2	11	25	8	4.5	1.5
OT(1)100A	100	8.2	12	29	8.5	5	1.5
OT(1)150A	150	10.5	12	31	9	5.5	1.6
OT(1)200A	200	10.5	14	33	10	6	1.7
OT(1)250A	250	10.5	15.5	36	10.5	6.5	2
OT(1)300A	300	12.2	16	40	11.5	7	2
OT(1)400A	400	14.2	18	43	13	8	2.2
OT(1)500A	500	14.2	20	46	14.5	8.5	2.4
OT(1)600A	600	16.2	22	50.5	16	10.5	2.8
OT(1)800A	800	18.2	26	61	17.5	12.5	3.2
OT(1)1000A	1000	18.2	33	66	20.5	15.5	3.8

Prod Model:	OT
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original
Crimp Terminal Material:	Copper
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Ot Lug
Name:	Copper Cable Lug
Special:	Good Quality
Certificate:	ISO9001
Samples:	Available
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Character:	Other
Interface Type:	Other
Certification:	Other
Brand:	Yojiu or OEM

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
