Outdoor 40.5kv Vacuum Circuit Breaker with ISO9001
| Price: |
US $ 5000-9000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Exhibition and workshop:

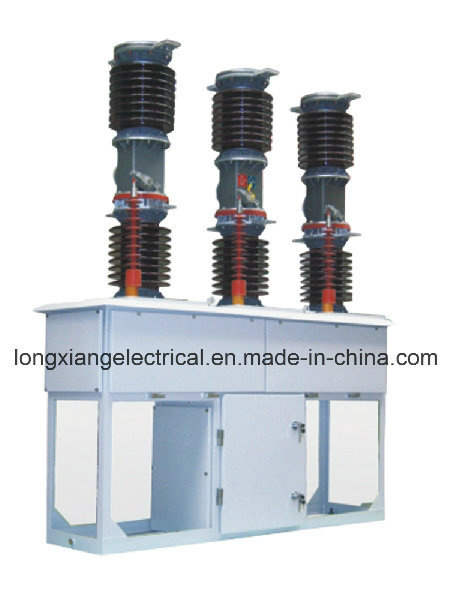

ZW7-40.5
Series of Outdoor Voltage Vacuum Circuit Breaker With Central Operating MechanismGeneral Description
ZW7-40.5 series of outdoor High Voltage Vacuum Circuit Breaker With Central Operating Mechanism are three phase,A.C 50(60) Hz outdoor high voltage distribution equipment with 40.5kV rated voltage ,which can be used to open or close loading current,over-loading current and short-circuit current,it is widely used in rural electrical network and comply with GB1984-2003 standard.

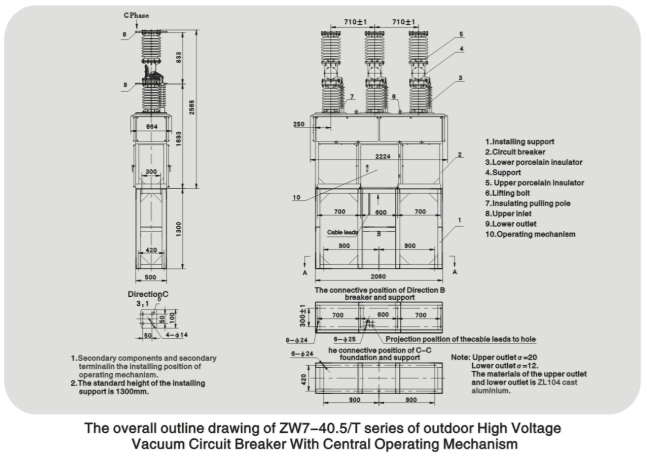

The overall structure of this product adopt porcelain insulator support type,the vacuum interrupter is installed inside the upper insulator,the lower insulator is used for support bottle,three phases are amounted on the same mechanism box,the moving end of vacuum interrupter is connected with operating mechanism through shaft and insulation lever.The operation is easy and convenient.Applying ambient conditions1.Ambient temperature:-30ºC~+40ºC
2.Ambient humidity:the average humidity of a day should be no more than 95%:the average humidity of a month should be no more than 90%.
3.Earthquake intensity:not exceed 8degrees.
4.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa:the average pressure of a month should be no more than 1.8kPa.
5.The height above sea level:1000m.
6.Air filthy degree: III degrees.
7.It should be installed in the places without fire,explosion,series fifth,chemical erosion and violent vibration.
Packaging & Delivery.| Packaging Details | Non-solid wooden case(Stand export package). |
| Delivery Detail | Within 10~15days from the date of receiving signed sales confirmation by both parties. |

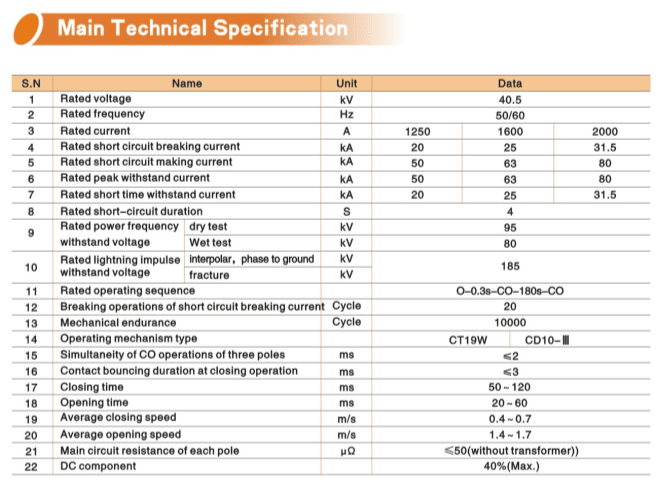

| Prod Model: |
zw7-40.5kv |
| Rated Voltage: |
40.5kv |
| Rated Current: |
1250/1600/2000A |
| Rated Frequency: |
50/60Hz |
| Model Number: |
3 Poles |
| Mechanism: |
Central Operating Mechansim |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Oil-immersed Type |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Company Introduction
General
Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.
Professional management team and extensive market supply
Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.
Reliable technique and continuous improvement of quality control
Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
