Prod Model: |
BJS1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Place Of Origin: |
Zhejiang, China |
Zhejiang, China: |

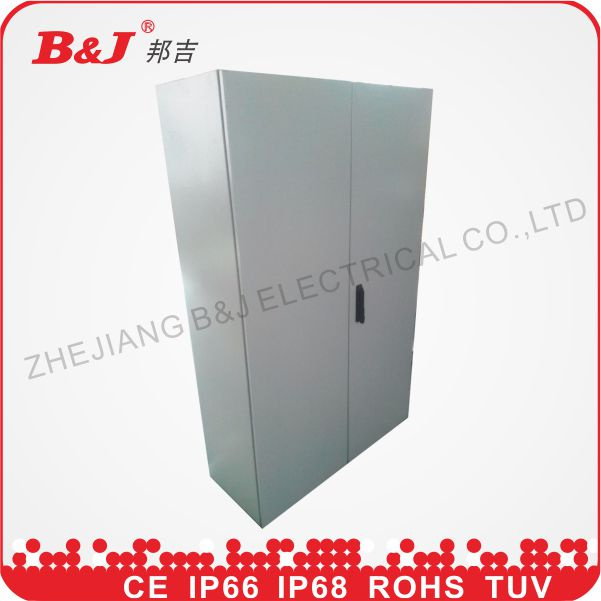

B&J Wall Mounting Metal Enclosure |
Thickness: |
1.2mm, 1.5mm, 2.0mm |
Paint Finish: |
Epoxy Polyester Coating |
Color: |
Ral7035 or Ral7032 |
Lock: |
Available on Request |
Certificate: |
CE, IEC, RoHS, TUV, SGS, IP68, IP66 |
OEM: |
:Offered |
Customised Size: |
Accepted |
Type: |
Power |
Structure: |
Distribution Box |
Size: |
From 200X200X150mm to 1400X1200X300mm |
Product Description
Wall mounting metal enclosure Specifications:
Material:
Enclosure: Sheet steel 1.2mm till size BJS1-88/300 then 1.5mm
Door: Sheet steel 1.2mm till size BJS1-66/300 then 1.5mm
Mounting plate: 2.0mm
Surface finish:
Enclosure and door: Dipcoat-primed, powder-coated in textured Ral7032 or Ral7035 outside
Mounting plate: RAL2000 or galvanized
RAL2000 or galvanized
Protection:
Protection degree: IP66
Impact resistaance: IK10
Supply includes:
Enclosure of all-round solid construction
Gland plate with sealing gasket, door with lock.
Warranty Service:
We 100% Gurantee your Satisfaction
1 Pls report us if there are any problem, we will solve it ASAP.
2 This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; However photos are needed for us to find the factors of damaging them.
3 Shipping and handling fees are not refundable for return or exchange items.
Our Advantages:
1.20 year's OEM & ODM experience
2. Spain Design
3. The color can remain for over 5 years
4. Professional team
Philosophy of the Company:
Excellent design, Excellent make. Excellent service
Company Photo:
NO. | Code no. | HEIGHT | WIDTH | DEEP | Brand |
| | mm | |
| distribution box (BJS1 SERIES) |
1 | BJS1-2020/150 | 200 | 200 | 150 | B& J |
2 | BJS1-2520/150 | 250 | 200 | 150 | B& J |
3 | BJS1-3020/150 | 300 | 200 | 150 | B& J |
4 | BJS1-3020/200 | 300 | 200 | 200 | B& J |
5 | BJS1-3025/150 | 300 | 250 | 150 | B& J |
6 | BJS1-3025/200 | 300 | 250 | 200 | B& J |
7 | BJS1-3025/250 | 300 | 250 | 250 | B& J |
8 | BJS1-3030/150 | 300 | 300 | 150 | B& J |
9 | BJS1-3030/200 | 300 | 300 | 200 | B& J |
10 | BJS1-3030/250 | 300 | 300 | 250 | B& J |
| | | | | |
11 | BJS1-4030/150 | 400 | 300 | 150 | B& J |
12 | BJS1-4030/200 | 400 | 300 | 200 | B& J |
13 | BJS1-4030/250 | 400 | 300 | 250 | B& J |
14 | BJS1-4030/300 | 400 | 300 | 300 | B& J |
15 | BJS1-4040/150 | 400 | 400 | 150 | B& J |
16 | BJS1-4040/200 | 400 | 400 | 200 | B& J |
17 | BJS1-4040/250 | 400 | 400 | 250 | B& J |
18 | BJS1-4040/300 | 400 | 400 | 300 | B& J |
| | | | | |
19 | BJS1-5030/150 | 500 | 300 | 150 | B& J |
20 | BJS1-5030/200 | 500 | 300 | 200 | B& J |
21 | BJS1-5030/250 | 500 | 300 | 250 | B& J |
22 | BJS1-5030/300 | 500 | 300 | 300 | B& J |
23 | BJS1-5040/150 | 500 | 400 | 150 | B& J |
24 | BJS1-5040/200 | 500 | 400 | 200 | B& J |
25 | BJS1-5040/250 | 500 | 400 | 250 | B& J |
26 | BJS1-5040/300 | 500 | 400 | 300 | B& J |
27 | BJS1-5050/150 | 500 | 500 | 150 | B& J |
28 | BJS1-5050/200 | 500 | 500 | 200 | B& J |
29 | BJS1-5050/250 | 500 | 500 | 250 | B& J |
30 | BJS1-5050/300 | 500 | 500 | 300 | B& J |
| | | | | |
31 | BJS1-6040/150 | 600 | 400 | 150 | B& J |
32 | BJS1-6040/200 | 600 | 400 | 200 | B& J |
33 | BJS1-6040/250 | 600 | 400 | 250 | B& J |
34 | BJS1-6040/300 | 600 | 400 | 300 | B& J |
35 | BJS1-6050/150 | 600 | 500 | 150 | B& J |
36 | BJS1-6050/200 | 600 | 500 | 200 | B& J |
37 | BJS1-6050/250 | 600 | 500 | 250 | B& J |
38 | BJS1-6050/300 | 600 | 500 | 300 | B& J |
39 | BJS1-6060/150 | 600 | 600 | 150 | B& J |
40 | BJS1-6060/200 | 600 | 600 | 200 | B& J |
41 | BJS1-6060/250 | 600 | 600 | 250 | B& J |
42 | BJS1-6060/300 | 600 | 600 | 300 | B& J |
43 | BJS1-6060/400 | 600 | 600 | 400 | B& J |
| | | | | |
44 | BJS1-7040/200 | 700 | 400 | 200 | B& J |
45 | BJS1-7040/201 | 700 | 400 | 300 | B& J |
46 | BJS1-7050/150 | 700 | 500 | 150 | B& J |
47 | BJS1-7050/200 | 700 | 500 | 200 | B& J |
48 | BJS1-7050/250 | 700 | 500 | 250 | B& J |
49 | BJS1-7050/300 | 700 | 500 | 300 | B& J |
50 | BJS1-7060/200 | 700 | 600 | 200 | B& J |
51 | BJS1-7060/250 | 700 | 600 | 250 | B& J |
52 | BJS1-7060/300 | 700 | 600 | 300 | B& J |
| | | | | |
53 | BJS1-8060/200 | 800 | 600 | 200 | B& J |
54 | BJS1-8060/250 | 800 | 600 | 250 | B& J |
55 | BJS1-8060/300 | 800 | 600 | 300 | B& J |
56 | BJS1-8080/200 | 800 | 800 | 200 | B& J |
57 | BJS1-8080/250 | 800 | 800 | 250 | B& J |
58 | BJS1-8080/300 | 800 | 800 | 300 | B& J |
59 | BJS1-8080/400 | 800 | 800 | 400 | B& J |
| | | | | |
60 | BJS1-1060/200 | 1000 | 600 | 200 | B& J |
61 | BJS1-1060/250 | 1000 | 600 | 250 | B& J |
62 | BJS1-1060/300 | 1000 | 600 | 300 | B& J |
63 | BJS1-1070/200 | 1000 | 700 | 200 | B& J |
64 | BJS1-1070/250 | 1000 | 700 | 250 | B& J |
65 | BJS1-1080/200 | 1000 | 800 | 200 | B& J |
66 | BJS1-1080/250 | 1000 | 800 | 250 | B& J |
67 | BJS1-1080/300 | 1000 | 800 | 300 | B& J |
68 | BJS1-1010/250 | 1000 | 1000 | 250 | B& J |
69 | BJS1-1010/300 | 1000 | 1000 | 300 | B& J |
70 | BJS1-1010/400 | 1000 | 1000 | 400 | B& J |
| | | | | |
71 | BJS1-1260/200 | 1200 | 600 | 200 | B& J |
72 | BJS1-1260/250 | 1200 | 600 | 250 | B& J |
73 | BJS1-1260/300 | 1200 | 600 | 300 | B& J |
74 | BJS1-1280/200 | 1200 | 800 | 200 | B& J |
75 | BJS1-1280/250 | 1200 | 800 | 250 | B& J |
76 | BJS1-1280/300 | 1200 | 800 | 300 | B& J |
77 | BJS1-1210/250 | 1200 | 1000 | 250 | B& J |
78 | BJS1-1210/300 | 1200 | 1000 | 300 | B& J |
79 | BJS1-1210/400 | 1200 | 1000 | 400 | B& J |
80 | BJS1-1210/300 | 1200 | 1200 | 300 | B& J |
81 | BJS1-1210/400 | 1200 | 1200 | 400 | B& J |
