Outdoor Hv Polymer Silicon Rubber Electric Pin Insulator

Name: Outdoor Hv Polymer Silicon Rubber Electric Pin Insulator
Brand: all-electronics-online.com
SKU: 835856735
Availability: InStock
Rating: 5 (96 reviews)

Price:	US $ 5-25/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Best manufacturers of Outdoor High voltage polymer silicon rubber electric pin insulator with Excellent quality

Product Description

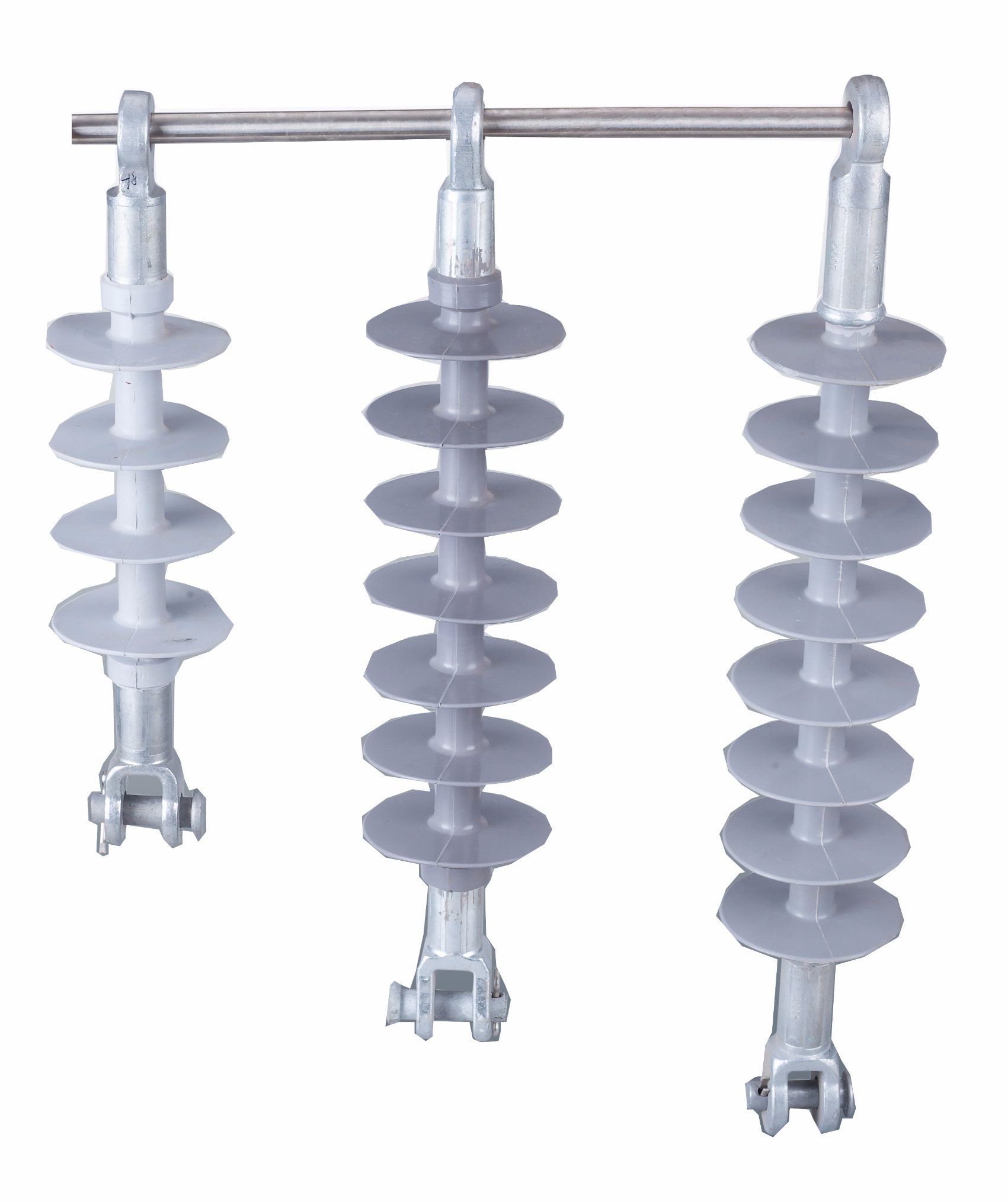

The Polymer Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.

The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key probleminterface electric spark puncture, which would affect the reliability of composite insulator.Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.

This product is reliable structure, can't damage the core rod, and take full advantage of the mechanical strength.

SPECIFICATION

TYPE	RATED VOLTAGE(KV)	RATED MECHANICAL BENDING LOAD(KV)	STRUCTURE HEIGHT(MM)	MIN.CREEPAGE DISTANCELC(MM)	INSULATING DISTANCE(MM)	DIAMETER OF SHED(MM)	LIGHTNING IMPULSE WITHSTAND VOLTAGE(PEAK)	P.F WET WITHST AND VOLTAGE(VIRTUALVALUE)
FPQ-24/4	24	4	335	655	273	146/112	125	60
FPQ-24/6	24	6	310	535	210	120	125	60
FPQ-36/5	36	5	450	950	340	145/115	230	95
FXBW2-12/70UD	12	70	350	360	180	98/88	105	95/42
FXB2-15/70UD	15	70	375	470	200	98/88	105	42
FXB2-24/70UD	24	70	430	680	290	98	150	42
FXB2-28/70UD	28	70	430	680	290	98	230	95
FXB2-33/70UD	33	70	550	720	360	98	230	95
FXB-35/70UD	36	70	570	1000	400	76	230	95
FXBO2-36/70	36	70	650	720	450	98	230	95

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage
electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

Contact Us

Prod Model:	FXBW
Tensile Strength:	70-100kn
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Color:	Grey

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
